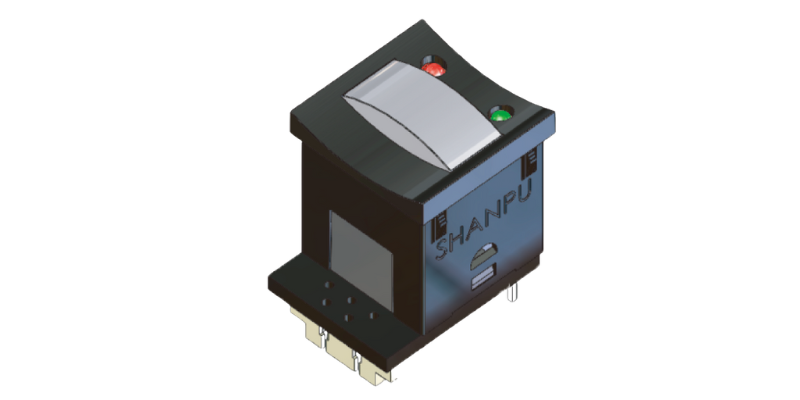

ZSPEH & ZSPEP 面板安裝型按壓按鈕開關
- PCB端子設計
- 堅固的面板安裝
- 緊湊的方形外形
- 可選連接器，接線簡便
- 應用：儀表板、自助服務終端、門禁系統
- 基本規格
- 接點迴路 DPDT
- 額定電壓電流 30V DC @ 100mA
- 開關接腳形式 Through hole(TH)
- 開關按壓行程 1.5mm ± 0.5mm (full stroke); 1.0mm ± 0.5mm (lock stroke)
- 操作力道 250gf ± 100gf (Lock); 150gf ± 100gf (Momentary)
- 機械壽命 10,000 cycles min.
- 防護等級 IP4X
- 照光方式 illuminated
- 材料
- 上蓋/透鏡 Cap: ABS ; Lens: PC(Polycarbonate)
- 作動鈕 POM(Polyoxymethylene)
- 底座/外框 Base: PA(Polyamide) ; Housing: ABS
- 端子 PBS (Phosphor bronze) with Silver plating
ZSPEH-尺寸圖&接點配置&PCB Layout
Without LED
L1 Single LED
L2,L3,L4,L5 Single LED
L6 Single LED
Q：面板安裝開關如何有利於安裝？
答：它們安裝牢固，並可透過通孔端子輕鬆整合到控制面板中。
ZSPEP-尺寸圖 & 接點配置 & PCB Layout & 選配YCW030-A
Recommend add resistor to limited each LED forward current at 20mA
Panel cutting: □14.1mm
Panel thickness: 1.0~1.2mm
Option: Cable: YCW030-A
Cable:UL1571#28AWG
Conductor pitch : 1.25mm
Conductor width : □0.3mm
