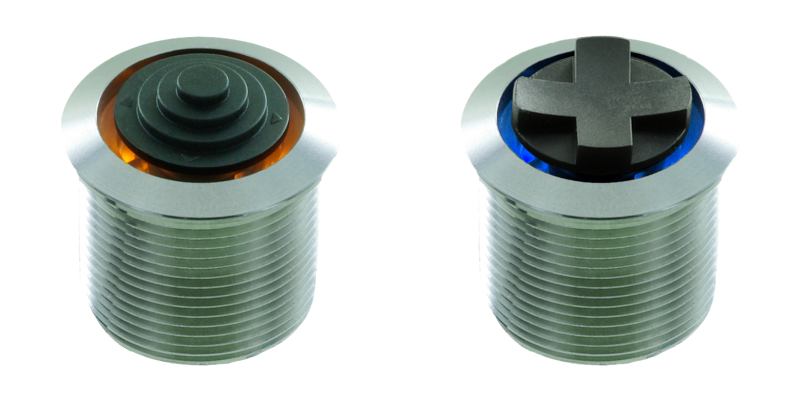

SHANPU series SF19BA Fingertip switch based joysticks with LED lighting 5-ways navigation push button switches module

SHANPU Series SF19BA the 5-ways Navigation push button switches, fingertip switch based joysticks module.panel mounting LED backlight for special design and require.
Application: Audio equipment, industry control panel, 3D printer, residential equipment, Thermostats control, projector, meter control panel, console, instrument, remote control, leaning set…

SF19BA fingertip navigation switches module:
- panel mounting
- 19Ø 5-ways Pushbutton module design
- Fly wire connect
- Tactile feeling
- Individual LED backlight
- Stainless steel (SUS) bezel

Specification:
- Contact rating: 50mA / 12VDC
- Operating Life: 50,000 cycles Min
- Operating Force: center tactile 650gf+/-200gf, 4-direction 250gf+/-100gf
