Push Button Switch is a mechanical switch that completes an electrical circuit when you push the button, and breaks the circuit when you let go (or push it again, depending on the type). Think of it like a doorbell button or a keyboard key. Push Button Switch usually with long operation distance and with latching function.

LED Push Button Switch, also known as an illuminated push-button switch, it is a regular push-button switch that has a built-in LED (Light Emitting Diode), it provides visual feedback. This means you can quickly and easily see the status of the switch or the device it controls, especially in dark environments or on complex control panels.

A Waterproof Push Button Switch is simply a push-button switch that keeps water out. It lets you safely control electronics even when it's wet or humid, without worrying about damage.

Push Button Switch terminal mounting through PCB for soldering. The lead in straight or with buckle pin.
Straight Lead : A straight terminal is a solid pin extends directly from the switch body. It's typically solder connected to PCB in the circuit.
Buckle Pin : Buckle Pin : A buckle pin is a terminal with a bent or folded shape, often resembling a small buckle or clip. This shape allows it to grip or "buckle" onto a corresponding PCB through hole.

Push Button Switch terminal pin with solid pin or buckle hole pin for solder wire or with male connector header, it easy link with extension cord.

Push Button Switch mounting method for small size switch usually mount on PCB, SHANPU develop small size Panel Mount Push Button Switch

A Push Selector Switch is like a Rotary Switch rotating to move contact position. Push Selector Switch switched by pressing rather than rotating. Each time the switch is pressed, the contact moves 1 position.

How the momentary push button switch work?
Assumptions a Push Button Switch electrical circuit is "Push to make" Normally Open - NO, no matter is SPST or SPDT contact circuit are common type switch, a Momentary Push Button Switch the circuit is open (off) when the button isn't pressed and it closes (on) when pressed or holding it down. As soon as you release the button, it automatically back to original position (free position), and the electrical circuit returns to default state.

Assumptions a Push Button Switch electrical circuit is "Push to make" Normally Open - NO at free position, it is common type switch, a Latching Push Button, the electronical circuit is closes (on) when pressed once the electrical circuit keep in same status even you release the button and it automatically back to original position (free position) and the electronical circuit is open (off) when you pressed button again.

Tactile Switch usually with short operation travel distance, with SPST momentary push on contact circuit, SHANPU Tact Switch with several caps, for the cap you can refer to our "Switch Accessories & Smart Switch Cap & Rotary Knob" for more info.

LED Tactile Switch that is Tactile Switch built-in LED for indicator the status and easy to find Tact Switch in dark environment. The LED can be single color up to RGB or RGB plus LED driver IC in one wire control. Several Tact Keyswitch cap available in our Smart Cap.

A Waterproof Tactile Switch keeps water or liquids from getting inside. This ensures Waterproof Tact Switch always works correctly and safely.

Through Hole Tactile Switch terminal mounting through PCB for soldering. The lead in straight or with buckle pin, it's terminal pins are a solid pin mount through PCB hole ( in Through Hole (TH) lead) for wave soldering or hand soldering.

SHANPU offer low profile tactile switch with SMD(surface mount device) version also, the lead extending outwards in a "gull-wing" shape. For place and paste on surface PCB pad.

Tactile Switch Terminal pin with solid pin for solder wire or board to wire connector header, it easy link with extension cord.

Tactile (Tact) Switch mounting method for small size switch usually mount on PCB, SHANPU develop small size Panel Mount Tactile Switch, it easy mount on front panel to use no need PCB.

What is Rotary selector switch?
Rotary switch is an electrical switch that changes its electrical contact circuit state (on and off) typically rotated a knob or dial to different positions to select which status for the specifitc function. the multiple positions allow you to choose between various settings, speeds, inputs or molds.
Who manufacturing Rotary switch in Taiwan?
SHANPU is a switch manufacturer the factory locat in Taiwna since 1975, SHANPU manke several kind of rotary switch, rotary selector switch, Rotary encoder switch, display with Rotary and push switch.

What is Coded Rotary Switch & Rotary DIP Switch ?
Coded Rotary Switch is a rotary switch that outputs a specific digital code depending on its rotated position, the key characteristics that distinguish it from a general Rotary Switch.
The specific digital code like BCD (Binary Coded Decimal) Real code, BCD complementary code, BCD-Gray, Hexadecimal, BCH, BCO

What is Rotary Push Button Switch ?
Rotary push-button switch combination of two different switch types into a single, integrated : a Rotary Switch and a push-button switch.

What is LED Rotary Push Button Switch ?
LED Rotary push-button switch combination of two different switch types and LED into a single, integrated : a Rotary Switch and a push-button switch and LED for background lighting.

SMD Rotary switch which terminal is a type of surface-mount, the lead extending outwards in a "gull-wing" shape. for place and paste on the surface of print circuit board pad.

Rotary encoder switch includes a SPST-ON push-button function. SHANPU made rotary encoder include waterproof, LED background illuminated.

Most Rotary Encoder Push Button Switch not waterproof that limited the application. SHANPU made Waterproof Rotary Encoder Push Button Switch also add LED backlight illuminated.

Display Rotary Encoder Push Button switch is kind of HMI (Human-Machine Interface) device, SHANPU manufacturing it combin Ｄisplay screen, rotary encoder switch and a momentary push button switch into single device, it provide input encoder switch and Push-Button switch control machine and output display screen for show the equipment status.

InfraRed (IR) sensor Switch that is an Electronic Sensor Switch integrate Infra rad sensors and control circuits and are touchless operated by Proximity or waving a hand. most used on Automatic doors open switch. IR Sensor come from a IR LED (Light Emitting Diode) and IR redeiver a photodiode or phototransistor.

Piezo sensor Push button switch that is a Electronic Sensor Switch integrate piezo sensor and control circuits, the piezo sensor is kind of pressure sensor for detecting pressure force and are operated by pressing the button it like regular Push-Button switch but without machinal moving part.

Capacitive Sensor Touch Switches is an Electronic Sensor Switch too, that not like InfraRed (IR) sensor Switch touchless operated by Proximity or waving a hand and not like Piezo sensor Push button switch have to pressing the button, capacitive sensor touch switch operated by proximity touch the button.

Photo interrupter sensor display encoder switch that combine display and optical sensor encoder into single device, the encoder electrical signals pulses are generated by photo interrupter sensor when you rotarn the knob. optical photo-interrupter offer long operation life then machinal moving contact.

Push Button switch with Display that combine a Push Button Switch and a display into single unit. the momentary push button switch provide input signal to control the machine the display show equipment status. that can make smart keyboard on POS system to reduce the number of button switches.

5-way Navigation Button switch , it integrated with up, down, right, left and center 5 directional way switches and the button can be Push Button switches or Tactile switches also available with LED lighting backlight illumination.

Multiway push button switch , it integrated with more or less than 5 directional way switches and the button can be Push Button switches or Tactile switches also available with LED backlight illumination. Dustproof and waterproof or splashproof design.

Waterproof multi-way switch, this multiway push button switch has Waterproof or Splash-proof in front of panel design for wet environment.

LED multiway push button switch, no matter 5-way navigation push button switch, more or less than 5-direction button switch, SHANPU produce LED inside keypad switch, the LED light through top cap laser engrave symbol and it available customize.

small size joystick switch control by thumb or large size joystick, joystick and navigation 5-way push button switch are the same idea switch component, the different is operat by "stick shaft" or "switch button cap"

Warning with Buzzer Alarm the sound pressure level usually over 80 dB, the sound tone in Constant sound or pulse. Piezoelectric buzzers are more popular using in small size buzzer. the passive (Self Drive, with sources) style is easy for general application.

Waterproof Buzzer Alarm that design buzzer keeps water or liquids from getting inside. This ensures Waterproof buzzer alarm always works correctly and safely.

LED indicator that SHANPU produce ring LED indicator the center hole for rotary encoder or rotary Potentiometer (Pot.) or VR Variable Resistor. and LED indicator build-in Tactile Switch, Push Button Switch, Piezo buzzer alarm. LED Light Emitting Diode with lower power consumption, long operation life and fast respones, those why using LED develop LED indicator.

Waterproof Toggle Switch is a type of Mechanical action switch, it can be momentary or latching. the main point is Waterproof, the water-proof toggle switch against of water or liquid get into mechanical contact structure and front panel mounting hole, make switch works correctly and safely.

Power Toggle Switch is a type toggle switch that is specifically designed and rated to switching the electrical current and voltage required to the main power

Waterproof Rocker Switch is a type of Mechanical action switch, it can be momentary or latching. the main point is Waterproof, the water-proof Rocker switch against of water or liquid get into mechanical contact structure and front panel mounting hole, make switch works correctly and safely.

Power Rocker Switch is a type of Rocker switch that is specifically designed and rated to switching the electrical current and voltage required to the main power. Varies of Rocker switch not only for electrical signal switching but also with high current rating ability power switching, well know wall lighting switches we using every day at home.

LED Rocker Switch is a type of Rocker switch that is specifically designed and rated to switching the electrical circuit with LED indicator to pointing out the position you moved or present the equipment's status on the seesaw cap.

Push Button switch & Tactile switch adaptor allow button switches add different shape, different size caps from SHANPU's "Smart Cap" system.

6 Smart Cap is one of "Smart Cap" the caps meet button switch with 6mm*6mm stem. as know as SHANPU manufacturing tactile switch and push button switch the series SPJ, SPH2, SPF, ZSPE6, ZLS67, ZLS70 button switch, more than 30 shape key switch caps match your control panel structure and User Interface,UI design.

9 Smart Cap is one of "Smart Cap" the caps meet button switch with 6mm*6mm stem. as know as SHANPU manufacturing tactile switch and push button switch the series SPD,ZSPE9, ZLS67+YCB012, ZLS70+YCB012 button switch, more than 20 shape key switch caps match your control panel structure and User Interface,UI design.

11.5 Smart Cap is one of "Smart Cap" the caps meet button switch with 6mm*6mm stem. as know as SHANPU manufacturing tactile switch and push button switch the series SPDG, SPCG, SPLG button switch, more than 10 shape key switch caps match your control panel structure and User Interface,UI design.

12 Smart Cap is one of "Smart Cap" the caps meet button switch with 6mm*6mm stem. as know as SHANPU manufacturing tactile switch and push button switch the series SPD2, SPL12 button switch, more than 10 shape key switch caps match your control panel structure and User Interface,UI design.

SHANPU Provide T18 knob that meet shaft size dia. 6mm, shape 18 teeth Rotary encoder switches, Rotary selector, Rotary Variable resistor、Rotart Variable potentiometer. T18 knob available light through when you using illumination light pip shaft or looking our looking SHANPU SRS5 rotary switch.

Multifunction test tweezers, illuminated tweezers designed for LED light test, electrical conductivity tester, terminal conductivity tester, lcr metter tweezers, SMD LED tweezers.

SPD5K - Modular five-button LED navigation switch / 12VDC 50mA / SP5T / Connector / Individual terminal pin-out
SPD5K2 - Modular five-button LED navigation switch / 12VDC 50mA / SP5T / Connector / Common bus terminal pin-out

SNA1 - Modular five buttons LED navigation switch / 12VDC 50mA / SP5T / FFC
SNA3 - Modular three buttons LED navigation switch / 12VDC 50mA / SP3T / Connector

Illuminated 5 keys rectangle navigation switches provide cap painting and laser engraving service.
12V DC 50mA / SP5T / Panel mounting type / PCB layout type

EA / EB - Iluminated Rotay encoder & tactile metal switches painting cap service 10V DC 1mA / SPST / Encoder Connector /0.3mm / 12pulses,360°
EC - Illuminated Tactile & Rotary Switches Series
BA - Iluminated wateproof 5 key Navigation meral switches12V DC 50mA / SP5T Connector / 0.5mm
BB - Illuminated waterproof 5 key Navigation metal switches 12V DC 50mA / SP5T Cable / 0.5mm

BA - Ring Illuminated 5 way thumb waterproof metal switches 12V DC 50mA / SP5T Connector / 0.4mm
EA - Ring Illuminated 5 way thumb Multi-function switches 12V DC 50mA / SP5T Connector / 0.4mm

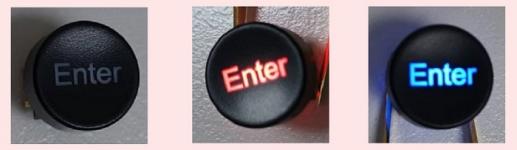

Push select( OFF → ON → ON → ON)snap-in switches painting cap service 30V DC 1A Connector / 1.5mm

BA - Illuminated waterproof Rotary encoder & tactile switches 5V DC / SPST(push) / Rotary Encoder / Connector / 0.5mm / 24 pulses,360°
BB - Illuminated Capacitive Touch switches, RGB LED, 5V or 6~24 V DC, Output type: NPN / Connector, Acivated by the touch of a finger
WA - Illuminated waterproof 5 key Navigation stainless#316 switches 12V DC 50mA / SP5T / FFC

BA - Illuminated wateproof 5 key Navigatio metal switches 12V DC 50mA / SP5T Connector / 0.5mm
BB - Piezoelectric Buzzer Indicator Waterproof metal 25mA Max. at 12VDC Solder Lug
BC - Illuminated wateproof 6 key Navigation metal switches 12V DC 50mA Connector / 0.5mm
BF - Contacless Infrared Sensor Switch 7~24 VDC / Two leds Relay or Photo Coupler type Connector

SHANPU’s ST-10B test tweezer tool is specifically designed for quick and easy testing of small electronic components such as resistance, switches, LEDs, cables…etc.

Rotary encoder with 5 way Navigation metal switches 10V DC 1 mA / SP5T / Encoder Connector / 0.3mm / 12pulses,360°

BA - 9 Keys Programmable illuminated Navigation switches and laser egraving cap service SPI / Connector / 0.5mm
BD - Emergency stop illuminated switches Buzzer / RGB LED 0.75A / 250V AC ; 1A / 30V DC Cable / 4.5mm

Illuminated Rotary encoder & tactile switches and laser engraving cap service 10V DC 1mA / SPST / Encoder DIP / 0.3mm / 12 pulses,360°

24 LED Ring type indicator Right and center hollow housing are designed suit for rotary switch, encoder or VR
20mA / 2~3.7V DIP

Miniature illuminated pushbutton switches Applicable smart cap, long operating life
12VDC 50mA / SPST / DIP / 0.2 / 0.4 / 1.0mm

Miniature illuminated right angle Tactile switches
Applicable smart cap, long operating life
12VDC 50mA / SPST / DIP / SMD / 0.3mm

Miniature illuminated Tactile switches Applicable smart cap, Square or round shell are available
12VDC 50mA / SPST / DIP / SMD / 0.3mm

SHANPU’s ZSPE push button switch can carry higher current and voltage, and the switch contact is DPDT. ZSPEP contains connector, which can be quickly installed on the panel, saving development costs.

Miniature illuminated Tactile switches Applicable smart cap / RGB or RGB(IC)LED 12V DC 50mA / SPST DIP / SMD 0.2mm

Miniature illuminated Tactile switches Bright LEDs of single, Dual or RGB colors available, long operating life
12VDC 50mA / SPST / DIP / SMD / 0.3mm

Miniature illuminated Tactile switches RGB LED, Wide size, Full face illumination The same height as SPD0.
12VDC 50mA / SPST / SMD / 0.5mm

Large window, bright illuminated Tactile switches
Applicable smart cap, long operating life
12VDC 50mA / SPST / DIP / 0.3mm

SHANPU’s SPC push button can connect 3A high current and 125&250V AC high voltage, you can choose alternate&lock or momentary&unlock function, DPDT to increase the control range of your equipment. The SPCGS is panel quick-install version also has the option of a protective cover.

1 & 2 - Silent push button switches, 4.5mm long travel, gold plated contacts long operating life, Bright LEDs of Single, Dual or RGB colors available.
12VDC 100mA / SPST / SIP / 4.5mm / 3.5mm
3 & 4 & 5- Silent push button switches, 4.5mm long travel, Double gold plated contacts long operating life, Bright LEDs of Single, Dual or RGB colors available
48VDC 50mA / SPST / DIP / Soldering / 4.5mm

Classic Piano key switches with LED and different cap size colors,Momentary/ Alternate, gold plating contact and long operating life
24VDC 12mA / SPDT / SPDT*2 / DIP / 2.5mm

Miniature illuminated pushbutton switches two view indicator Tactile, Momentary, Alternate
12VDC 50mA / SPST / DPDT / DIP / 0.3 / 2.5mm

Miniature Illuminated waterproof tactile switches,easy to install into the panel,long operating life
12VDC 50mA / SPST / DIP / Soldering / 0.3mm

Classic rotary switches,gold plated contact Can be connected into a multi-deck switch
150VDC / AC 130 mA / 1~6 Pole,12 Position / DIP / 30°

Shanpu’s SLB2 can simplify the number of switches on your control panel. LCD display panel can output the status of the device, and the optical rotary encoder and push button switch are used as input functions.
SLB3 have more than SLB2, RGB LED backlight and CAN BUS communication.

Push button switch integrated with OLED display, the SLC series
smooth silent push button with click feedback, high operation life up to 5,000,000 cycle time. 4.5mm travel distance.
OLED screen with 0.42" resolution 72*40 pixels, I2C interface protocol.
application for industrial equipment, pro-audio/video, medical equipment.

How can a touchscreen provide the operation and tactile feedback of a physical rotary knob?
Let me tell you, SHANPU’s SFC touch rotary knob can achieve that!
The SFC touch rotary knob utilizes advanced touch technology to simulate the tactile feel and feedback of a physical rotary knob on the touchscreen. Users can directly touch the touch panel that underneath the rotary knob and perform rotation operations while experiencing a similar tactile sensation and feedback as that of a physical rotary switch.

ZM18 has 3 operation function Push-ON, Push-OFF or Push-ON Lock、Dia 7mm panel mounting hole

Application:
●Push to start button
●Reset button

Sealed power Toggle Switch, IP68 waterproof,
Application on heavy duty vehicle control, crane remote control, industrial joystick
UL&ENEC Approved IP68 Sealed or Un-sealed
Toggle Switch, up to 20A 125/250 V.
Selection plastic or brass bat type actuator; 1, 2
& 4 pole, 2 or 3 positions, maintained and
momentary action.

Rocker switch, IP68 waterproof, snap-in type, ON-OFF. It can applicate on automatic unmanned truck, packaging machine.
Aesthetic IP68 ZMR2 Series Patented Standard
Mini Rocker Switch with IP68 Protection,
Approved to UL, CUL & ENEC, up to 16(8)A.
Unique aesthetic designed ON-OFF function
Quick connect terminals International patented.
13x19mm standard mini rocker switches with
IP68 protection level.

UL-recognized Anti-Vandal Switches with up to
16A and TV-6 Rating Protection level: IP65 and
IK07 Metal Knob detachable from main switch,
easy snap-in assembly.
Standard 19mm round hole mounting with nuts
for fastening M19, M22, M25 & M30 bushing
available.
🌟Application🌟
High-end Technology, Industrial equipmene,
Public building, Medical equipment,
Transportation, White goods
• Initial contact resistance: 20mΩ max.
• Insulation resistance: 100MΩ min. at 500VDC
• Dielectric strength: 1,000 VAC for 1 minute
• ON-OFF, or Momentary ON
• Ring & power symbol illuminated icon available
• VDC LED illumination regardless of anode and
cathode polarity
• Quick-connect, solder and pcb terminals
• M19, M22, M25 & M30 bushing, screw mounting
• China patent No.: ZL 201520850223.7
• IP65 protection level available
(passing MIRDC's TAF laboratory test);
• IK07

ZX7
IP67 Single Pole or Double Pole Rocker Switch,
Double LEDs, ON-ON, ON-OFF or ON-OFF-ON
Single Pole or Double Pole Rocker Switch

• Dielectric strength : 1,000VAC for 1 min.
• Insulation resistance : 100M ohm MIN. at 500VDC
• Initial contact resistance : 20m ohm MAX
• Electrical life : 10,000 cycles
• ON-OFF-ON, ON-ON, ON-OFF or other

push button switch built-in RGB tri-color LED, non mechanical moving parts, electric transfer contact by piezoelectric effect sensor. application: outdoor door opening button, heavy duty machine....
RGB tri-color Ring lighting
non moving parts long life cycle
dust and water proof
wire lead available

Multi-functional Hall effect rocker switch, XY axis, Z axis rotation and push button switch rocker, universal rocker and rotation adopt non-contact Hall sensor design, with extremely high operating life. Analogous to 0-5V linear output, it allows you to output as much as you move, intuitive operation.
Suitable for agricultural machinery equipment, monitoring PTZ control, robotic arm

Feature
• Long operating Life
• Long travel

Free your design; unlock every designer’s key while satisfying the fast-changing world of commercial merchandise. Switch design – often the most insignificant and yet the most annoying part to designers. Manufacturers often spend less or none budget on developing tooling for switch caps, yet have great difficulties searching for suitable components. Our Smart Cap provides you and every designer with the ultimate solution, with variety of choices for switches and caps.

Idea sharing between designers and push button switches makers are certainly most welcomed. Smart Cap is not only the platform for developing new switches and caps. It allows us to fully utilize the resources we have been given.

A rotary switch is used to switch the power supply or the body on and off through rotation. It is composed of a spindle and a rotor. Today's rotary switches even have star gear and multi-gear designs. We can also produce special types to meet your rotary switch needs.

If you need more detailed information or have other needs, please feel free to ask!

Illuminated Rotary encoder & tactile switches with LED backlight, digital display switch, Front Panel IP65, 36 pulses / 360°, marking service
