Rotary switch
Rotary switches are rotating the knob to make contact select some people will say that is selector switch. from single pole to 6 poles and with different position and also available shorting or non-shorting contact.
SLD
Illuminated Rotary encoder & tactile switches with LED backlight, digital display switch, Front Panel IP65, 36 pulses / 360°, marking service
PDF Download
SF25BA
Rotary encoder with center push button switches, circular LED lighting, customize marking available
PDF Download

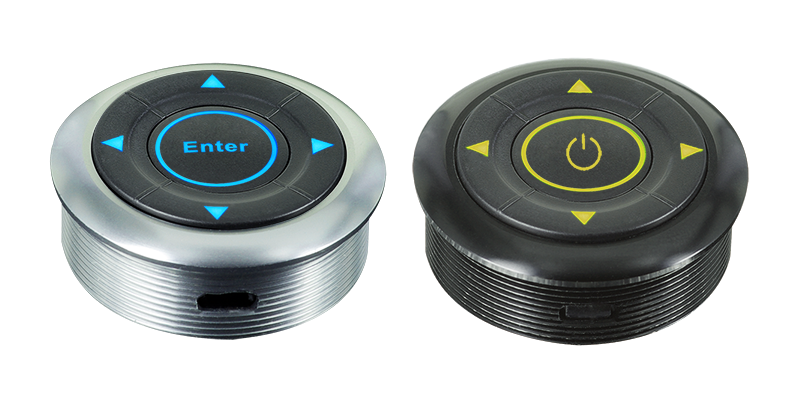

SF39BA
waterproof panel mounting 5-key navigation tactile pushbutton switch module with LED backlight and metal or PC/ PA housing. Acccept custmoize legends laser engraved.
PDF Download

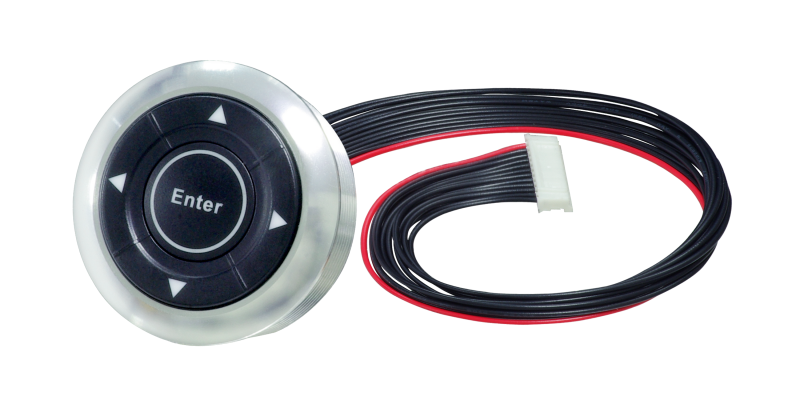

SF39BB
water proof IP65 5-ways navigation push button switch module with LED illumination, front panel mounting. aluminum allow housing.
PDF Download
SF39EA
Flat rotation knob accomplish finger control. "Simple is more" SF39EA Rotary encoder with central illuminated tactile button switch module, a component complete cover all your input device.
PDF Download
SF39EB
SF39EB Rotary encoder button module with Rised rotation knob and middle LED button switch approach "Simple is more" , a component complete cover all your input divice.
PDF Download.png)
SF39EC
Illuminated Tactile and Rotary Switches, Panel Cutting Ø39mm, White LED, Easy to Install.
SF42EA
Multi-function switch module it integrate rotary encoder and 5-keys tactile navigation switch, panel mounting, aluminum alloy bezel, flat design.
PDF Download
SF66BA
9-key keypad illuminated tactile button switch module, panel mount with SPI communication interface reduce I/O pins, customize laser engraved for own art-work.
PDF Download
SFC
SFC a physical touch knobs stick on capacitive touch screen, with advanced touch technology. Users can directly touch and rotate the knob, feeling the click feedback.
PDF Download.png)
SLB2-25_Rotary switch
SLB2 new Generation TFT LED display integrated rotary encoder and pushbutton switch
PDF Download.png)
SLB2-PL_Rotary switch
SLB2 new Generation TFT LED display integrated rotary encoder and pushbutton switch
PDF Download.png)
SLB2-2L_Rotary switch
SLB2 new Generation TFT LED display integrated rotary encoder and pushbutton switch
PDF Download.png)
SLB2-P5_Rotary switch
SLB2 new Generation TFT LED display integrated rotary encoder and pushbutton switch
PDF Download.png)
SLB2-10_Rotary switch
SLB2 new Generation TFT LED display integrated rotary encoder and pushbutton switch
PDF Download.png)
SLB2-15_Rotary switch
SLB2 new Generation TFT LED display integrated rotary encoder and pushbutton switch
PDF Download.png)
T18 Knob
Fits T18 Knob, 18 TEETH rotary encoder, also a kind of cap for rotary switch. Can be collocated with SBA indicator.
PDF Download
SBA
Ring LED indicator with 24 LED around the circler, the LED can be programmable in address, standard print art work, customize art work printing available, combination with Potentiometer, Variable Resistor(VR), rotary encoder. Made by SHANPU CO, LTD. in Taiwan.
PDF Download
SFA
Small low profile rotary encoder with central illuminated tactile pushbutton, PCB TH(through hole) terminal.
PDF Download
SRS5
Rotary switch customize in different pole or position, shorting/MBB(Make Before Break) and non-shorting/BBM(break Before Make) version.
PDF Download
ZRSG - Rotary switch Series
Dimensions mm (length*width*height):9.91x9.91x4.7
ZRSH - Rotary switch series
Dimensions mm(length*width*height):
7.2X7.2X8、7.2X7.2X8.15
7.2X7.2X6.8、7.2X7.2X3.65

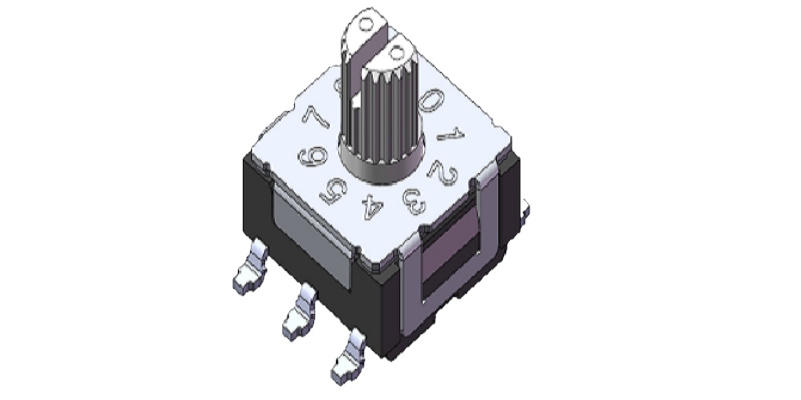

ZRSJ - Rotary switch series
Dimensions mm (length*width*height):7.2x7.2x6

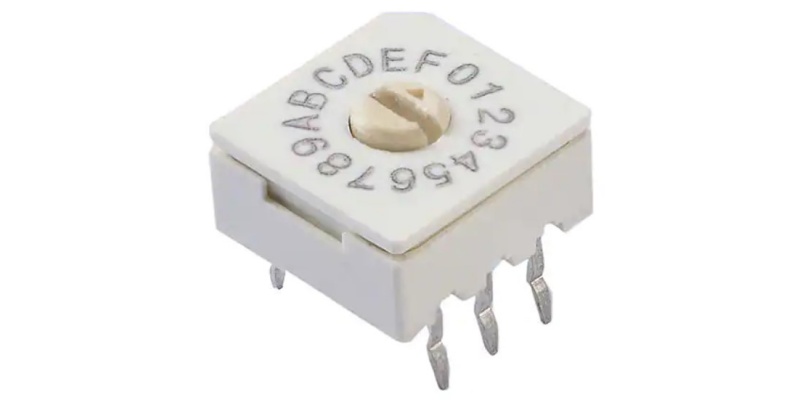

ZRSF - Rotary switch series
Dimensions mm(length*width*height):9.65x9.91x5.72
