ZX7
- IP67 waterproof sealing ensures superior protection
- Rugged build suitable for demanding equipment
- Long 10,000-cycle electrical operating life
- UL and ENEC certified for global standards
- Application: automation equipment, outdoor machine
- General Specifications
- Circuit/Contacts SPST, SPDT, DPDT
- Switching rating 16(8)A or 20(8)A 125/250V~T55 (cURus)
- Terminal Quick connect terminal
- Mechanical life 10000 cycles
- Front protection IP67
- Illumination w/o LED, Red LED
- Materials
- Cap/Lens Lens: PC
- Stem/Reflector Actuator: PBT
- Base/Housing Base: PBT; Housing: PA66
- Terminal Copper alloy
What’s ZX7 Rocker Switch?
SHANPU’s ZX7 rocker switch combines silver alloy contacts and robust IP67 protection. With global safety certifications and high endurance, it ensures reliable performance in public buildings, medical systems, and advanced industrial applications.

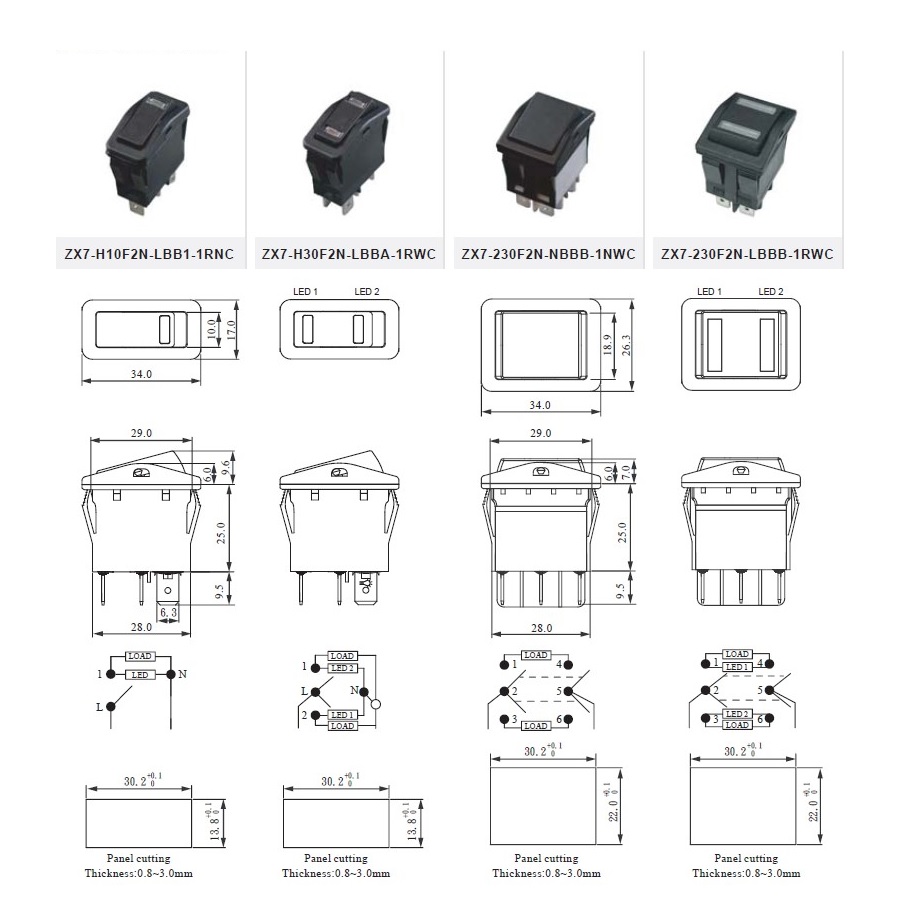

Circuit & panel cutting for ZX7 Rocker Switch
ZX7 has without and with LED two types. It has quick connect terminals, skirt and barb, cutting panel a hole to install, that’s so easy.
