ZTZ Waterproof Push Button Switch
- Sealed construction with IP67 protection.
- Durable in outdoor or wet conditions.
- Applications: Marine electronics, outdoor control panels, vending machines.
- General Specifications
- Circuit/Contacts Pulse Mode
- Switching rating 5-24V ADC/1A
- Terminal lead
- Mechanical life 50000000
- Front protection IP67
- Illumination RGB ring lighting available
- Materials
- Cap/Lens Aluminum alloy/ stainless steel/ PC
- Stem/Reflector -
- Base/Housing aluminum alloy or stainless steel
- Terminal lead wire

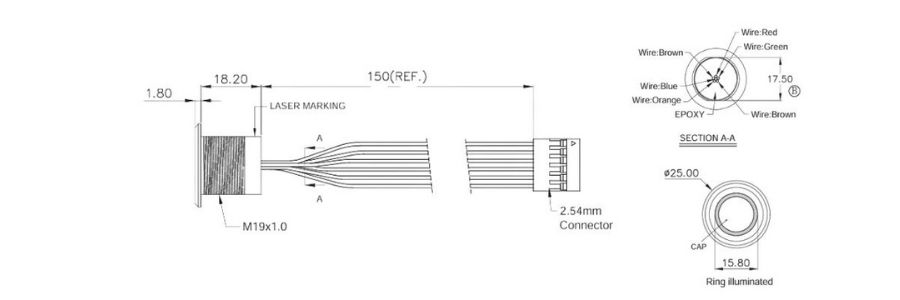

Dimension -Piezo push button switch which no mechanical moving part but you have push it to operation.
Q: Are piezo switches waterproof and dustproof?
A: Yes. Most piezo switches achieve IP67 or higher protection, ensuring reliable performance in humid, dusty, or oily environments.

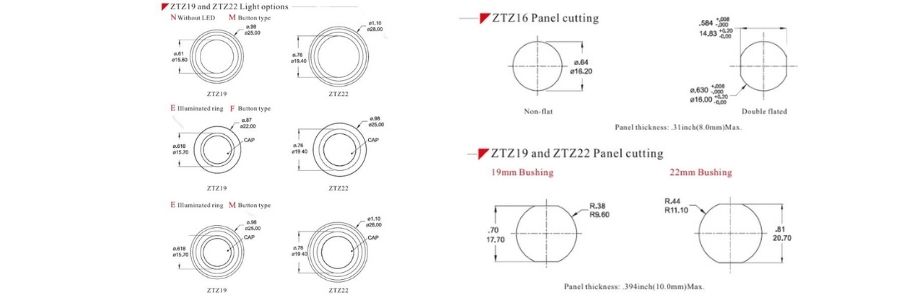

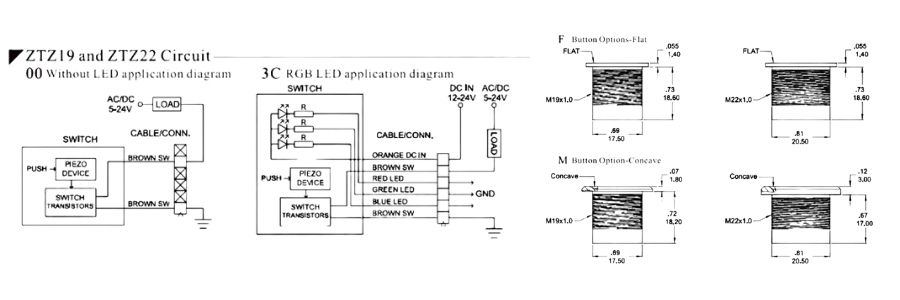

Pin function & Panel cutting
Product Appearance
