ZTZ Piezo Sensor Push Button Switch

  • No moving parts, maintenance-free.
  • Vandal-resistant and long-lasting.
  • Applications: Public terminals, secure entry systems, harsh environments.
  • General Specifications
  • Circuit/Contacts Pulse Mode
  • Switching rating 5-24V ADC/1A
  • Terminal lead
  • Mechanical life 50000000
  • Front protection IP67
  • Illumination RGB ring lighting available
  • Materials
  • Cap/Lens Aluminum alloy/ stainless steel/ PC
  • Stem/Reflector -
  • Base/Housing aluminum alloy or stainless steel
  • Terminal lead wire

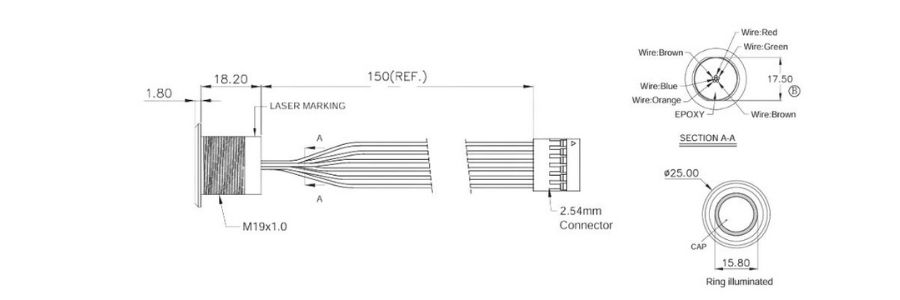

Dimension -Piezo push button switch which no mechanical moving part but you have push it to operation.

Q: Why choose a piezo switch over a traditional mechanical switch?
A: Because piezo switches offer exceptional durability, waterproof and dustproof performance, maintenance-free operation, and a sleek modern design, making them ideal for harsh environments or frequent-use applications.

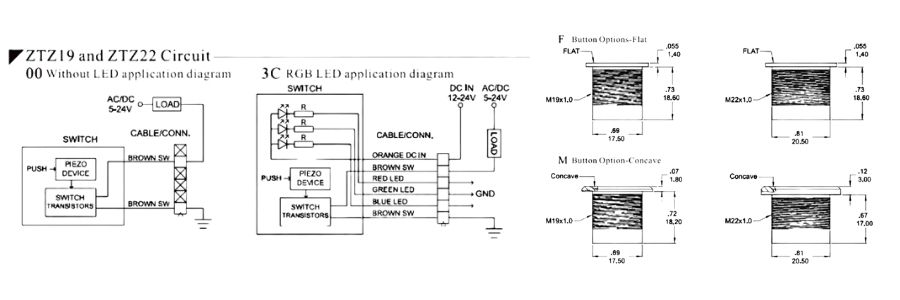

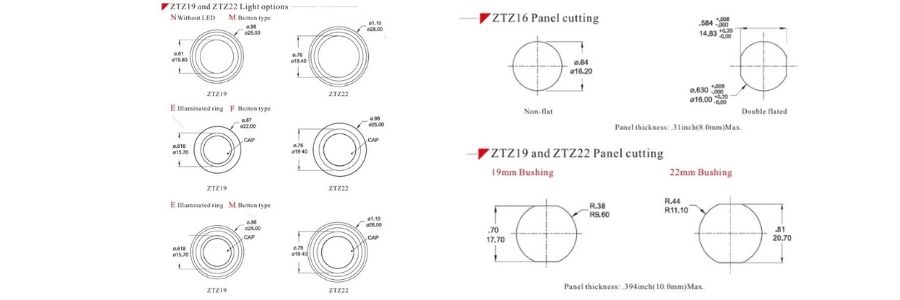

Pin function & Panel cutting

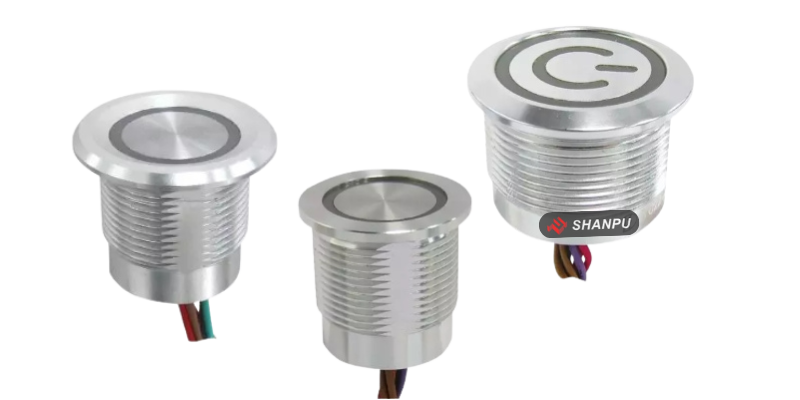

Product appearance
