ZTQ4 Tactile Switch
- SMD tactile switch with RGB IC LED
- Programmable RGB LEDs with 1-wire control
- Durable switch rated for 500k cycles
- Compact size saves PCB board space
- Application: security system, professional video equipment
- General Specifications
- Circuit/Contacts SPST (push ON)
- Switching rating DC 28V 50mA
- Terminal Surface Mounting Divice (SMD)
- Total travel 0.75mm ± 0.3mm
- Operating force 680gf ± 180gf
- Mechanical life 500,000 cycles Min.
- Illumination RGB + IC LED
- Materials
- Cap/Lens Cap: SUS 304
- Rubber Silicone
What’s ZTQ4 Tactile Switch?
Experience vivid lighting and reliable operation with SHANPU’s ZTQ4 tactile switch. Featuring addressable IC RGB LED control, long mechanical life, and compact design, it offers enhanced usability and integration for smart appliances, gaming devices, and electronic systems.

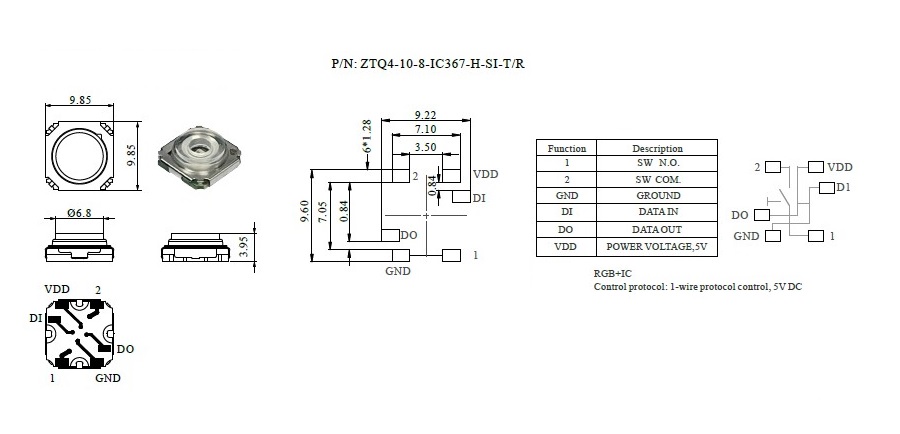

Dimension & PCB layout & circuit for ZTQ4 Tactile Switch
ZTQ4 is a SMD tactile switch with RGB IC LED, using multiple switches on the control board can reduce the number of LED circuits on the PCB.
Download
Sample Order
- Module
- Part No
- Description
-
- ZTQ4-10-8-IC367-H-SI-T/R
-
- Tactile Switch
- Silicone cap switch
- 9.85*9.85mm square
- SMD terminal for reflow process
- Integrate addressable RGB + IC LED
-
TWD 100
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
*All products comply with RoHs and REACH.
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
