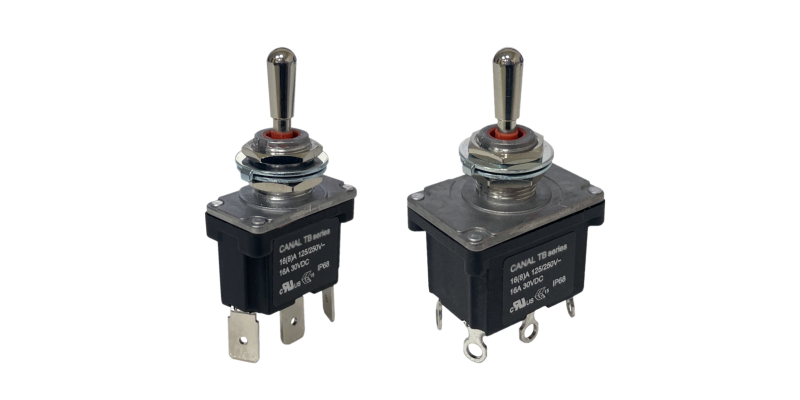

ZTB Waterproof Toggle Switch
- IP68 rating
- 16(8)A 125/250V~T55
- Maintain and momentary action
- Quick connect terminal
- Application: industrial control panels, transportation
- General Specifications
- Switching rating 16(8)A 125/250V～T55
- Terminal ZTB1 & ZTB2: quick connect terminal; ZTB3: solder terminal; ZTB4: screw terminal
- Mechanical life 50,000 cycles
- Front protection IP68
Is the SHANPU ZTB IP68 toggle switch waterproof?
The ZTB switch features an IP68 waterproof design that ensures excellent protection against dust and moisture, perfect for marine, automotive and outdoor control systems.
Download
Sample Order

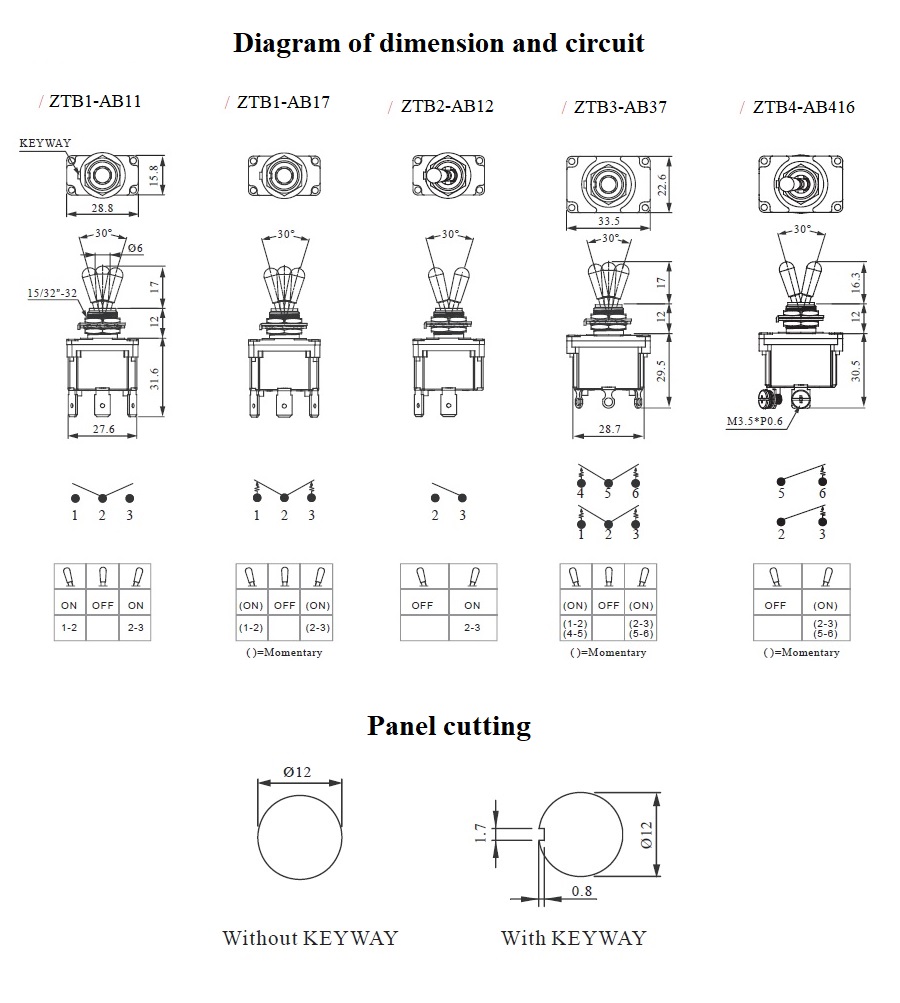

- Module
- Part No
- Description
-
- ZTB1-AB11
-
- Waterproof toggle switch
- ON-OFF-ON
- 1 pole, 3 position
- IP68
- Quick connect terminal
-
TWD 565
- +
-
- ZTB1-AB17
-
- Waterproof toggle switch
- (ON)-OFF-(ON) momentary
- 1 pole, 3 position
- IP68
- Quick connect terminal
-
TWD 580
- +
-
- ZTB2-AB12
-
- Waterproof toggle switch
- OFF-ON
- 1 pole, 2 position
- IP68
- Quick connect terminal
-
TWD 535
- +
-
- ZTB3-AB37
-
- Waterproof toggle switch
- (ON)-OFF-(ON) momentary
- 2 pole, 3 position
- IP68
- Solder terminal
-
TWD 715
- +
-
- ZTB4-AB416
-
- Waterproof toggle switch
- OFF-(ON) momentary
- 2 pole, 2 position
- IP68
- Screw terminal
-
TWD 685
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
*All products comply with RoHs and REACH.
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
