ZSPEH&ZSPEP LED Push Button Switch

Built-in LED for status indication
Multiple LED colors (Red, Green, Blue, Yellow)
Laser or printed cap markings
Enhanced visibility in low-light environments
Applications: Audio equipment, control panels, gaming devices

General Specifications
Circuit/Contacts DPDT
Switching rating 30V DC @ 100mA
Terminal Through hole(TH)
Total travel 1.5mm ± 0.5mm (full stroke); 1.0mm ± 0.5mm (lock stroke)
Operating force 250gf ± 100gf (Lock); 150gf ± 100gf (Momentary)
Mechanical life 10,000 cycles min.
Front protection IP4X
Illumination illuminated

Materials
Cap/Lens Cap: ABS ; Lens: PC(Polycarbonate)
Stem/Reflector POM(Polyoxymethylene)
Base/Housing Base: PA(Polyamide) ; Housing: ABS
Terminal PBS (Phosphor bronze) with Silver plating

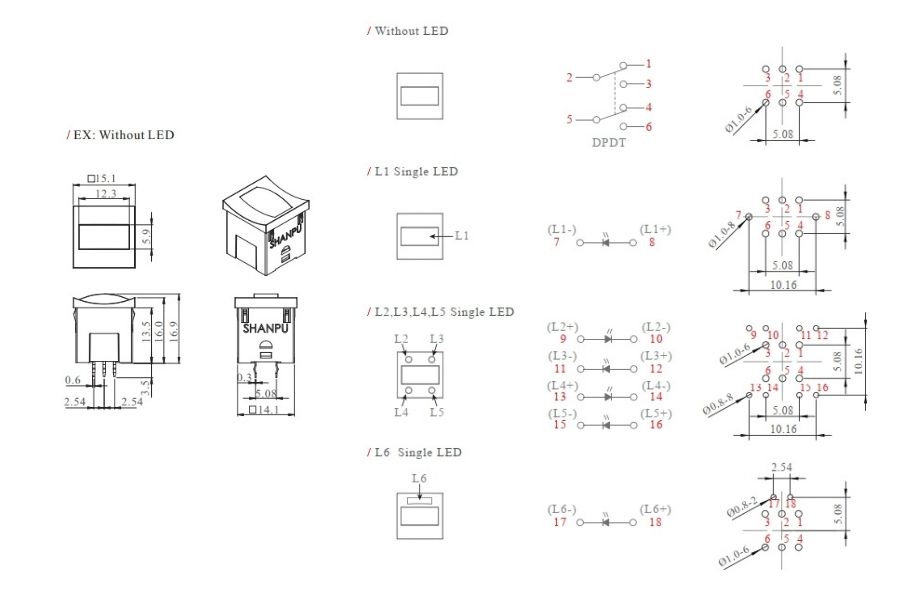

ZSPEH - Dimension & Circuit Diagram & PCB Layout

Without LED
L1 Single LED
L2,L3,L4,L5 Single LED
L6 Single LED

Q: Why choose LED push button switches?
A: They provide visual feedback, improving usability and interface clarity.

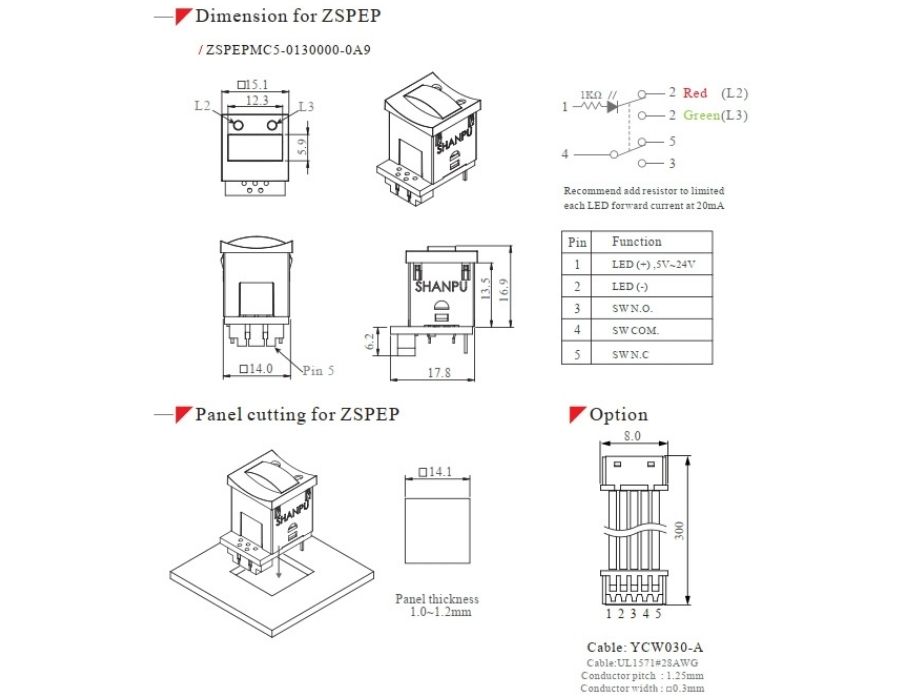

ZSPEP - Dimension & Panel cutting & Option

Recommend add resistor to limited each LED forward current at 20mA
Panel cutting: □14.1mm
Panel thickness: 1.0~1.2mm
Option: Cable: YCW030-A
Cable:UL1571#28AWG
Conductor pitch : 1.25mm
Conductor width : □0.3mm
