ZSPEH&ZSPEP
- DPDT contact configuration
- Available in momentary and latching types
- Integrated LED options
- RoHS & REACH compliant
- Applications: Industrial control panels, consumer electronics, automation systems
- General Specifications
- Circuit/Contacts DPDT
- Switching rating 30V DC @ 100mA
- Terminal Through hole(TH)
- Total travel 1.5mm ± 0.5mm (full stroke); 1.0mm ± 0.5mm (lock stroke)
- Operating force 250gf ± 100gf (Lock); 150gf ± 100gf (Momentary)
- Mechanical life 10,000 cycles min.
- Front protection IP4X
- Illumination illuminated
- Materials
- Cap/Lens Cap: ABS ; Lens: PC(Polycarbonate)
- Stem/Reflector POM(Polyoxymethylene)
- Base/Housing Base: PA(Polyamide) ; Housing: ABS
- Terminal PBS (Phosphor bronze) with Silver plating

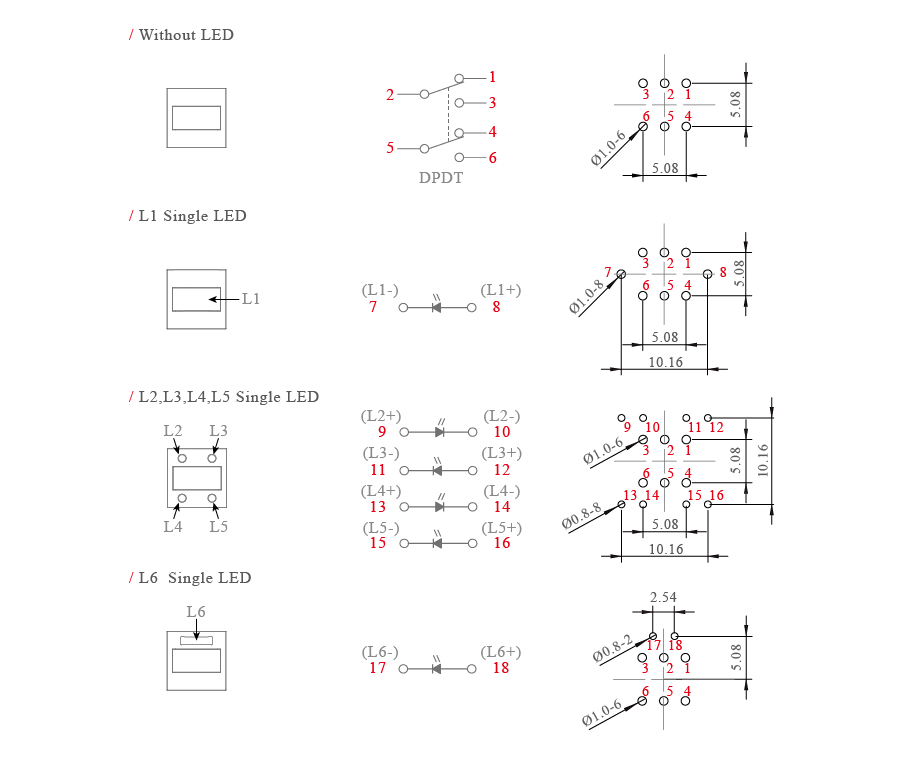

ZSPEH - Dimension & Circuit Diagram & PCB Layout
Without LED
L1 Single LED
L2,L3,L4,L5 Single LED
L6 Single LED
Q: What makes the ZSPEH & ZSPEP series versatile?
A: They offer both momentary and latching functions, LED options, and multiple mounting styles for various applications.
ZSPEP - Dimension & Panel cutting & Option
Recommend add resistor to limited each LED forward current at 20mA

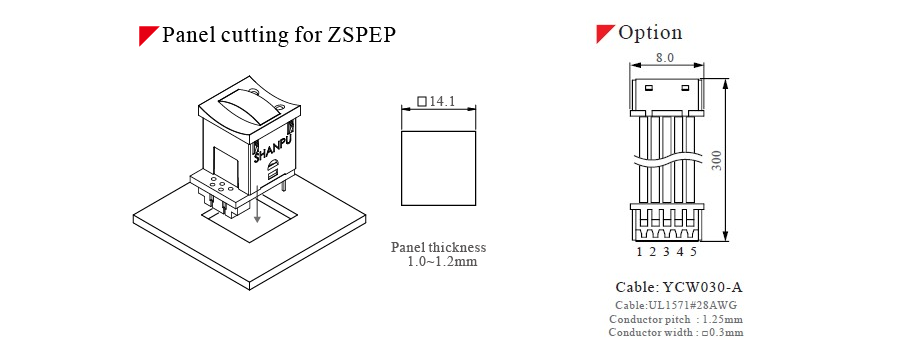

Panel cutting: □14.1mm
Panel thickness: 1.0~1.2mm
Option: Cable: YCW030-A
Cable:UL1571#28AWG
Conductor pitch : 1.25mm
Conductor width : □0.3mm
Download
Sample Order
- Module
- Part No
- Description
-
.png)
- ZSPEPMC5-0130000-0A9+YCW030-A
-
- ZSPEPMC5-0130000-0A9 Switch+YCW030-A wire
- Momentary square switch with PCB
- Black Housing,Grey Cap
- Red LED(L2), Green LED(L3)
-
TWD 360
- +
-
- ZSPEHMA9-0000000-0A5
-
- Momentary square switch
- Grey Housing
- Without LED
- Black Cap
-
TWD 100
- +
-
- ZSPEHMA5-7000000-0A01-L01
-
- Momentary square switch
- Black Housing
- Blue LED(L1)
- Paint Black Cap with laser "START" marking
-
TWD 115
- +
-
- ZSPEHAE9-0000010-KA5
-
- Alternate square switch
- Grey Housing
- Red LED(L6)
- Black Cap
-
TWD 135
- +
-
- ZSPEHAB5-0700000-0A2
-
- Alternate square switch
- Black Housing
- Blue LED(L2)
- Yellow Cap
-
TWD 130
- +
-
- ZSPEHMC5-0130000-0A1-P01
-
- Momentary square switch
- Black Housing
- Red LED(L2), Green LED(L3)
- Red Cap with print "START" marking
-
TWD 120
- +
-
- ZSPEHMC9-0130000-0A5
-
- Momentary square switch
- Grey Housing
- Red LED(L2), Green LED(L3)
- Black Cap
-
TWD 120
- +
-
- ZSPEHMD5-0223300-0A1
-
- Momentary square switch
- Black Housing
- Yellow LED(L2,L3), Green LED(L4,L5)
- Red Cap
-
TWD 135
- +
-
- ZSPEPMC5-0130000-0A9
-
- Momentary square switch with PCB
- Black Housing
- Red LED(L2), Green LED(L3)
- Grey Cap
- Please order YCW030-A wire together
-
TWD 265
- +
-
- YCW030-A for ZSPEP wire
-
- wire for ZSPEP square switch
- 5 pins, length 300 mm
- Female connector on the end
-
TWD 95
- +
