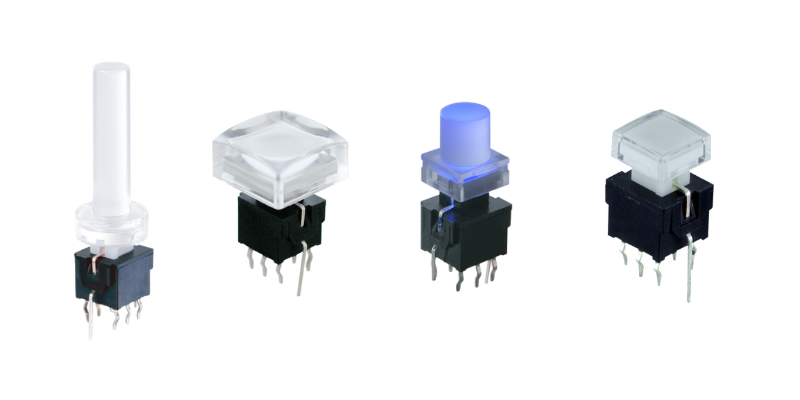

ZSPE
- DPDT contact configuration
- Waterproof front protection (IP4X)
- Multiple LED colors and smart caps
- Mechanical life: 10,000 cycles minimum
- Applications: Industrial control, consumer electronics, medical devices
- General Specifications
- Circuit/Contacts DPDT
- Switching rating 100mA @ 30V DC max
- Terminal Through hole(TH)
- Total travel 1.5mm ± 0.5mm (full stroke); 1.0mm ± 0.5mm (lock stroke)
- Operating force 250gf ± 100gf (Lock); 150gf ± 100gf (Momentary)
- Mechanical life 10,000 cycles min.
- Front protection IP4X
- Illumination illuminated
- Materials
- Cap/Lens PC(Polycarbonate)
- Stem/Reflector Nylon
- Base/Housing Nylon
- Terminal PBS (Phosphor bronze) with Silver plating

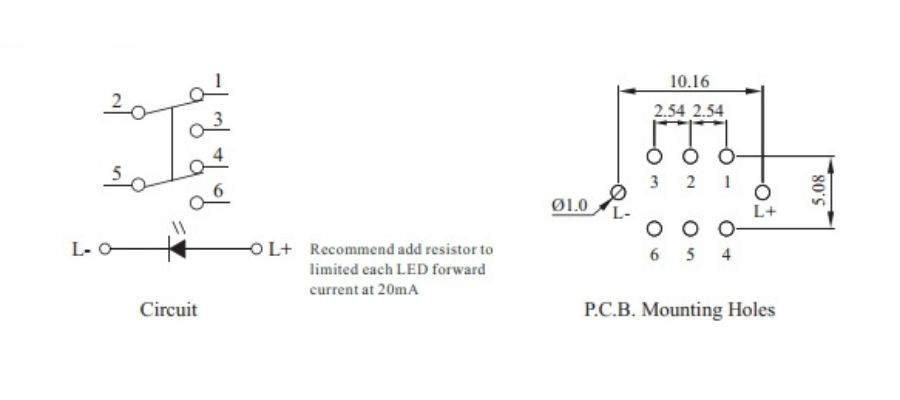

ZSPE-Contact configuration& PCB Layout
Circuit：Recommend add resistor to limited each LED forward, current at 20Ma
Q: What makes the ZSPE Series unique?
A: It offers both momentary and latching DPDT switches with LED options and smart caps for versatile applications.

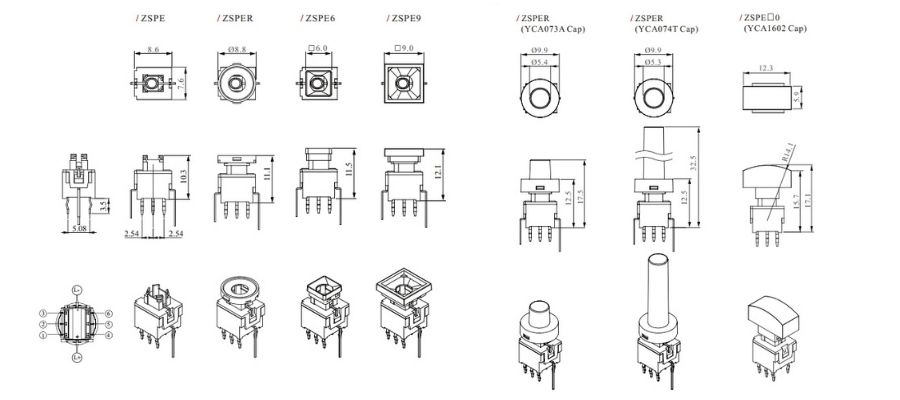

ZSPE- Dimension ZSPE、ZSPER、ZSPE6、ZSPE9
DPDT Through Hole Lead Push Button Switch
ZSPE□0 with the YCA1602 Cap
ZSPER with the YCA074T /YCA073A Cap
ZSPE6&ZSPE9 with the 6 Smart Cap 、9 Smart Cap、12 Smart Cap

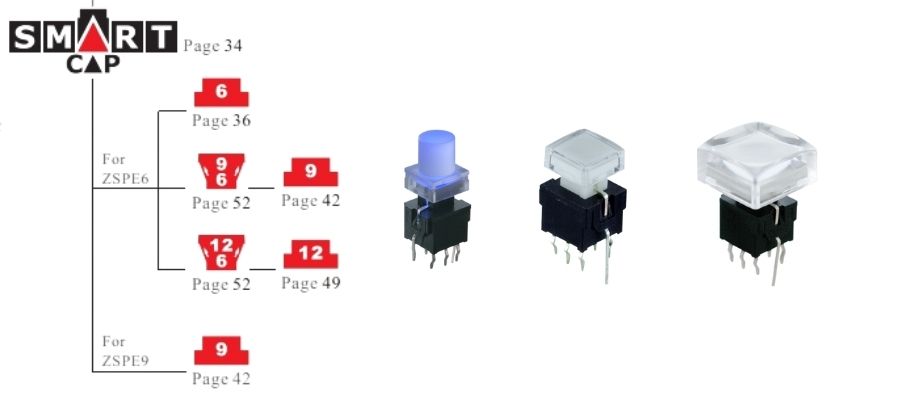

ZSPE-Smart cap
Choose from multiple cap styles to seamlessly pair with the 6 Smart Cap 、9 Smart Cap、12 Smart Cap、for versatile applications.
