ZRSJ Coded Rotary Switch & Rotary DIP Switch

Coded output formats (BCD, Hex, Gray) for precise digital control.
Tin-plated terminals reduce solder bath contamination.
Gasket design prevents debris intrusion, improving reliability.
Balanced spring and contact structure for long-lasting performance.
Applications: PCB configuration, automation systems, smart devices, instrumentation.

General Specifications
Circuit/Contacts SMT
Mechanical life (without load):10,000 steps.
Front protection IPX7

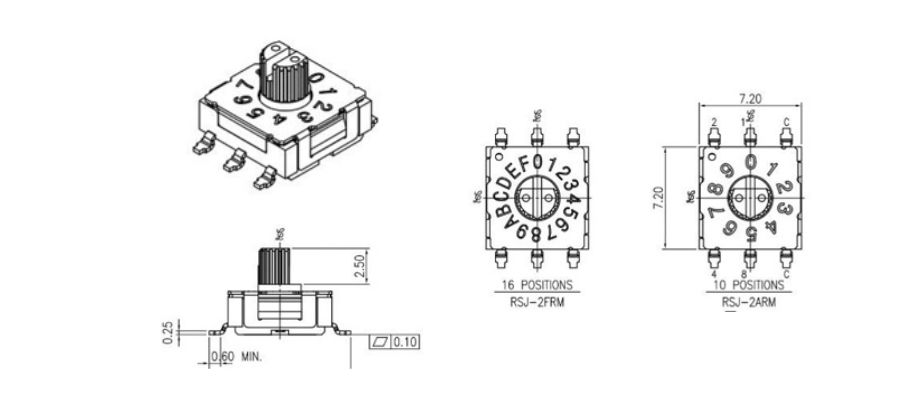

ZRSJ -Dimension

Q: How does the spring mechanism improve switch performance?
A: The balanced spring design provides consistent tactile feedback and extends the switch's mechanical life.

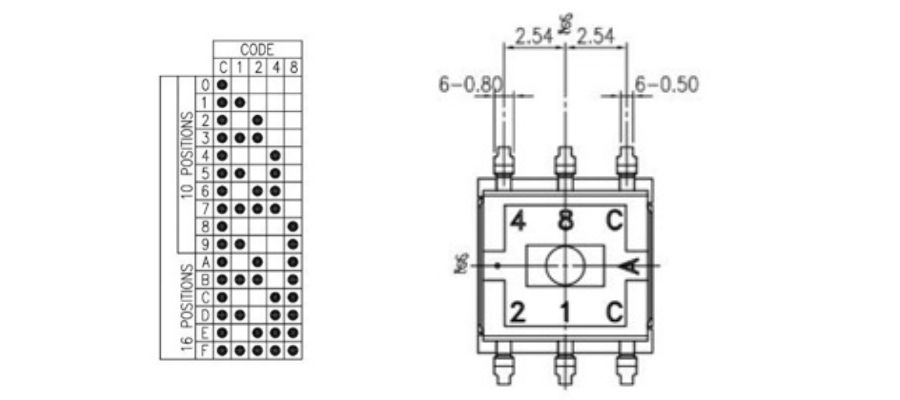

ZRSJ-Circuit Chart & PCB Layout

Q: What are the advantages of coded rotary switches?
A: They offer precise digital outputs (e.g., BCD, Hex), simplifying configuration and control in electronic systems.
