ZRSH
- High cover strength and welding durability
- Balanced spring design for extended lifespan
- Stable and balanced contact terminals
- IPX7 waterproof protection
- Applications: Industrial control panels, consumer electronics, automotive systems
- General Specifications
- Circuit/Contacts SMT, DIP
- Switching rating 100mA, 50VDC MAX.
- Mechanical life (without load):10,000 steps.
- Front protection IPX7

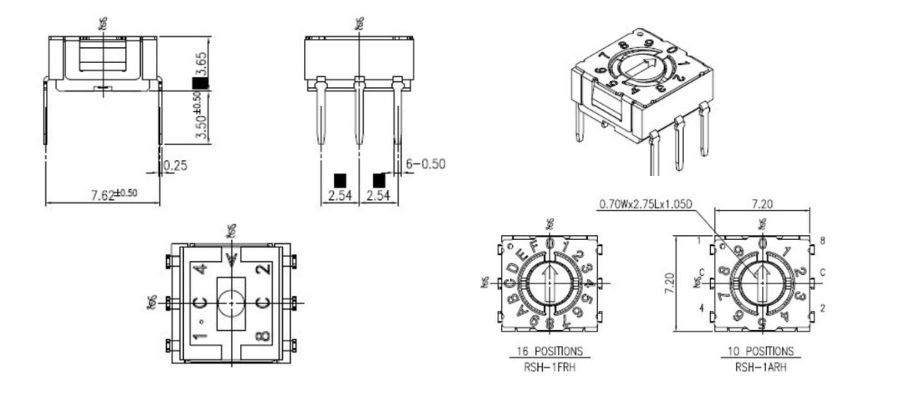

ZRSH-1-Dimension
Q: How long is the mechanical life of ZRSH switches?
A: The switches are rated for up to 10,000 steps without load.
ZRSH-2-Dimension
Q: How long is the mechanical life of ZRSH switches?
A: The switches are rated for up to 10,000 steps without load.
ZRSH-3-Dimension
Q: Can the ZRSH series be customized for specific applications?
A: Yes, Shanpu offers customization for dimensions and contact configurations.

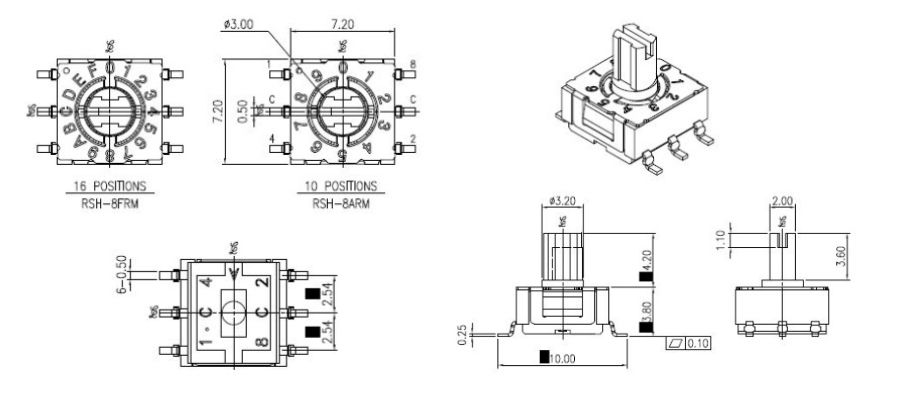

ZRSH-8-Dimension
Q: What materials are used in the ZRSH series to ensure durability?
A: The switches utilize high-strength plastic covers and tin-plated terminals to enhance mechanical integrity and prevent solder contamination.

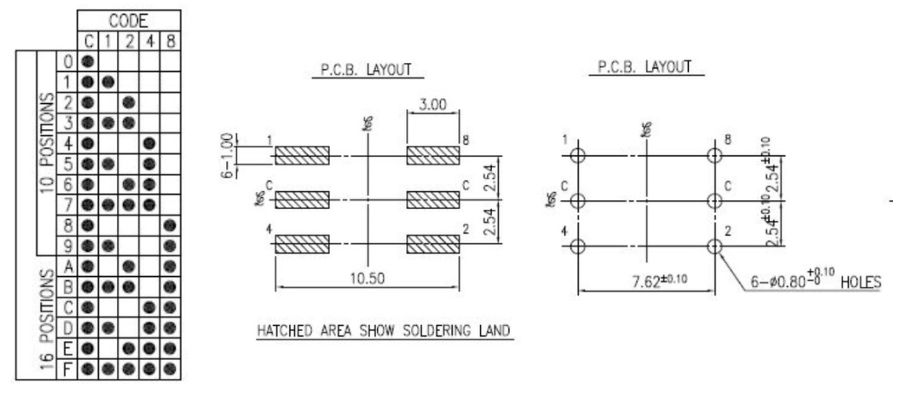

ZRSH-Circuit Chart & PCB Layout
Q: How does the ZRSH series address debris intrusion?
A: A gasket design is incorporated to block foreign particles, improving reliability in dusty or industrial environments.
