ZR18 Momentary Push Button Switch
- Non-latching (spring-return) actuation
- Ensures immediate reset after release
- Applications: Reset buttons, start switches, emergency stop triggers
- General Specifications
- Circuit/Contacts ON-(OFF), ON-OFF
- Switching rating 1A 250VAC
- Operating force 0.3Kgf (Min)
- Mechanical life 20,000 Cycle Min.
- Materials
- Cap/Lens Acrylonitrile Butadine Styrene (ABS)
- Terminal Copper Alloy,silver or gold plating

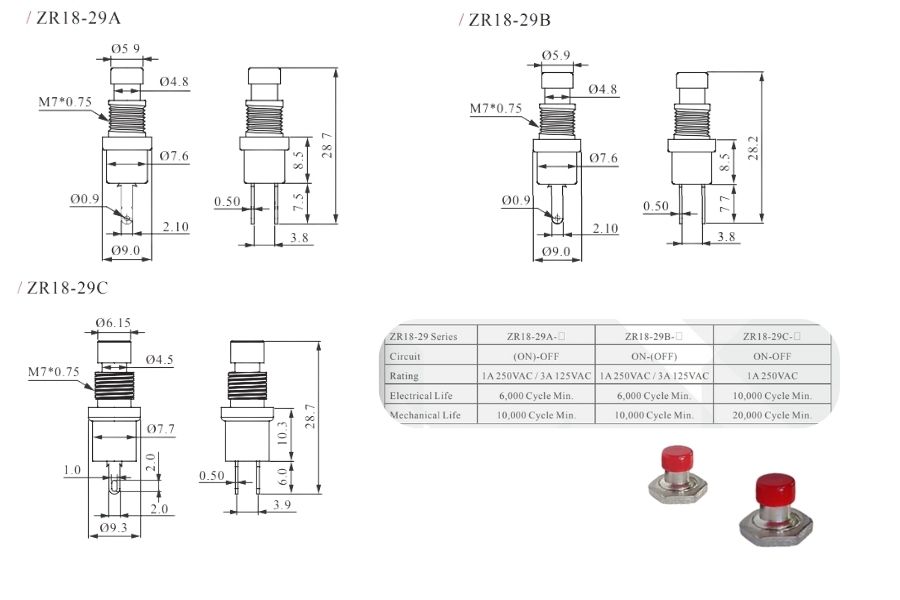

Dimension- Momentary (spring-return) push button with stable tactile feedback.
Q: What is the function of the momentary type?
A: The momentary push button activates only while pressed, and automatically resets when released, making it ideal for reset or start functions.

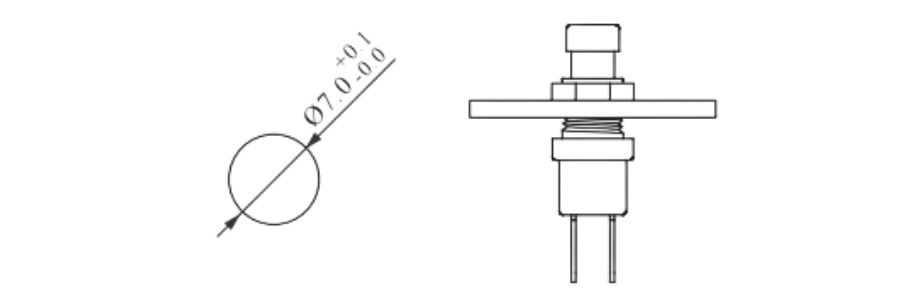

Instal Hole
Download
Sample Order
- Module
- Part No
- Description
-
.png)
- ZR18-29A-B
-
- Unlocked SPST push ON, black cap
-
TWD 45
- +
-
.png)
- ZR18-29A-R
-
- Unlocked SPST push ON, red cap
-
TWD 45
- +
-
.png)
- ZR18-29B-B
-
- Unlocked SPST push OFF, black cap
-
TWD 45
- +
-
.png)
- ZR18-29B-R
-
- Unlocked SPST push OFF, red cap
-
TWD 45
- +
-
.png)
- ZR18-29C-B
-
- Locked SPST, black cap
-
TWD 85
- +
-
.png)
- ZR18-29C-R
-
- Locked SPST, red cap
-
TWD 85
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
* All products comply with RoHs and REACH
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
