ZR18-29C-R_Push Button Switch

  • ZM18 has 3 operation function Push-ON, Push-OFF or Push-ON Lock、Dia 7mm panel mounting hole
  • Application:
  • ●Push to start button
  • ●Reset button
  • General Specifications
  • Circuit/Contacts ON-OFF
  • Switching rating 1A 250VAC
  • Operating force 0.3Kgf (Min)
  • Mechanical life 20,000 Cycle Min.
  • Materials
  • Cap/Lens Acrylonitrile Butadine Styrene (ABS)
  • Terminal Copper Alloy,silver or gold plating

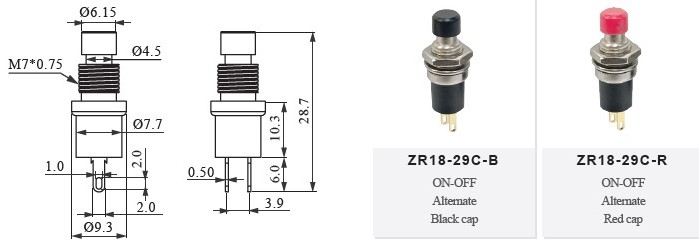

Picture file

Download

Sample Order

  • Module
  • Part No
  • Description
  • ZR18-29A-B
    • Unlocked SPST push ON, black cap
  • TWD 45
    - +
  • ZR18-29A-R
    • Unlocked SPST push ON, red cap
  • TWD 45
    - +
  • ZR18-29B-B
    • Unlocked SPST push OFF, black cap
  • TWD 45
    - +
  • ZR18-29B-R
    • Unlocked SPST push OFF, red cap
  • TWD 45
    - +
  • ZR18-29C-B
    • Locked SPST, black cap
  • TWD 85
    - +
  • ZR18-29C-R
    • Locked SPST, red cap
  • TWD 85
    - +

*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
* All products comply with RoHs and REACH
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
