ZR18-29A-B_Push Button Switch
- ZM18 has 3 operation function Push-ON, Push-OFF or Push-ON Lock、Dia 7mm panel mounting hole
- Application:
- ●Push to start button
- ●Reset button
.png)
- General Specifications
- Circuit/Contacts (ON)-OFF
- Switching rating 1A 250VAC / 3A 125VAC
- Operating force 0.3Kgf (Min)
- Mechanical life 10,000 Cycle Min.
- DC 500V 100M Ohm Min
- Materials
- Cap/Lens Acrylonitrile Butadine Styrene (ABS)
- Terminal Copper Alloy,silver or gold plating

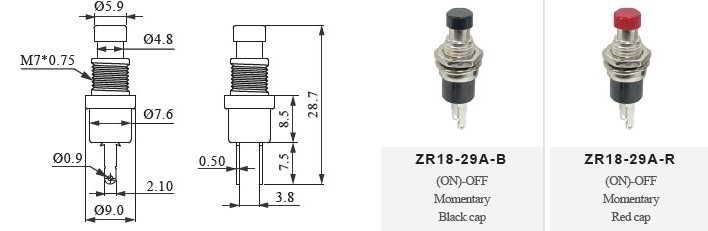

Picture file
Download
Sample Order
- Module
- Part No
- Description
-
.png)
- ZR18-29A-B
-
- Unlocked SPST push ON, black cap
-
TWD 45
- +
-
.png)
- ZR18-29A-R
-
- Unlocked SPST push ON, red cap
-
TWD 45
- +
-
.png)
- ZR18-29B-B
-
- Unlocked SPST push OFF, black cap
-
TWD 45
- +
-
.png)
- ZR18-29B-R
-
- Unlocked SPST push OFF, red cap
-
TWD 45
- +
-
.png)
- ZR18-29C-B
-
- Locked SPST, black cap
-
TWD 85
- +
-
.png)
- ZR18-29C-R
-
- Locked SPST, red cap
-
TWD 85
- +
