ZPS5 LED Push Button Switch

Supports high current up to 16A reliably
Illuminated ring and power symbol options
UL-recognized for safety and performance
Robust IP65 waterproof anti-vandal switch design
Application: security access system, outdoor machine

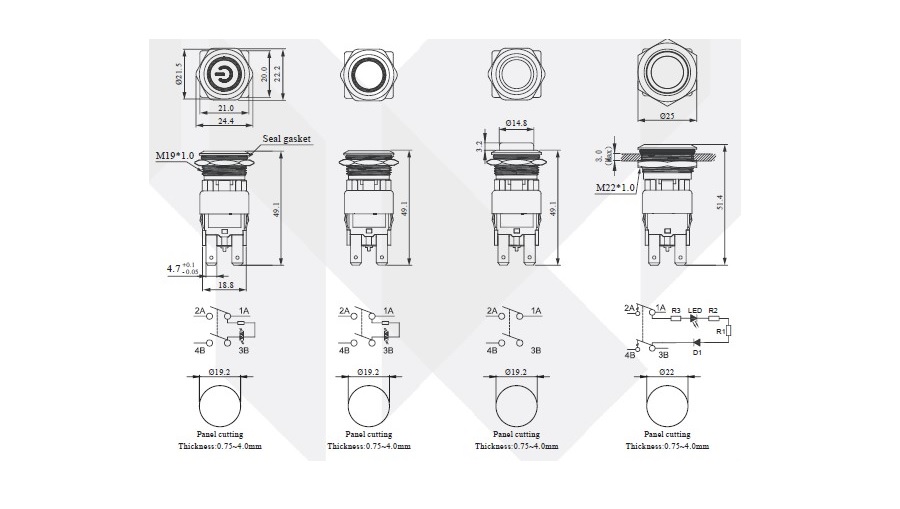

General Specifications
Circuit/Contacts Alternative or Momentary
Terminal Quick connect pin
Operating force 1000gf ± 300gram
Mechanical life 10000 cycles
Front protection IP65, IK07
Illumination w/o LED, Green, Blue LED

Materials
Base/Housing SUS

What’s ZPS5 LED Push Button Switch?

SHANPU’s ZPS5 anti-vandal push button switch combines 16A rating, IP65 waterproof, and IK07 durability. LED illumination with ring or power symbol, quick-connect with bushing body and soldering pins, supports ON-OFF (lock) or momentary control.

Download

ZPS5 LED Push Button Switch
