ZMR2
- IP68 waterproof sealing ensures superior protection
- Rugged build suitable for demanding equipment
- Long 10,000-cycle electrical operating life
- UL, cUL, and ENEC certified for global standards
- Application: automation equipment, outdoor machine
- General Specifications
- Circuit/Contacts SPST, ON-OFF
- Switching rating 10(4)A or 16(8)A 125/250V~T55 (cURus/ENEC15)
- Terminal snap-in type
- Operating force 600gf±300gram
- Mechanical life 10000 cycles
- Front protection IP68
- Illumination No
- Materials
- Cap/Lens Nylon 66, UL rated 94V-2 min
- Stem/Reflector Nylon 66, UL rated 94V-2 min
- Base/Housing Nylon 66, UL rated 94V-2 min
- Terminal Copper alloy
What’s ZMR2 Rocker Switch?
SHANPU’s ZMR2 mini rocker switch combines silver alloy contacts and robust IP68 protection. With global safety certifications and high endurance, it ensures reliable performance in public buildings, medical systems, and advanced industrial applications.

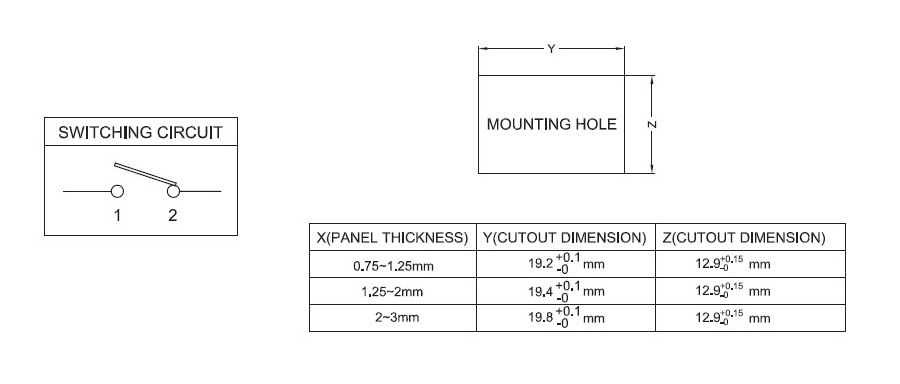

Circuit & panel cutting for ZMR2 Rocker Switch
ZMR2 only has switch pins, without LED. It has quick connect terminals, skirt and barb, cutting panel a hole to install, that’s so easy.
