ZLS67 / ZLS70
- RGB full color LED inside
- Vertical or right angle button switch element
- Various push button top cap from 6 smart cap
- General Specifications
- Circuit/Contacts SPST (push ON)
- Switching rating 12V DC @ 50mA
- Terminal Through hole(TH)
- Total travel 0.2mm ± 0.1mm
- Operating force 160gf ± 50gf
- Mechanical life 500,000 cycles min.
- Front protection IP6X
- Illumination illuminated
- Materials
- Cap/Lens PC(Polycarbonate)
- Stem/Reflector PA(Polyamide)
- Base/Housing PA(Polyamide)
- Terminal Brass with silver plated over nickel under plating
Diagram
switch add smart cap diagram
Circuit and pin define
PCB layout

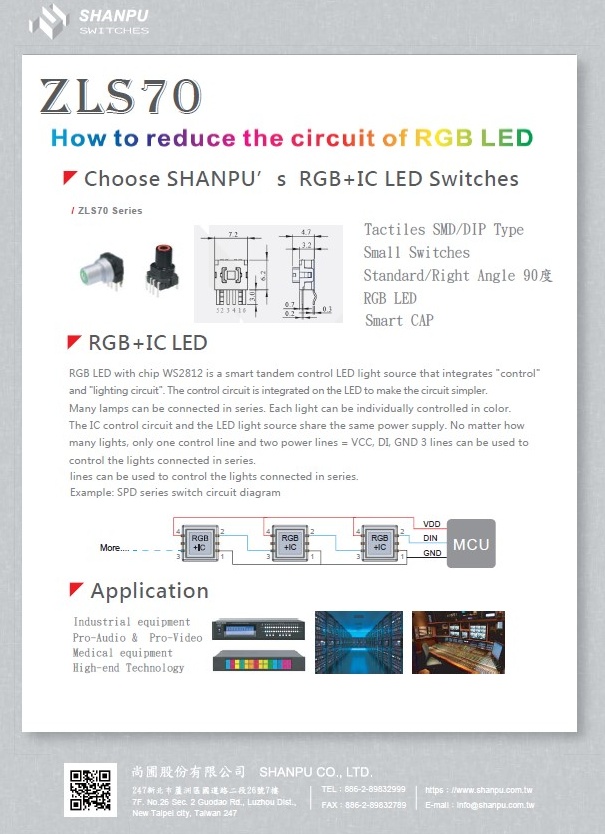

ZLS70
Video
Download
Sample Order
- Module
- Part No
- Description
-
- ZLS70AK-ZBQ-A
-
- ZLS70 Right angle Tactile switch
- RGB LED with IC
- no cap
-
TWD 100
- +
-
- ZLS67AK-PBR-A-R2SA1
-
- ZLS67 Right angle Tactile switch
- Silver cap
- RGB LED
- "Power" marking
- TWD 115 Out of Stock
-
- ZLS67AK-PBR-A-R2KA9
-
- ZLS67 Right angle Tactile switch
- Black cap
- RGB LED
- "Ring" marking
-
TWD 115
- +
-
- ZLS67VH-PBR-A-R2SA1
-
- ZLS67 Vertical Tactile switch
- Silver cap
- RGB LED
- "Power" marking
-
TWD 115
- +
-
- ZLS67VH-PBR-A-R2KA9
-
- ZLS67 Vertical Tactile switch
- Black cap
- RGB LED
- "Ring" marking
-
TWD 115
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
* All products comply with RoHs and REACH
*Obtained ISO 9001 certification in 2007.
*Obtain ISO 14001 certification in 2023.
