Product-Hall effect Joystick, A compact joystick designed for thumb or stick control, offering analog 0-5 V Hall-effect output and high durability in harsh environments.-SHANPU

ZHJB02-D2 Multiway Push Button Switch

Multi-directional actuation for flexible control
Robust construction for heavy-duty usage
Quick response for enhanced efficiency
Easy integration with standard circuits
Application: Suitable for machinery control systems

General Specifications
Circuit/Contacts 3 Axes+1 button switch
Switching rating Analog DC 0-5V output
Terminal fly cable
Total travel -
Operating force -
Mechanical life X/Y axes 5 Million cycle、Z axe 1 Million cycle
Front protection IP64
Illumination non

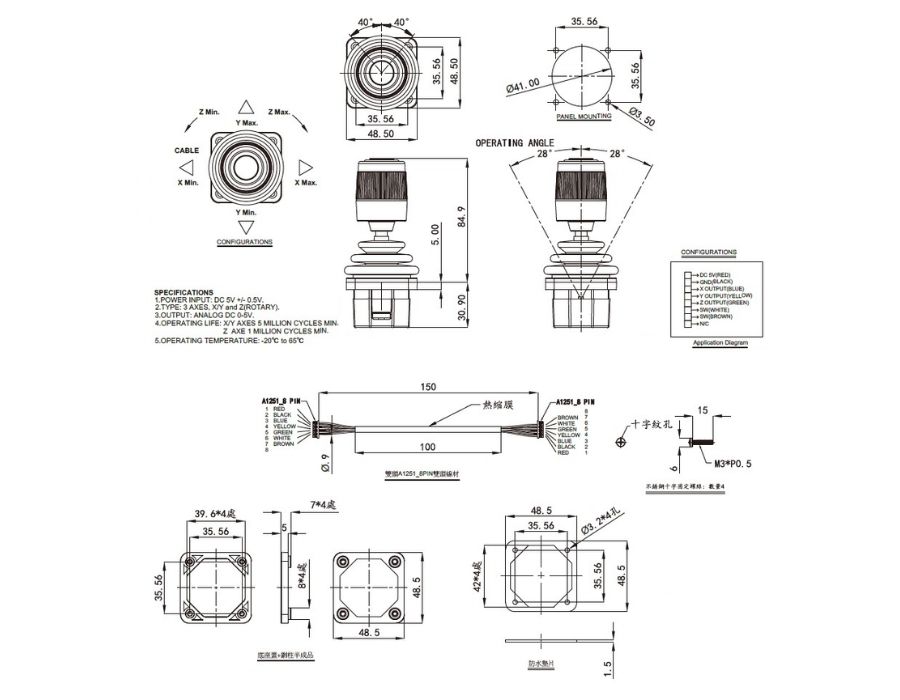

ZHJB02-D2 hall effect joystick

Q: What are the advantages of a Hall joystick switch?
A: It features a non-contact design, eliminating mechanical wear. This ensures longer lifespan, higher accuracy, and reliable performance even in dusty, humid, or heavy-duty operating environments.

Download

ZHJB02-D2 Multiway Push Button Switch
