Product-Hall effect Joystick, A compact joystick designed for thumb or stick control, offering analog 0-5 V Hall-effect output and high durability in harsh environments.-SHANPU

ZHJB02-D2

Compact design for space-saving installations
High mechanical durability for extended service life
Multiple configurations for diverse control needs
Smooth tactile feedback for precise operation
Application: Ideal for industrial automation panels

General Specifications
Circuit/Contacts 3 Axes+1 button switch
Switching rating Analog DC 0-5V output
Terminal fly cable
Total travel -
Operating force -
Mechanical life X/Y axes 5 Million cycle、Z axe 1 Million cycle
Front protection IP64
Illumination non

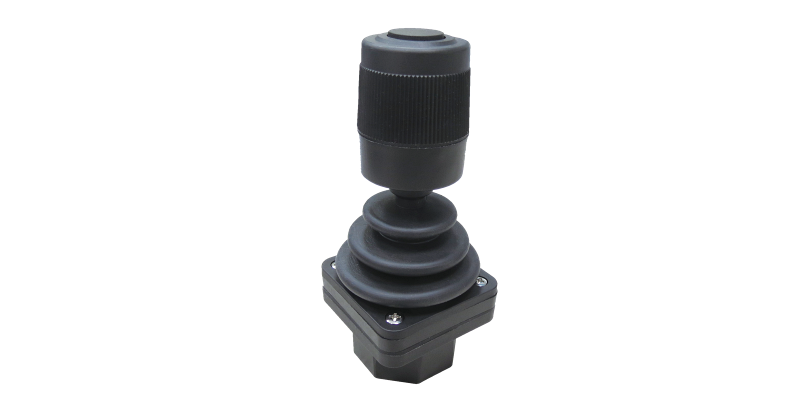

ZHJB02-D2 hall effect joystick

Q: What is a Hall joystick switch?
A: A Hall joystick switch uses the Hall effect to sense movement and converts joystick motion into precise 0–5V analog output signals, offering greater durability and stability than traditional potentiometer joysticks.

Download

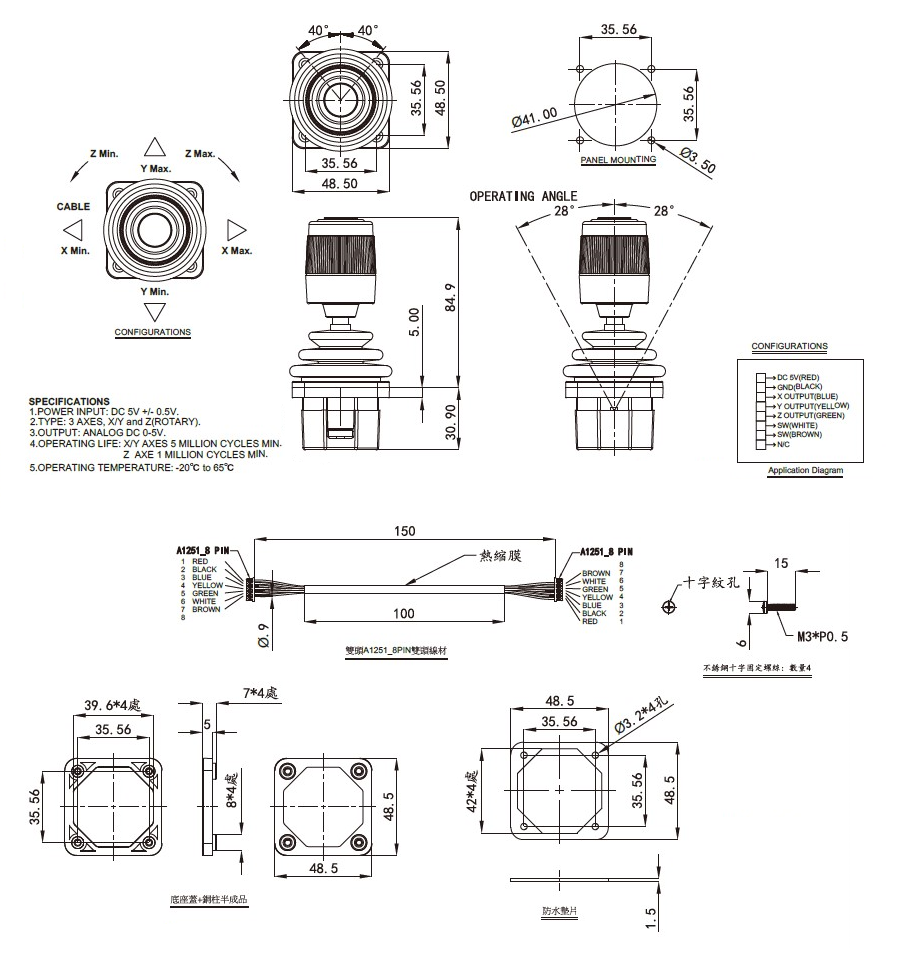

ZHJB02-D2 hall effect joystick

Sample Order

Module
Part No
Description

ZHJB02-D2
- Hall Effect analog DC 0-5 V output. Application Agriculture equipment, PTZ control, robot arm.. harsh environment application.
TWD 2,860

- +

*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
*All products comply with RoHs and REACH.
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
