YSW0094-OK & YSW0095-OK multi-function 5-way button + encoder switch
- Multi-function push button
- Rotary encoder and 5-keys tactile navigation switch
- General Specifications
- Circuit/Contacts SP5T Momentary+Rotation
- Switching rating 1mA @ 10V DC
- Terminal -
- Total travel 0.5mm±0.3mm
- Operating force Rotation 60gf-cm, push swith max. 300gf
- Mechanical life Rotation 2,000,000 operations, Center push 1,000,000 cycle
- Front protection IP4X
- Illumination non-illumination
- Materials
- Cap/Lens PC(Polycarbonate)
- Stem/Reflector -
- Base/Housing -
- Terminal Brass with plating

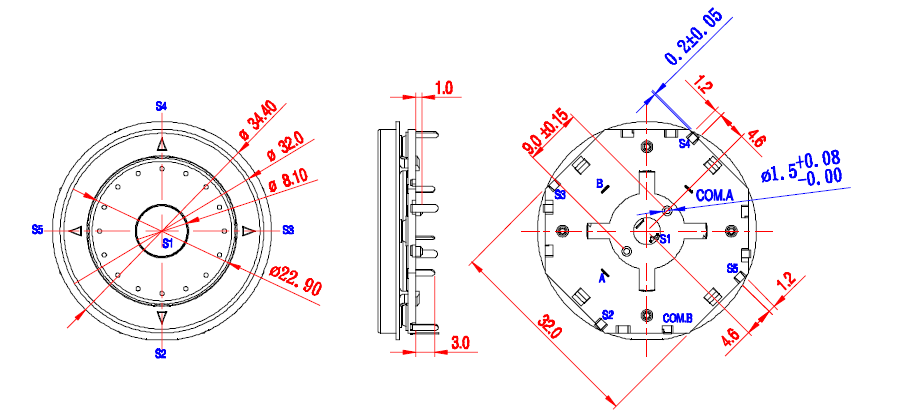

Dimension

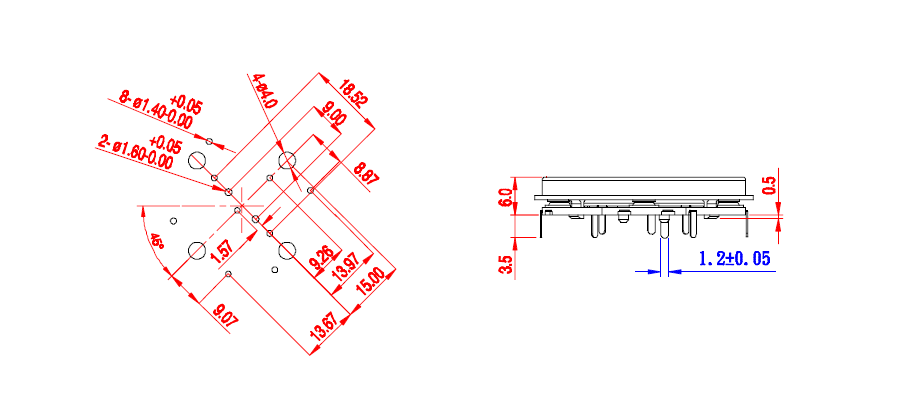

PCB layout

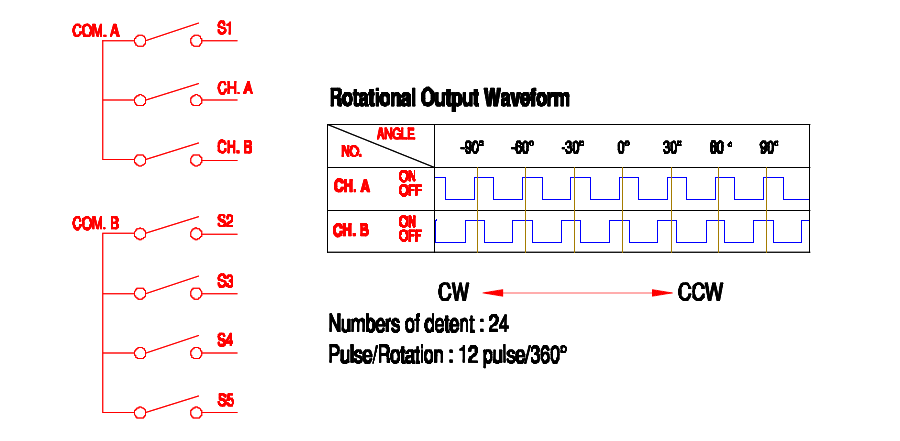

Contact configuration
Sample Order
- Module
- Part No
- Description
-
- YSW0094-OK
-
- Rotary encoder + 5-keys navigation tactile switch
- White cap
- w/o LED
-
TWD 200
- +
-
- YSW0095-OK
-
- Rotary encoder cobinate 5-keys tactile navigation switch
- Black cap
- w/o LED
-
TWD 200
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
* All products comply with RoHs and REACH
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
