Product-SHANPU’s rotary switch knob T18 Knob 18 TEETH_Rotary Switch and Encoder factory made in taiwan. -SHANPU

T18 Knob Rotary Switch and Encoder T18 Knob

Supports light-through design for illuminated shafts
Custom marking options available
Durable plastic construction (PC or ABS)
Sample orders available for evaluation
Applications: Rotary selectors、Variable resistors and potentiometers 、Encoder-based input devices 、LED indicator integration

Materials
Cap/Lens Plastic PC/ABS

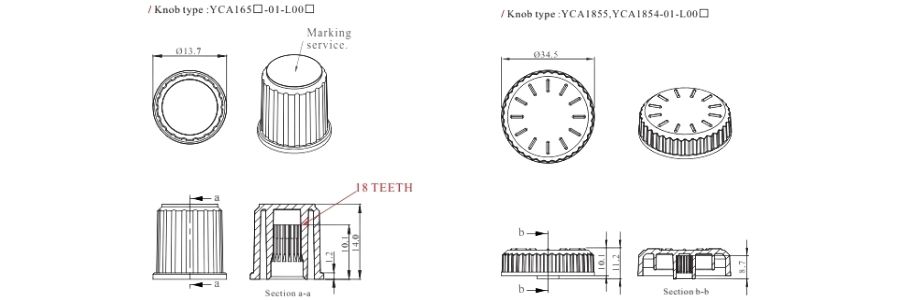

T18 Knob Diagram-Knob type -YCA165□-01-L00□& YCA1855,YCA1854-01-L00□

T18 Knob Diagram-Knob type：YCA165□-01-L00□：Ø13.7mm, H 14mm, Plastic PC/ABS
T18 Knob Diagram-Knob type：YCA1855,YCA1854-01-L00□：Ø34.5mm, H 10.1mm, Plastic PC

Q: What is the T18 knob and where is it used?
A: The T18 knob is a cap designed for rotary switches and encoders with 18 teeth and a 6mm shaft diameter. It is commonly used in control panels, audio systems, and other electronic devices requiring precise rotary input.

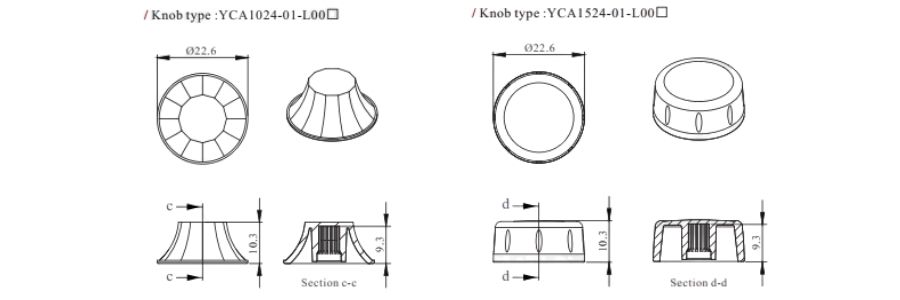

T18 Knob Diagram-Knob type -YCA1024-01-L00□& YCA1524-01-L00□

T18 Knob Diagram-Knob type：YCA1024-01-L00□：Ø22.6mm, H 10.3mm, Plastic PC
T18 Knob Diagram-Knob type：YCA1524-01-L00□：Ø22.6mm, H 10.3mm, Plastic PC

Download

T18 Knob Rotary Switch and Encoder T18 Knob T18 Knob Rotary Switch and Encoder T18 Knob can use for SRS5 series
