T18 Knob

Designed for 6mm shaft diameter with 18 teeth
Compatible with Shanpu SRS5 rotary switches
Available in multiple styles and finishes (e.g., laser etching, painting, UV printing)
RoHS and REACH compliant, ISO 9001 & 14001 certified
Applications: Industrial control panels、Audio equipment 、Home appliances 、Automotive electronics

Materials
Cap/Lens Plastic PC/ABS

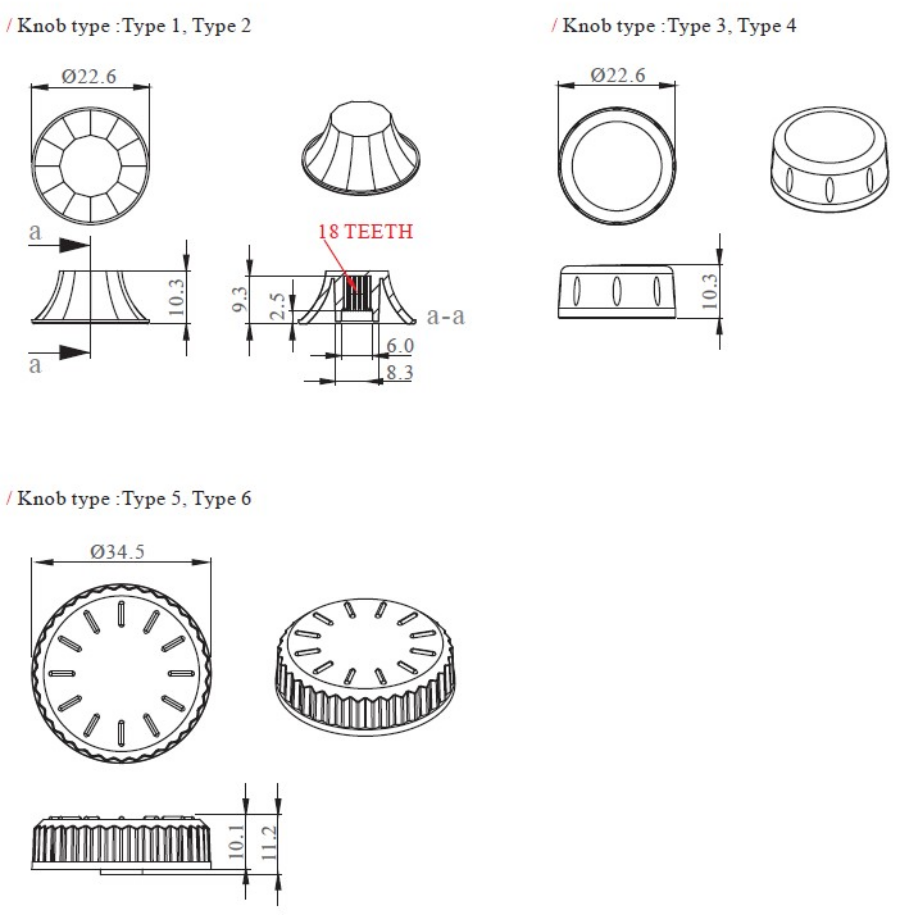

T18 Diagram-Knob type -YCA165□-01-L00□& YCA1855,YCA1854-01-L00□

T18 Diagram-Knob type：YCA165□-01-L00□：Ø13.7mm, H 14mm, Plastic PC/ABS
T18 Diagram-Knob type：YCA1855,YCA1854-01-L00□：Ø34.5mm, H 10.1mm, Plastic PC

Q: Can the T18 knob be used with Shanpu’s SRS5 rotary switch series?
A: Yes, the T18 knob is fully compatible with Shanpu’s SRS5 series rotary switches. This combination ensures reliable performance and aesthetic consistency in various applications.

T18 Diagram-Knob type -YCA1024-01-L00□& YCA1524-01-L00□

T18 Diagram-Knob type：YCA1024-01-L00□：Ø22.6mm, H 10.3mm, Plastic PC
T18 Diagram-Knob type：YCA1524-01-L00□：Ø22.6mm, H 10.3mm, Plastic PC

Video

Download

T18 Knob T18 Knob can use for SRS5 series

Sample Order

Module
Part No
Description

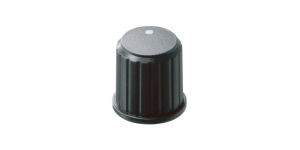

YCA1654-01-L001
- Plastic (PC) / Paint Black / Laser Marking

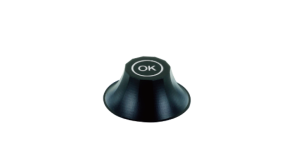

YCA1024-01-L001
- Plastic (PC) / Paint Black / Laser Marking

YCA1655-00-P001
- Plastic (ABS) / Black / Print Marking

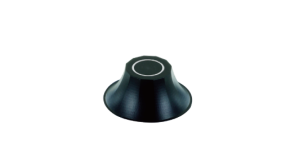

YCA1024-01-L002
- Plastic (PC) / Paint Black / Laser Marking

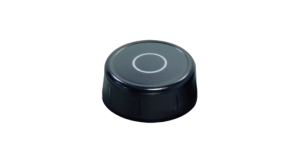

YCA1524-01-L001
- Plastic (PC) / Paint Black / Laser Marking

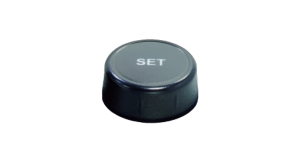

YCA1524-01-L002
- Plastic (PC) / Paint Black / Laser Marking

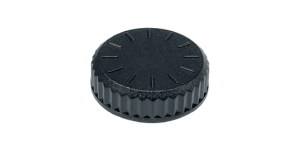

YCA1855
- Plastic (PC) / Black

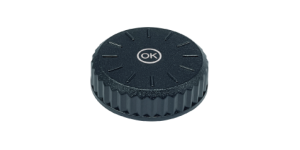

YCA1854-01-L001
- Plastic (PC) / Paint Black / Laser Marking

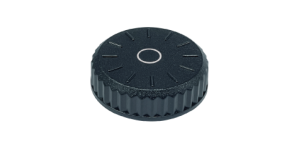

YCA1854-01-L002
- Plastic (PC) / Paint Black / Laser Marking

*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
*All products comply with RoHs and REACH.
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
