ST-10B

  • SMD component tweezers
  • LCR meter tooling
  • LED tester
  • Conductive test tweezer
  • Ring lighting and buzzer
  • General Specifications
  • Circuit/Contacts -
  • Illumination ring illuminative
  • Switching rating 12V battery
  • Terminal copper
  • Total travel -
  • Operating force -
  • Mechanical life -
  • Front protection -
  • Materials
  • Cap/Lens PC(Polycarbonate)
  • Stem/Reflector ABS
  • Base/Housing ABS
  • Terminal Copper with gold plating

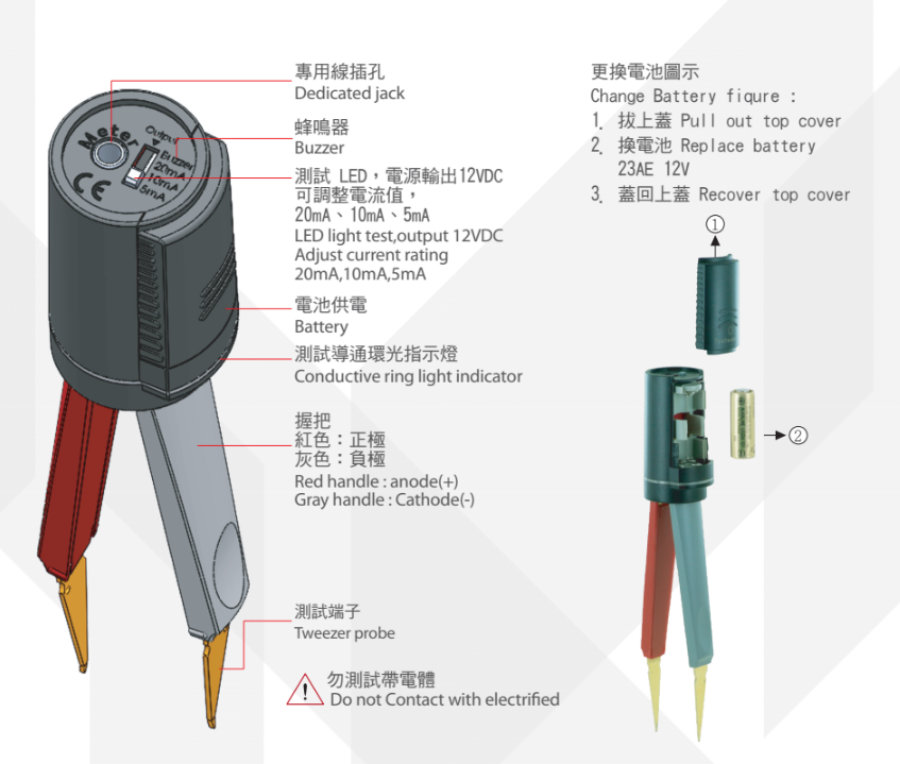

Diagram

A very useful tool the ST-10B tester tweezer. The open & short and LED tester tweezer.
At beginning that is handmade tooling for sales representative who using it to demonstrate the LED lighting at illumination LED push button switch for the customer.
The tester tweezer function includes check conductive contact open & short such as push button switches contact, relay, fusor, wire cable etc. by the ring LED light or buzzer.
Light up LED check LED Light-emitting color, through slider switch switching current to power on the LED also identify positive and negative side of the LED pin.
Through test leads connect to Digital Multimeters (DMM) or LCR meter it become SMD test probe tweezers for measurement.

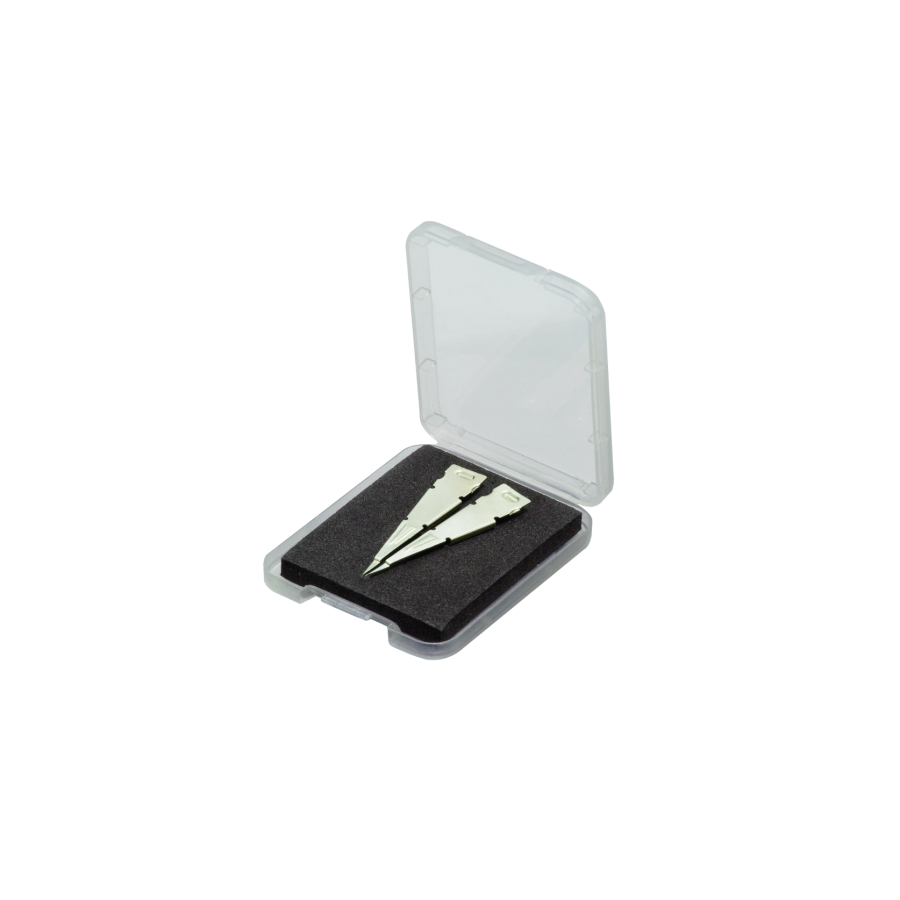

ST-10B accessories K-ST-10B-01 precision kit for tiny SMD component

Addition removable clip design for ST-10B

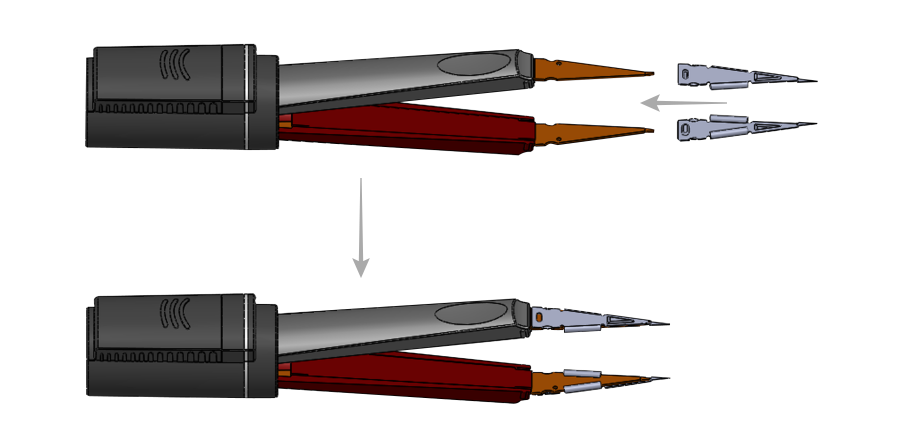

How to assembly Precision kit

Video

Download

Sample Order

  • Module
  • Part No
  • Description
  • ST-10B
    • ST-10B Tweezer*1
    • Wire cable for LCR multi-meter*1
  • TWD 2,400
    - +
  • ST-10B-01
    • ST-10B Tweezer*1
    • K-ST-10B-01 precision kit*1
    • Wire cable for LCR multimeter *1
  • TWD 2,600
    - +

*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
* All products comply with RoHs and REACH
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
