SRS5 Rotary Selector Switch

Slim structure design and dustproof enclosed construction
Supports up to 6 poles with 12 selectable positions
Available in shorting and non-shorting versions
Optional semi-transparent lever
Can match T18 Knob
Application: broadcast equipment and security system

General Specifications
Switching rating 48VDC @ 130mA; 48VAC @ 5VA
Terminal Through hole (TH)
Total travel 1kgf - cm (Max.)
Operating force 30 deg.
Mechanical life 15,000 cycles min.
Illumination non-illumination

Materials
Cap/Lens PA (Polyamide)
Stem/Reflector PA (Polyamide)
Base/Housing PA (Polyamide)
Terminal Brass with gold plating

Does the SRS5 rotary selector switch support different circuit types?

The SRS5 rotary switch offers both shorting and non-shorting options, providing design flexibility for industrial controls and electronic devices needing precise circuit selection.

Contact configuration and panel cutting for SRS5 rotary selector switch.

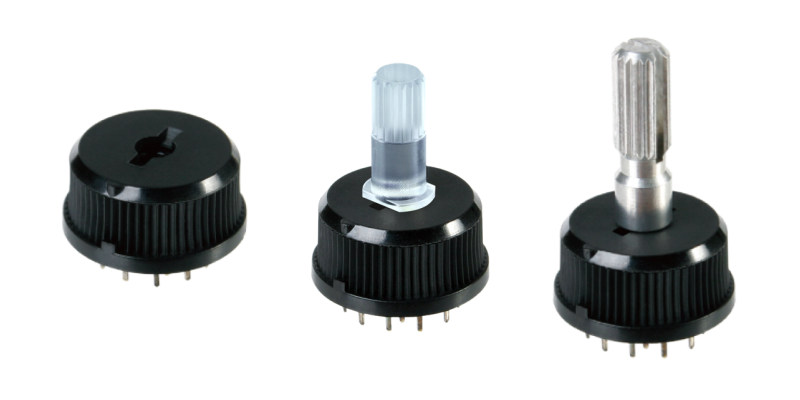

SRS5 rotary switch with enclosed low-profile design prevents dust, supports 6 poles and 12 positions, offers translucent handle and T18 knob fit.

Download

SRS5 Rotary Selector Switch The T18 knob can matched SRS5 rotary selector switch

Sample Order

Module
Part No
Description

SRS5-B-22-NS
- Through Hole Lead Rotary Switch
- B cap type
- 2 pole
- 6 position
- Operating mode: Non-Shorting (break-before-make)
TWD 100

- +

SRS5-C1-12-NS
- Through Hole Lead Rotary Switch
- C1 cap with E ring type
- 1 pole
- 12 position
- Operating mode: Non-Shorting (break-before-make)
TWD 110

- +

SRS5-E-22-NS
- Through Hole Lead Rotary Switch
- E transparent cap type
- 2 pole
- 6 position
- Operating mode: Non-Shorting (break-before-make)
TWD 110

- +
