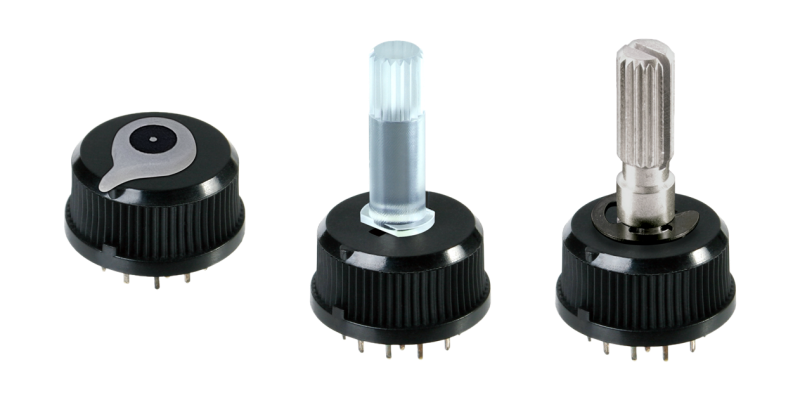

SRS5

  • Low profile
  • Up to 6 poles and 12 position
  • Long operation life
  • Translucent handle option
  • Can match T18 Knob
  • General Specifications
  • Circuit/Contacts see data
  • Switching rating 150V AC/DC @130mA
  • Terminal Through hole(TH)
  • Total travel 1kgf-cm(Max.)
  • Operating force 30 deg.
  • Mechanical life 15,000 cycles min. full load
  • Front protection IP4X
  • Illumination non-illumination
  • Materials
  • Cap/Lens Cap: PA / C1 handle: Aluminum / D & E & F handle: PC
  • Stem/Reflector PA(Polyamide)
  • Base/Housing PA(Polyamide)
  • Terminal Brass with gold plating

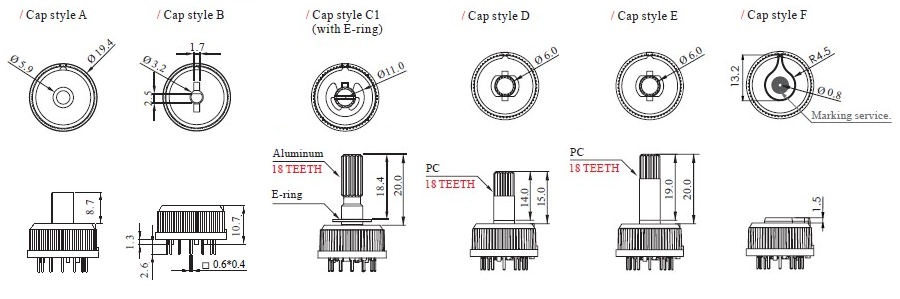

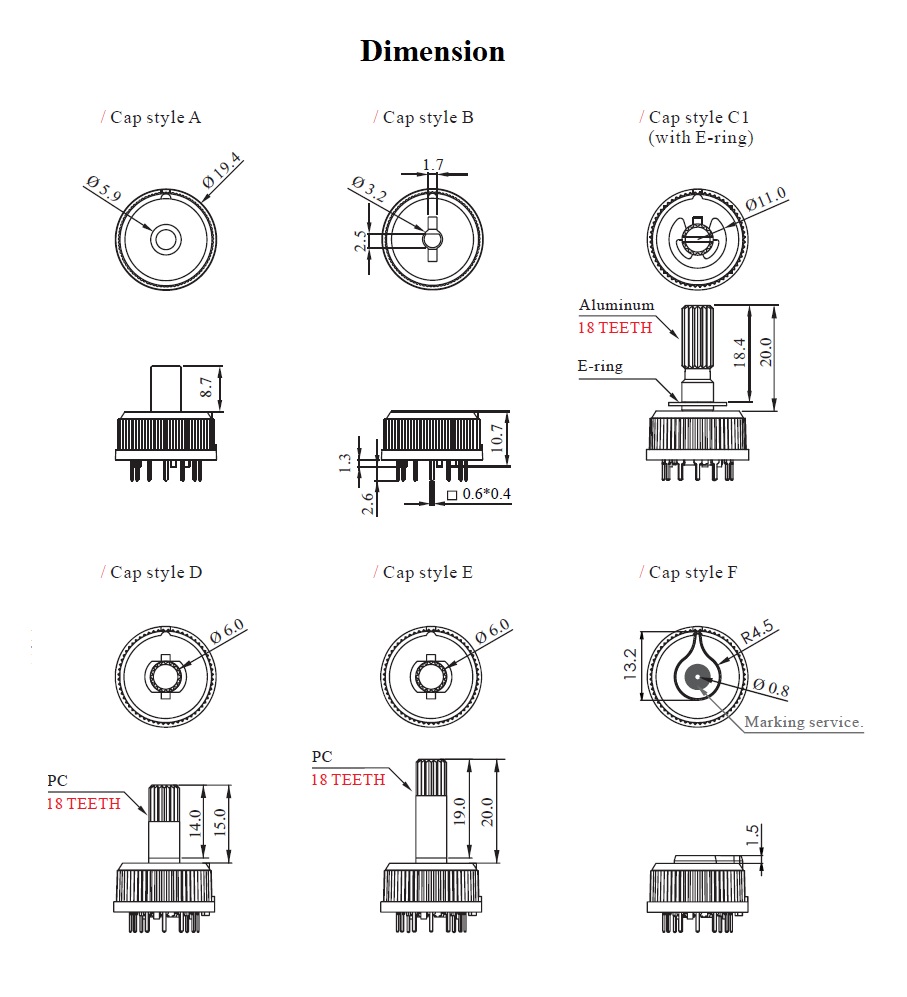

Dimension of SRS5 rotary switch

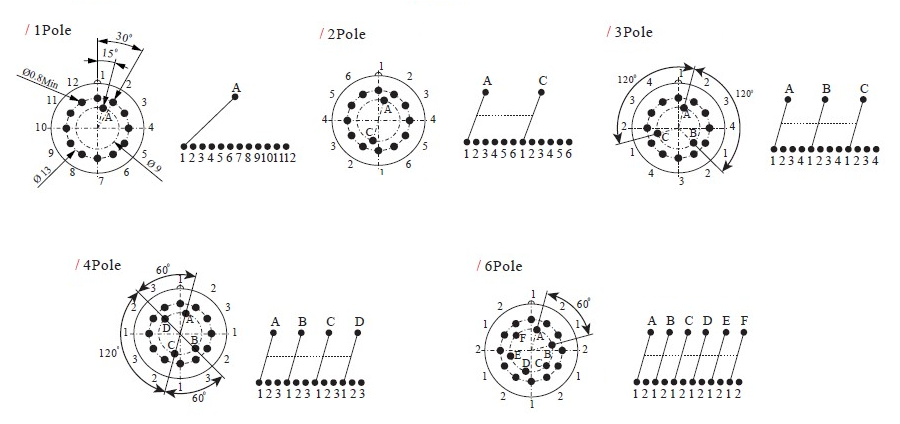

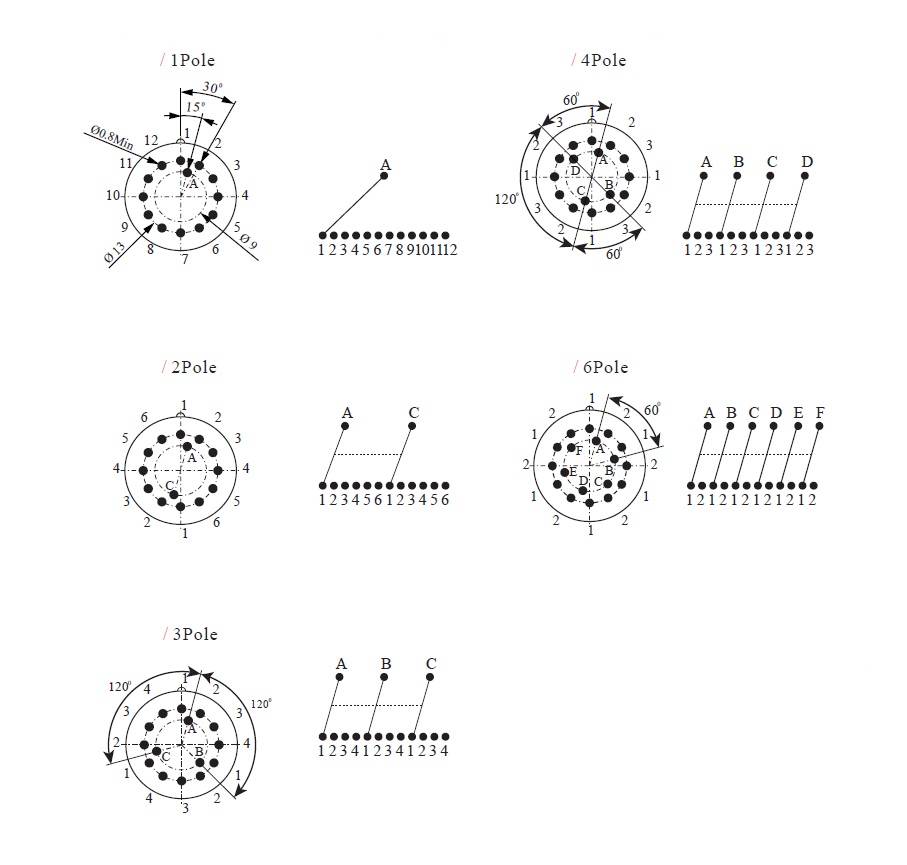

PCB Layout & Contact configuration

Download

Sample Order

  • Module
  • Part No
  • Description
  • SRS5-C1-12-NS
    • C style cap with E ring
    • 1 Pole 12 Position
    • Non-Shorting
  • TWD 140
    - +
  • SRS5-B-12-NS
    • B style cap
    • 1 Pole 12 Position
    • Non-Shorting
  • TWD 120
    - +
  • SRS5-C-22-NS
    • C style cap
    • 2 Pole 6 Position
    • Non-Shorting
  • TWD 140
    - +
  • SRS5-B-22-NS
    • B style cap
    • 2 Pole 6 Position
    • Non-Shorting
  • TWD 130
    - +

*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
* All products comply with RoHs and REACH
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
