SPM
- SPDT pushbutton
- Long operating life
- Long travel
- no LED
- General Specifications
- Circuit/Contacts SPDT / 100mOhm Max.(initial)
- Switching rating 50mA @ 12VDC
- Terminal Through hole(TH) pin
- Total travel 0.6mm ± 0.3mm
- Operating force 200gf ± 100gf
- Mechanical life 500,000 cycles Min.
- Front protection -
- Illumination -
- Materials
- Cap/Lens Polyamide (PA)
- Base/Housing Polyamide (PA)
- Terminal Brass with gold plating

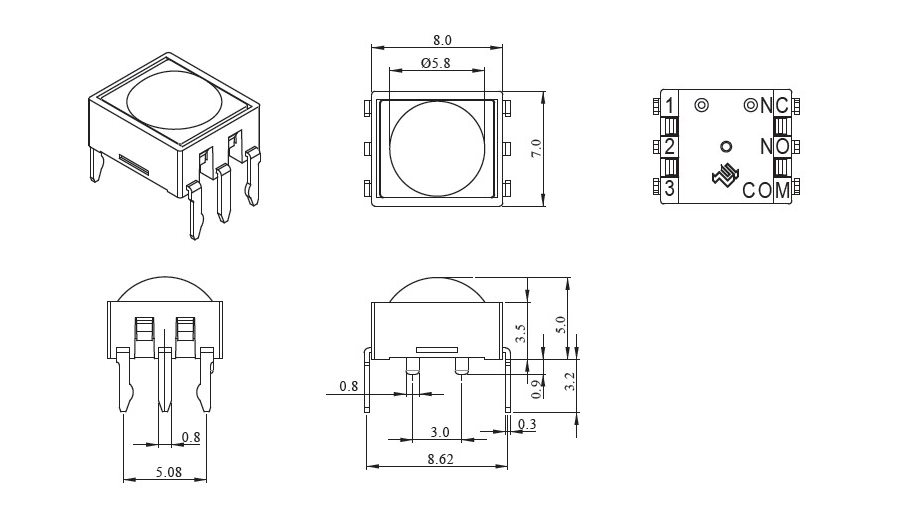

Dimension

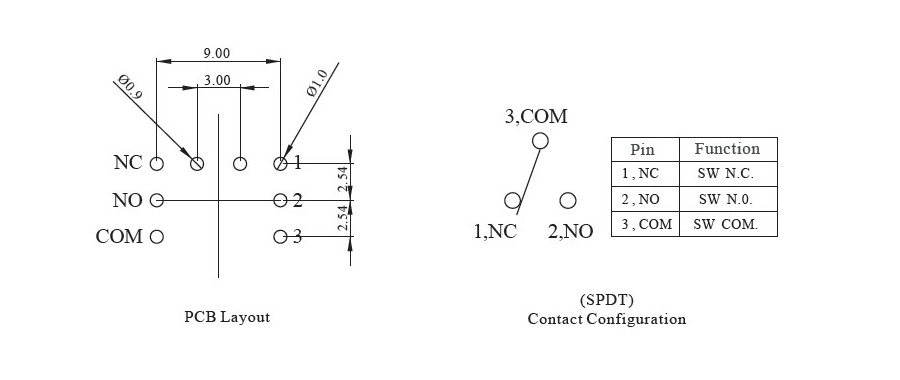

PCB layout & Contact configuration
Download
Sample Order
- Module
- Part No
- Description
-
- SPM
-
- SW SPM,SPDT,pushbutton switch
-
