SPLG Tactile Switch

Crisp tactile feedback with LED lighting.
Compatible with smart cap system for easy style customization.
Applications: Perfect for fashion-forward consumer products, compact control panels, and interactive devices demanding both functionality and refined design.

General Specifications
Circuit/Contacts SPST (push ON)
Switching rating 12V DC @ 50mA
Terminal Through hole(TH)
Total travel 0.3mm ± 0.1mm
Operating force 300gf ± 100gf
Mechanical life 5,000,000 cycles min.
Front protection IP4X
Illumination illuminated

Materials
Cap/Lens PC(Polycarbonate)
Stem/Reflector PA(Polyamide)
Base/Housing PA(Polyamide)
Terminal Brass with gold plating

SPL-Contact configuration Tactile Switch suppliers made in Taiwan-SHANPU

SPST Through Hole Lead Tactile Switch, push button switch manufacturer.

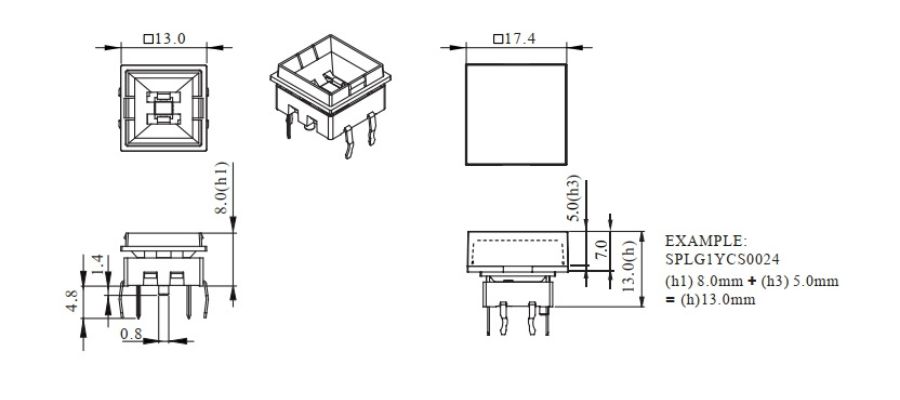

SPLG-Diagram Tactile Switch suppliers made in Taiwan-SHANPU

Q: Can I easily refresh the look of my SPLG tactile switch?
A: Absolutely. Smart Caps are interchangeable, allowing you to quickly swap cap shapes or finishes to match different design themes or brand aesthetics.

Download

SPLG Tactile Switch 11.5 Smart Cap use for SPLG Tactile Switch
