SPL16 Tactile Switch

SPST push-ON operation with distinct tactile feedback.
Reliable mechanical performance and LED compatibility.
Applications: Suitable for general-purpose control buttons in electronics, instrumentation, and user interfaces needing tactile responsiveness.

General Specifications
Circuit/Contacts SPST (push ON)
Switching rating 12V DC @ 50mA
Terminal Through hole(TH)
Total travel 0.3mm ± 0.1mm
Operating force 300gf ± 100gf
Mechanical life 5,000,000 cycles min.
Front protection IP4X
Illumination illuminated

Materials
Cap/Lens PC(Polycarbonate)
Stem/Reflector PA(Polyamide)
Base/Housing PA(Polyamide)
Terminal Brass with gold plating

SPL-Contact configuration Tactile Switch suppliers made in Taiwan-SHANPU

SPST Through Hole Lead Tactile Switch, push button switch manufacturer.

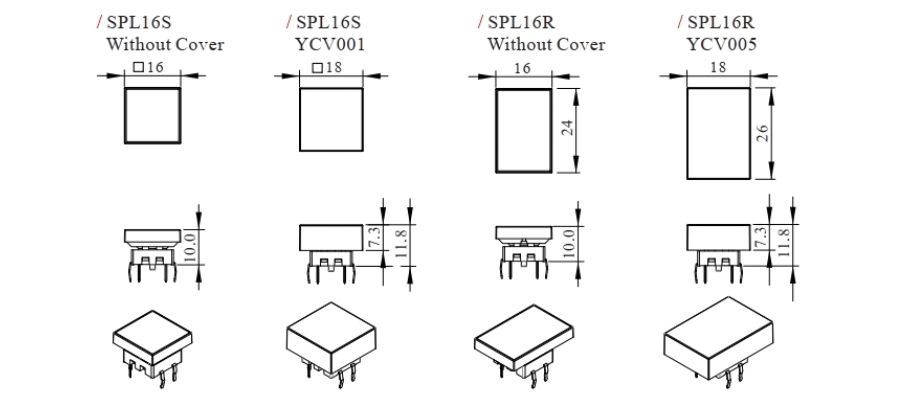

SPL16-Diagram Tactile Switch suppliers made in Taiwan-SHANPU

Q: Why would I choose a square or rectangular cap shape?
A: Square and rectangular caps aid visual alignment and provide consistent tactile feedback across flat tops, making them both user-friendly and visually coherent.
