SPL15

Through-hole vertical mounting ensured for enhanced mechanical stability.
Clear tactile click feedback with durable performance.

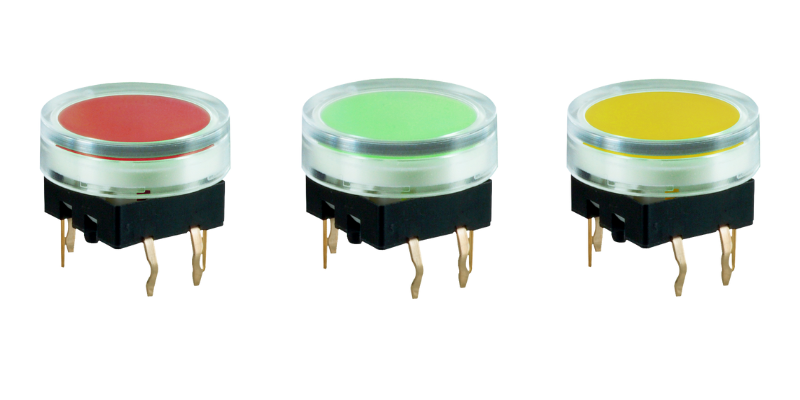

LED lighting available in various colors for visual cues.
Long mechanical lifespan of at least 5 million cycles.
Applications: Suited for industrial control panels, professional audio/video equipment, instrumentation, and any devices needing reliable tactile input plus visual indication.

General Specifications
Circuit/Contacts SPST (push ON)
Switching rating 12V DC @ 50mA
Terminal Through hole(TH)
Total travel 0.3mm ± 0.1mm
Operating force 300gf ± 100gf
Mechanical life 5,000,000 cycles min.
Front protection IP4X
Illumination illuminated

Materials
Cap/Lens PC(Polycarbonate)
Stem/Reflector PA(Polyamide)
Base/Housing PA(Polyamide)
Terminal Brass with gold plating

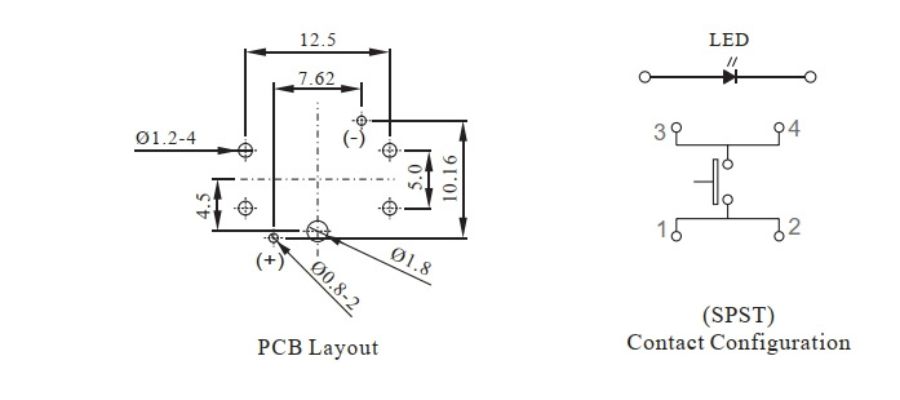

SPL-Contact configuration Tactile Switch suppliers made in Taiwan-SHANPU

SPST Through Hole Lead Tactile Switch, push button switch manufacturer.

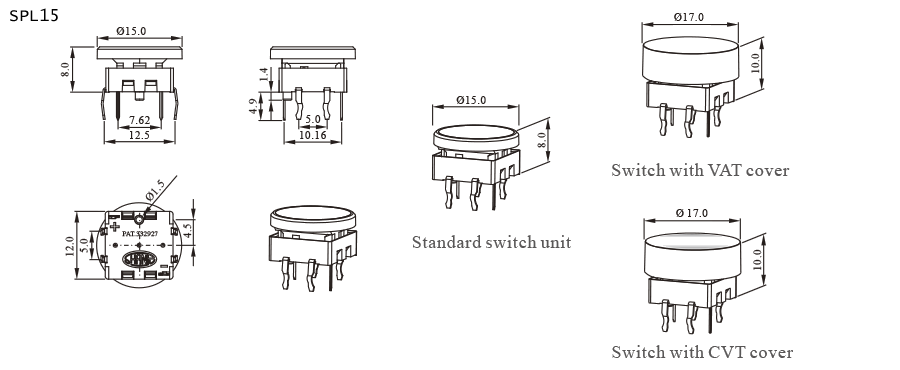

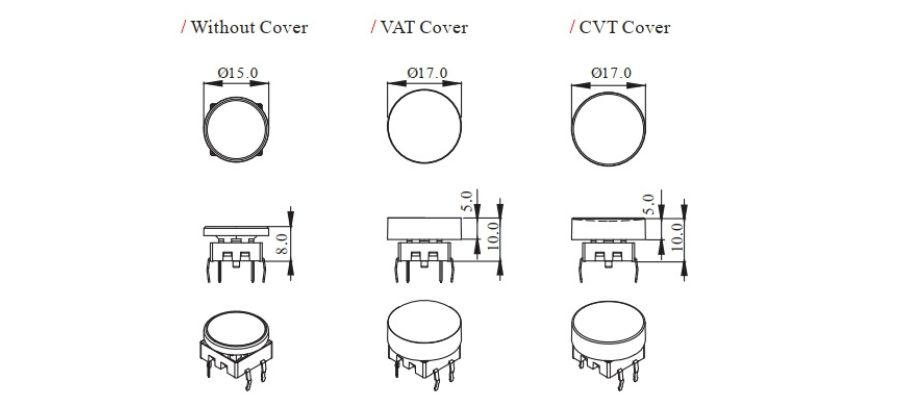

SPL15-Diagram Tactile Switch suppliers made in Taiwan-SHANPU

Q: How does the SPL15 Series enhance user interface design?
A: The SPL15 switches provide full-face LED illumination and can be customized with laser-engraved text or graphics—offering both visual clarity and branding flexibility.
