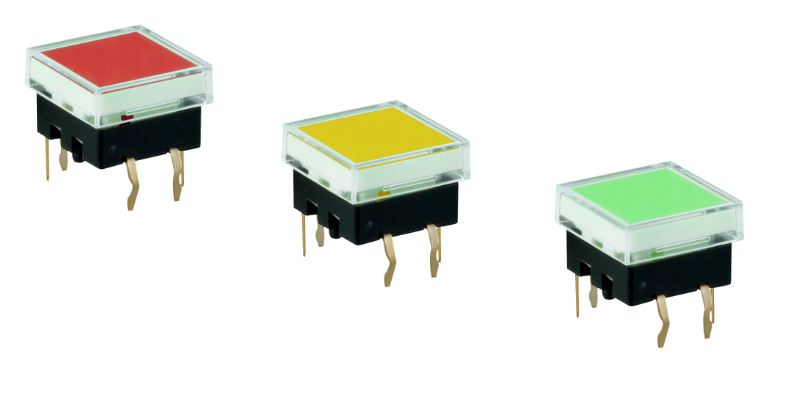

SPL12

Bright, full-face illumination from high-brightness LEDs.
Slim, compact 12 mm × 12 mm footprint.
Customizable caps and covers (colors, shapes) with laser-engraving options.
Applications: Ideal for smart home control panels, consumer electronics, medical instruments, and industrial equipment requiring visible and reliable tactile controls.

General Specifications
Circuit/Contacts SPST (push ON)
Switching rating 12V DC @ 50mA
Terminal Through hole(TH)
Total travel 0.3mm ± 0.1mm
Operating force 300gf ± 100gf
Mechanical life 5,000,000 cycles min.
Front protection IP4X
Illumination illuminated

Materials
Cap/Lens PC(Polycarbonate)
Stem/Reflector PA(Polyamide)
Base/Housing PA(Polyamide)
Terminal Brass with gold plating

SPL-Contact configuration push button switch suppliers made in Taiwan-SHANPU

Q: Can SPL12 tactile switches be used in space-limited designs?
A: Yes. With its compact 12 mm × 12 mm footprint and slim profile, the SPL12 Series is perfect for control panels, handheld devices, and other applications where space is limited.

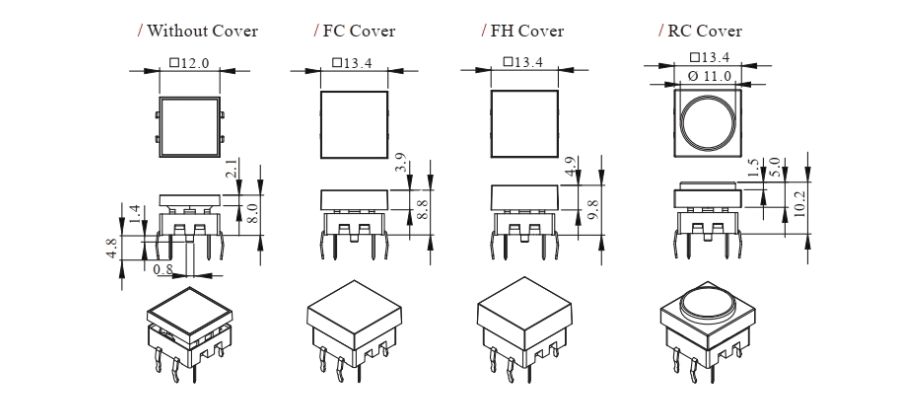

SPL12-Diagram(FC FH RC)push button switch suppliers made in Taiwan-SHANPU

Without Cover 口12 mm h:8mm Without Cover
FC Cover 口13.4mm h: 8.8mm Flat/Clear Cover
FH Cover 口13.4mm h: 9.8mm Flat/Clear Cover
RC Cover 口13.4mm Ø 11.0 h: 10.2mm Round /Clear Cover

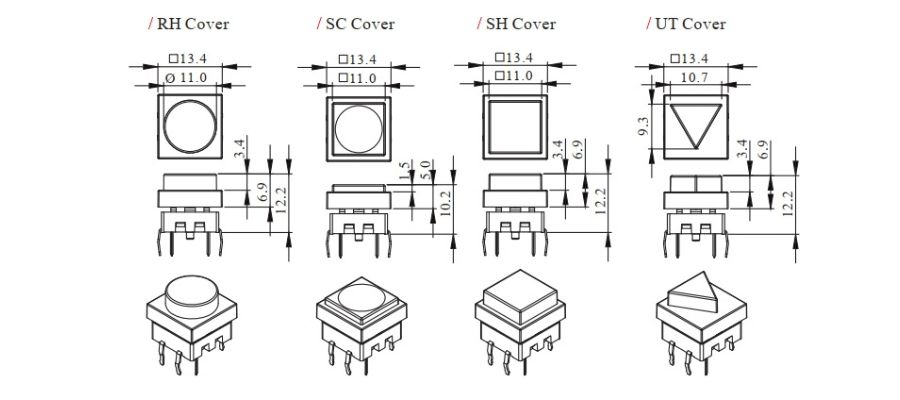

SPL12-Diagram(RH SC SH UT)push button switch suppliers made in Taiwan-SHANPU

RH Cover 口13.4mm Ø 11.0 h: 12.2mm Round(High)/Clear Cover
SC Cover 口13.4mm 口11mm h: 10.2mm Square/Clear Cover
SH Cover 口13.4mm 口11mm h: 12.2mm Square (High)/Clear Cover
UT Cover 口13.4mm 口10.7mm h: 12.2mm UP Triangle/Clear Cover

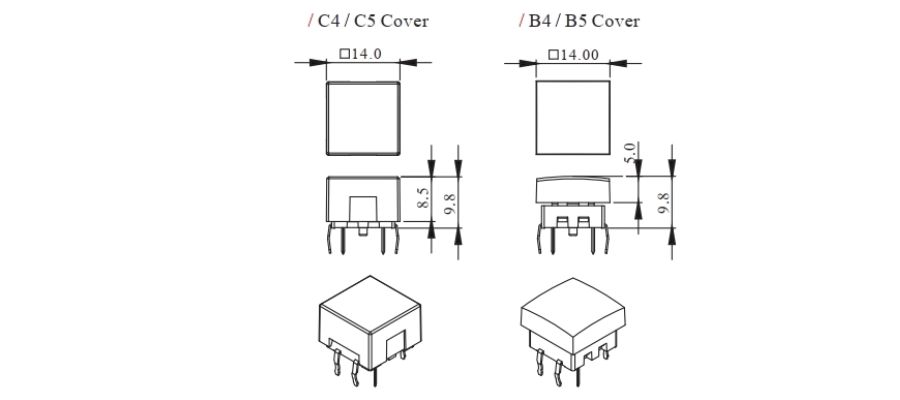

SPL12-Diagram(C4 C5 B4 B5)push button switch suppliers made in Taiwan-SHANPU

C4 Cover 口14 mm h: 9.8mm Flat cover/Whiter Cover
C5 Cover 口14 mm h: 9.8mm Flat cover/Foggyr Cover
B4 Cover 口14 mm h: 9.8mm Raised cover/White Cover
B5 Cover 口14 mm h: 9.8mm Raised cover /Foggyr Cover
