SPJ
- Compact right angle design fits tight assemblies
- Available in DIP and SMD mounting configurations
- Clear illumination ideal for indication or status
- Long mechanical life up to 1,000,000 cycles
- Application: medical device, networking equipment
- General Specifications
- Circuit/Contacts SPST (push ON)
- Switching rating 50mA @ 12V DC max
- Terminal Through hole (TH) or Surface Mounting Divice (SMD)
- Total travel 0.3mm ± 0.1mm
- Operating force 200gf ± 50gf
- Mechanical life 1,000,000 cycles Min.
- Illumination Red, Yellow, Green, White, Blue LED
- Materials
- Cap/Lens Polycarbonate (PC)
- Stem/Reflector Polyamide (PA)
- Base/Housing Polyamide (PA)
- Terminal Brass with gold plating
- Action dome Stainless steel with silver plating

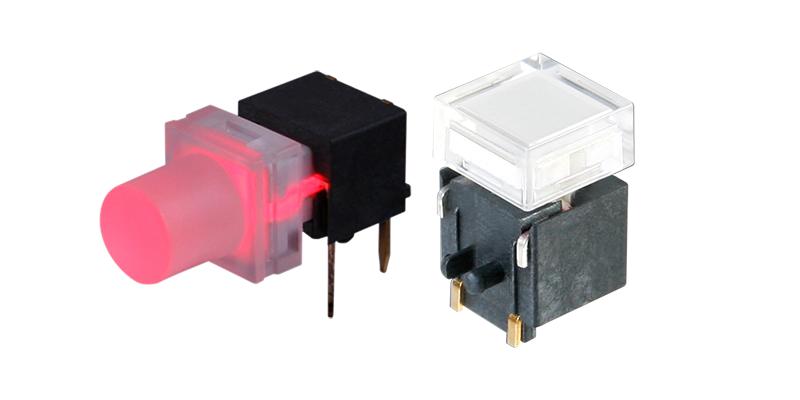

What’s SPJ Right Angle Illuminated Tactile Switch?
SHANPU’s SPJ is right angle LED illuminated tactile switch design, it fits tight assemblies. Available in Through Hole (TH) and SMD options. SPJ 6×6mm (6mm sq.) stem can match SHANPU’s 6 Smart Cap, Smart Adapter with 9 Smart Cap or 12 Smart Cap, more than fifty combinations.

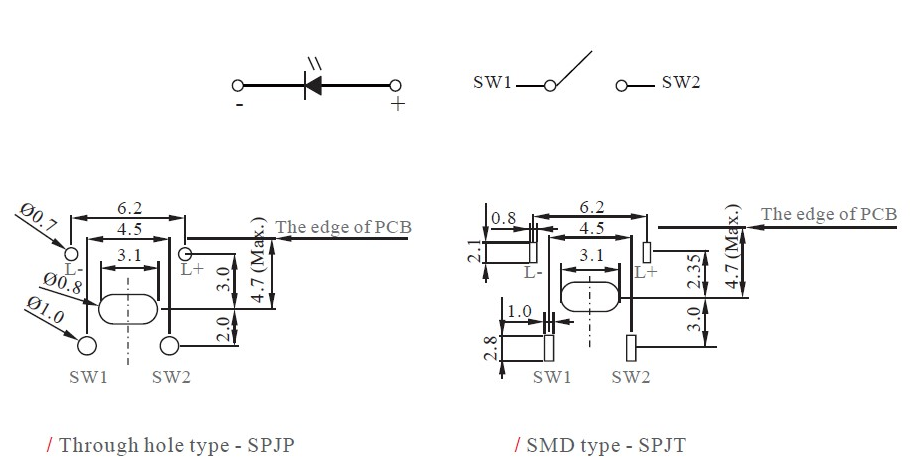

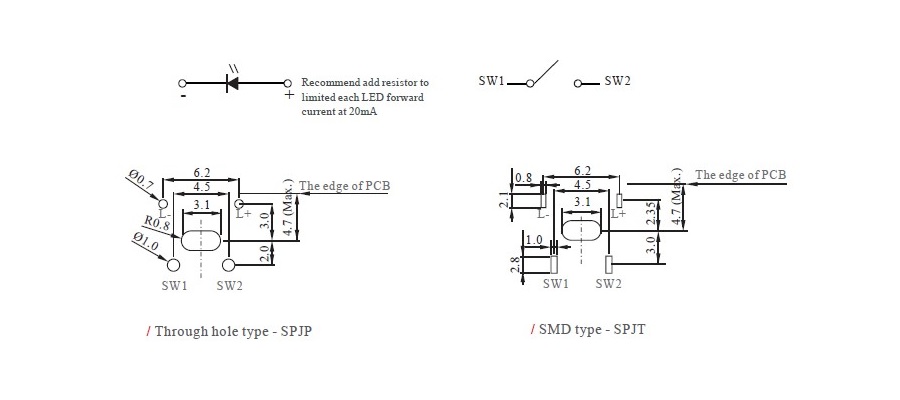

Circuit diagram & PCB layout for SPJ Right Angle Illuminated Tactile Switch
SPJ is a mechanical contact and is separate from LED pins, the illuminated switch with single LED. And it has Through Hole (TH) and Surface Mount Device (SMD) terminal type.

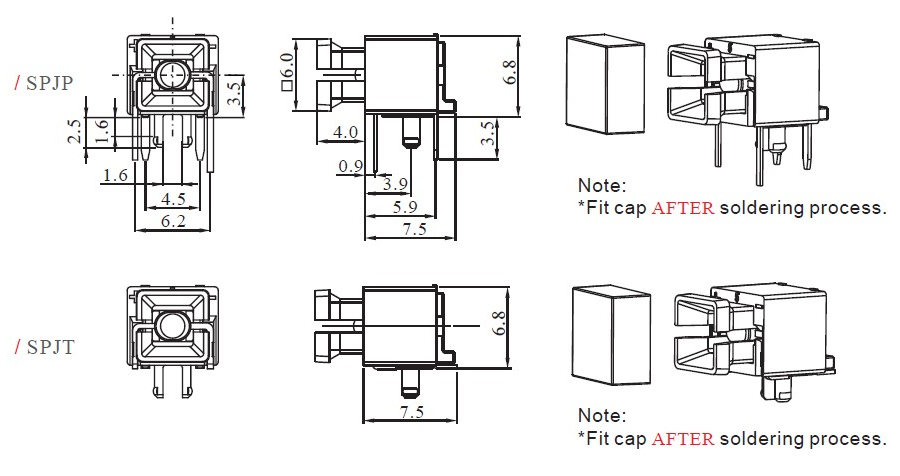

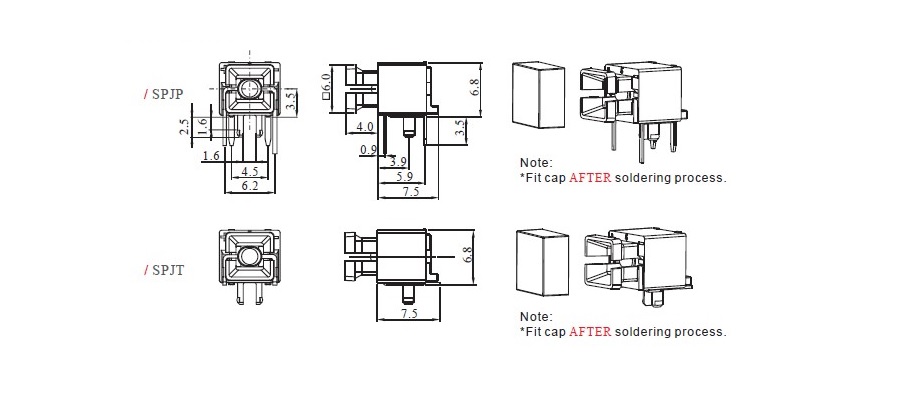

Dimension for SPJ Right Angle Illuminated Tactile Switch
SPJP is Through Hole (TH) terminals type, which can be hand soldered or wave soldered; SPJT is SMD terminals type that have to fit a cap after reflow oven soldering process.
Download
SPJ Right Angle Illuminated Tactile Switch
6 Smart Cap use for SPJ Right Angle Illuminated Tactile Switch
Adapter use for SPJ Right Angle Illuminated Tactile Switch
9 Smart Cap use for Adapter + SPJ Right Angle Illuminated Tactile Switch
12 Smart Cap use for Adapter + SPJ Right Angle Illuminated Tactile Switch
Sample Order
- Module
- Part No
- Description
-
.png)
- SPJP4YCA0434
-
- Through hole (TH) type
- White LED
- White square 7.4mm flat cap
- Made by order no stock, average lead time 2 to 4 weeks after received the payment.
-
TWD 80
- +
-
.png)
- SPJP7YCA043TD
-
- Through hole (TH) type
- Blue LED
- Transparent square 7.4mm flat cap with WH diffuser
- Made by order no stock, average lead time 2 to 4 weeks after received the payment.
-
TWD 70
- +
-
.png)
- SPJT4YCA043TD
-
- SMD type
- White LED
- Transparent square 7.4mm flat cap with WH diffuser
- Made by order no stock, average lead time 2 to 4 weeks after received the payment.
-
TWD 85
- +
-
.png)
- SPJT7YCA0527
-
- SMD type
- Blue LED
- Blue hollow cylinder cap
- Made by order no stock, average lead time 2 to 4 weeks after received the payment.
-
TWD 75
- +
