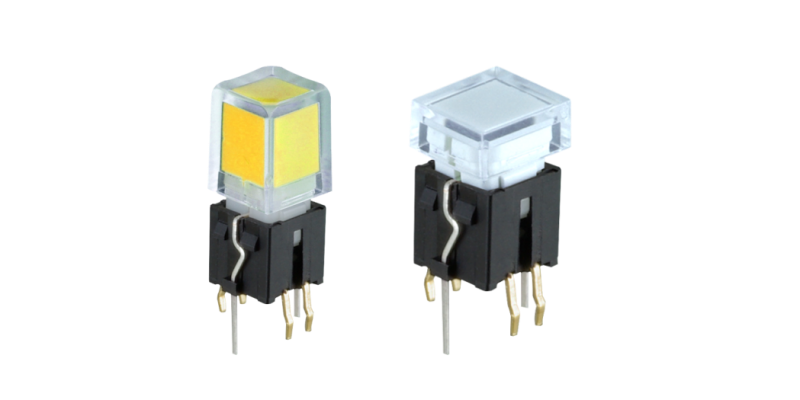

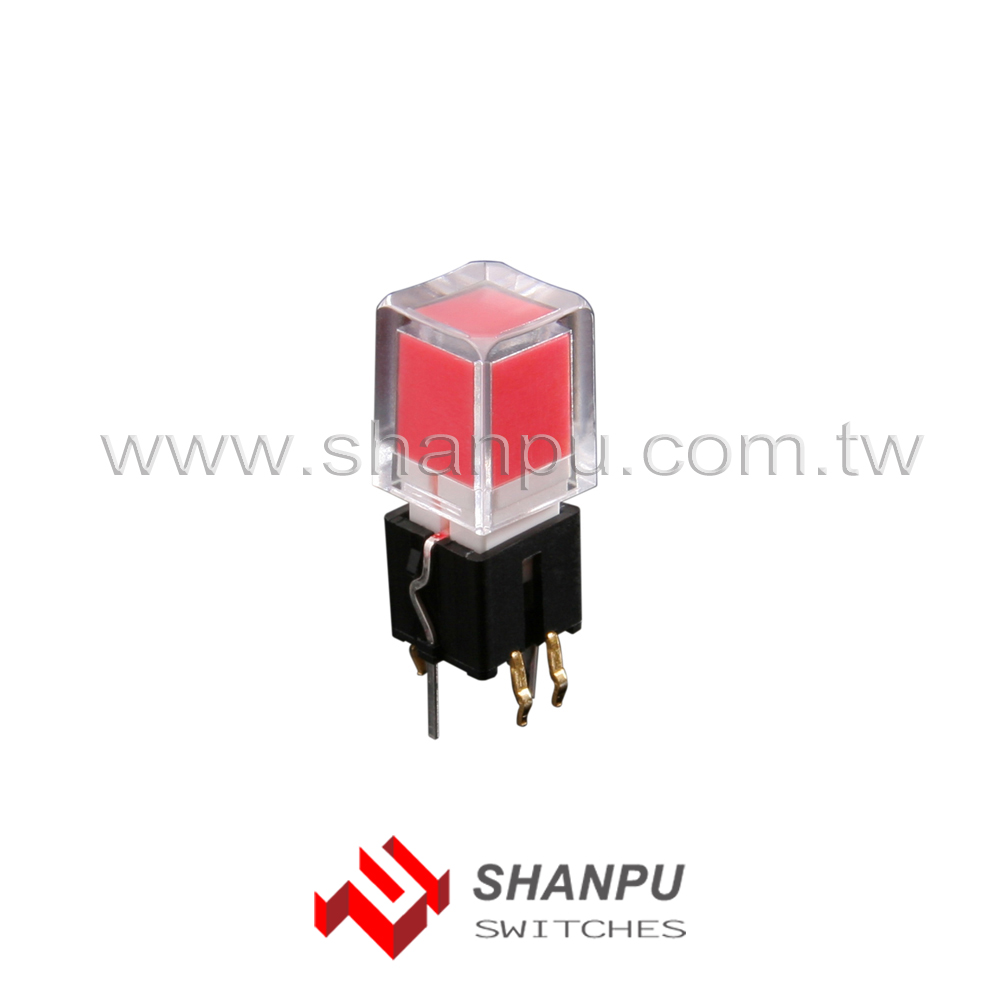

SPH2
- SHP2N long travel silent LED push button switch
- SPH2T & SPH2S LED Illuminated tactile switch
- Improve visibility in low-light environments
- Can be matched many caps sharps
- Application: switcher device, broadcasting equipment
- General Specifications
- Circuit/Contacts SPST (push ON)
- Switching rating 12V DC @ 50mA
- Terminal Through hole (TH)
- Total travel SPH2N: 1.0mm ± 0.3mm; SPH2T: 0.4mm ± 0.2mm; SPH2S: 0.2mm ± 0.1mm
- Operating force SPH2N: 60gf ± 40gf; SPH2T: 230gf ± 50gf; SPH2S: 190gf ± 50gf
- Mechanical life 1,000,000 cycles Min.
- Illumination w/o, Red, Yellow, Green, White, Pure Green, Blue LED
- Materials
- Cap/Lens Polyamide (PA) / Polycarbonate (PC)
- Stem/Reflector Polyoxymethylen (POM)
- Base/Housing Polyamide (PA)
- Terminal Brass with gold plating
Why is the SPH2 both a push button and a tactile switch?
SHANPU’s SPH2 series have three types, SPH2N is a small silent push button switch, when you press, your finger feel smooth and noiseless; SPH2T & SPH2S are tactile switches, when you press, you will hear click sound. They all with LED lighting and through hole terminals, and have various appearances, housing versions and many cap sharps can choose.

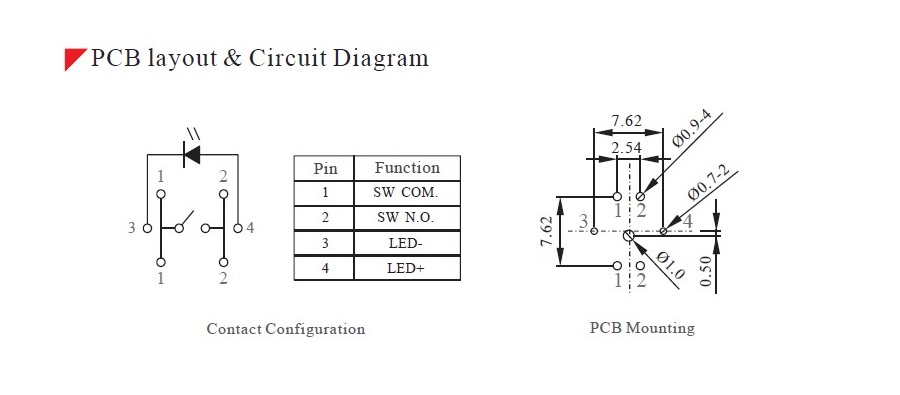

Circuit diagram & PCB layout for SPH2 LED push button & tactile switch
SHANPU's SPH2 is a mechanical contact and is separate from LED pins, the illuminated switch with single LED, please follow below contact circuit and configuration.

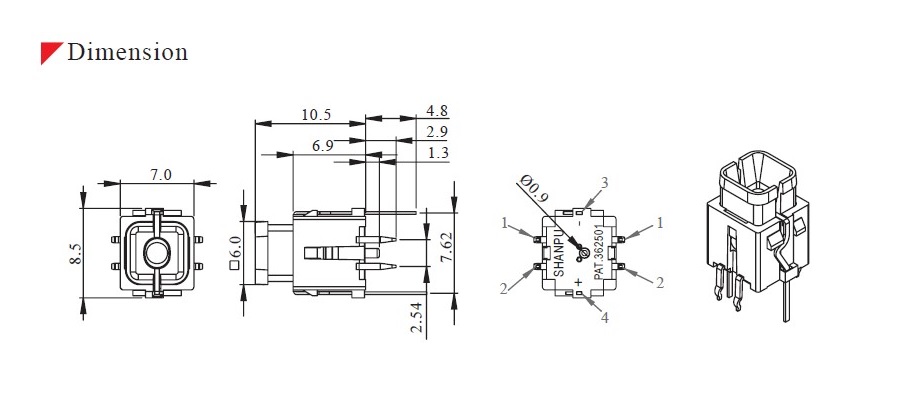

Main Body Dimension of SPH2 LED push button & tactile switch
SPH2 6*6mm reflector can be matched SHANPU’s 6 Smart Cap or Adapter with 9 Smart Cap or Adapter with 12 Smart Cap, provide different visual and machinery requirements.

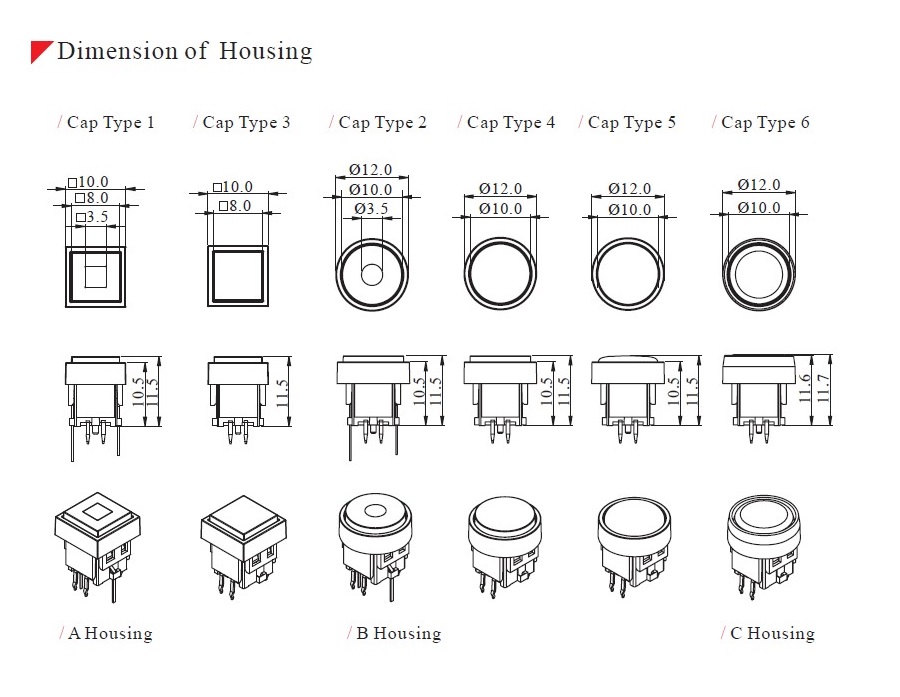

Dimension of Housing for SPH2 LED push button & tactile switch
SPH2 housing versions can reduce the gap between the panel and the switch, and prevent the panel from getting stuck on the switch. LED light can be transmitted from the center point of the cap.
