SPG5
- Push button with momentary action
- Silent & smooth when pressing
- Long mechanical life

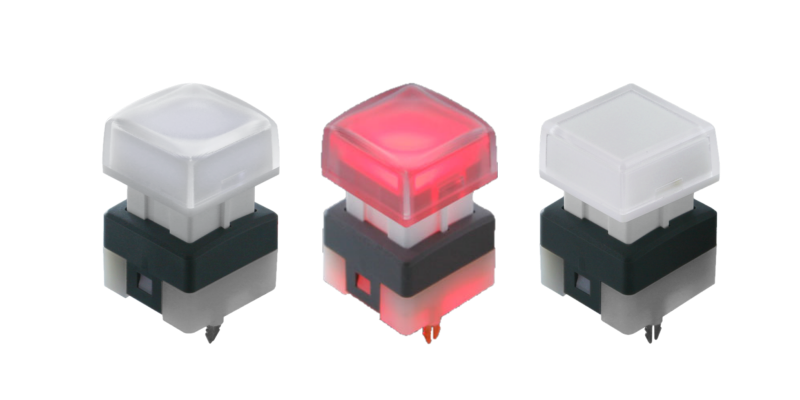

- RGB LED Illuminated
- Application: audio-visual and broadcasting tools
- General Specifications
- Circuit/Contacts SPST (push ON)
- Switching rating 48V DC @ 50mA
- Terminal Through hole (TH)
- Total travel 4.5mm ± 0.2mm
- Operating force 250gf ± 50gf
- Mechanical life 5,000,000 cycles min.
- Illumination Pure Green, Red & Pure Green, RGB LED
- Materials
- Cap/Lens PC (Polycarbonate)
- Stem/Reflector POM (Polyoxymethylene)
- Base/Housing PA (Polyamide)
- Terminal Brass with gold plating
How does SHANPU SPG5 push button enhance broadcasting desks?
The SPG5 button switch delivers RGB LED effects, silent actuation, and robust mechanical life, offering precise tactile performance and desigh flexibility with custom laser engraving.

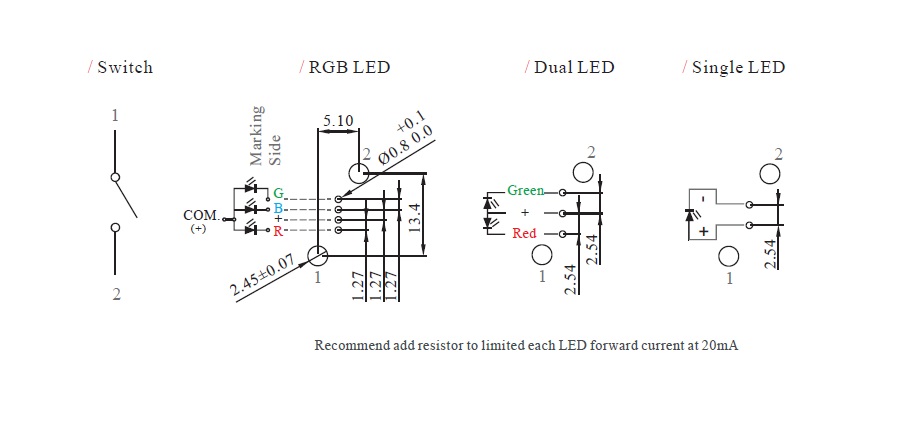

Contact configuration & PCB layout for SPG5 silent pushbotton switch.
SHANPU's SPG5 pushbotton switch is a mechanical contact and is separate from LED pins, the illuminated switch with LED, please follow below contact circuit and configuration.
Download
Sample Order
- Module
- Part No
- Description
-
- SPG5-9-4-FM
-
- Silent pushbutton switch
- 4.5mm travel
- Tri-Color (RGB) LEDs
- 15.2mm square white cap
- Flat matt cover
-
TWD 270
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
* All products comply with RoHs and REACH
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
