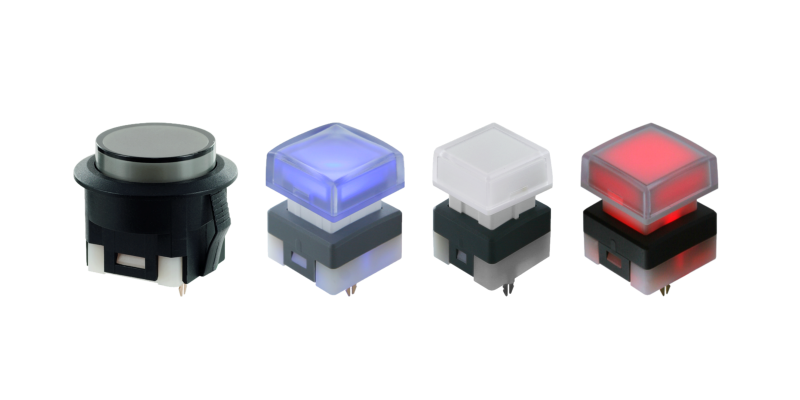

SPG4
- Push button with momentary action
- Silent & smooth when pressing
- DIP types and panel mount
- RGB LED Illuminated
- Application: professional audio and broadcast applications
- General Specifications
- Circuit/Contacts SPST (push ON)
- Switching rating 48V DC @ 50mA
- Terminal Through hole (TH)
- Total travel 4.5mm ± 0.2mm
- Operating force 250gf ± 50gf
- Mechanical life 5,000,000 cycles min.
- Illumination Pure Green, Red & Pure Green, RGB LED
- Materials
- Cap/Lens PC (Polycarbonate)
- Stem/Reflector POM (Polyoxymethylene)
- Base/Housing PA (Polyamide)
- Terminal Brass with gold plating
Why is SHANPU SPG4 illuminated push button suitable for consoles?
The SPG4 with silent press, RGB lighting, long service life and engraving customization, it provides precise and stylish integration into media and broadcasting control units.

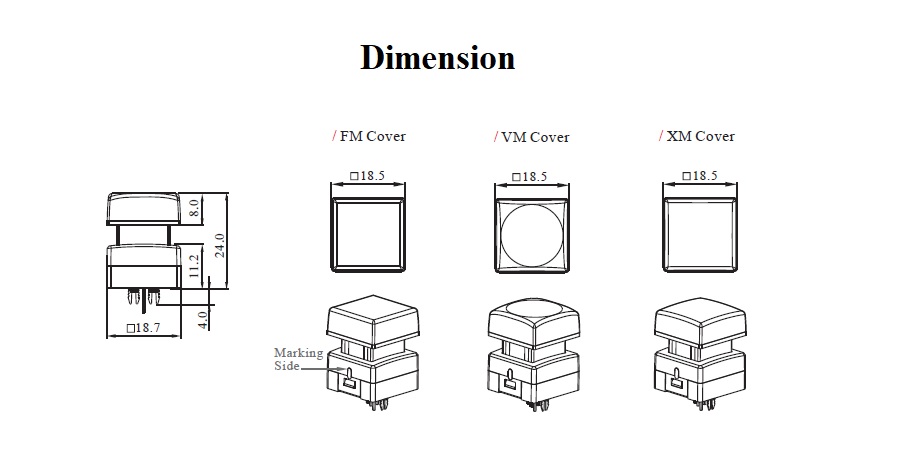

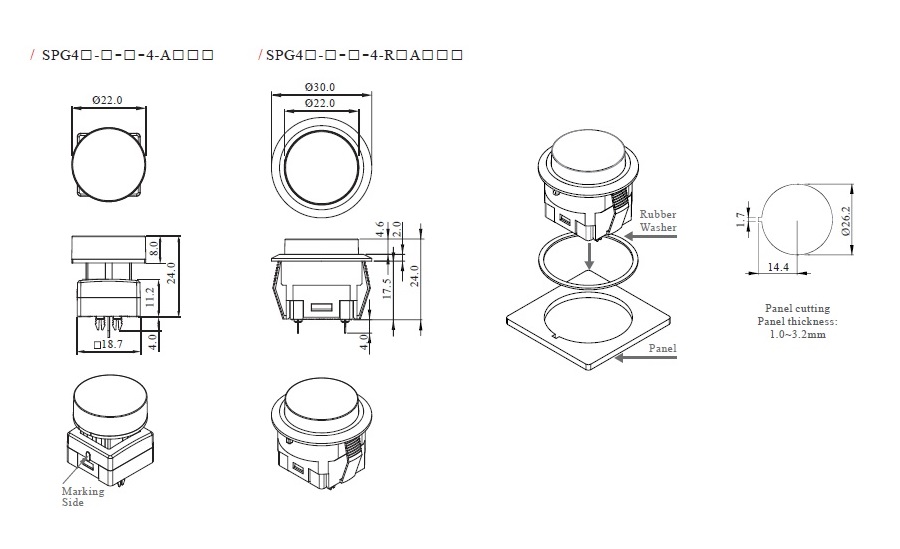

Dimension & panel cutting & installation note for SPG4 round cap silent pushbutton switch.
Contact configuration & PCB layout for SPG4 silent pushbotton switch.

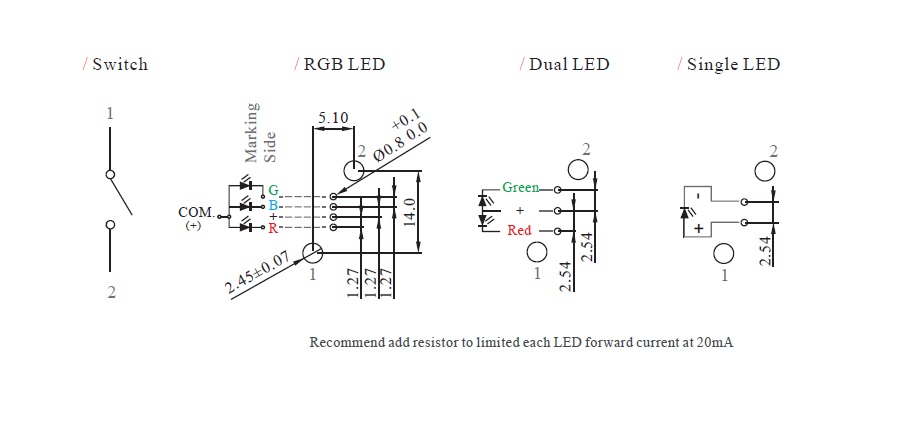

SHANPU's SPG4 pushbotton switch is a mechanical contact and is separate from LED pins, the illuminated switch with LED, please follow below contact circuit and configuration.
