SPG3 LED Push Button Switch
- Illuminated push button switch
- LEDs can be controlled individually
- Available in various LED colors
- Improve visibility in low-light environments
- Application: audio-visual equipment, broadcasting equipment
- General Specifications
- Circuit/Contacts SPST (push ON)
- Switching rating 48V DC @ 50mA
- Terminal Through hole (TH)
- Total travel 4.5mm ± 0.2mm
- Operating force 250gf ± 50gf
- Mechanical life 5,000,000 cycles min.
- Illumination Pure Green, Red & Pure Green, RGB LED
- Materials
- Cap/Lens PC (Polycarbonate)
- Stem/Reflector POM (Polyoxymethylene)
- Base/Housing PA (Polyamide)
- Terminal Brass with gold plating

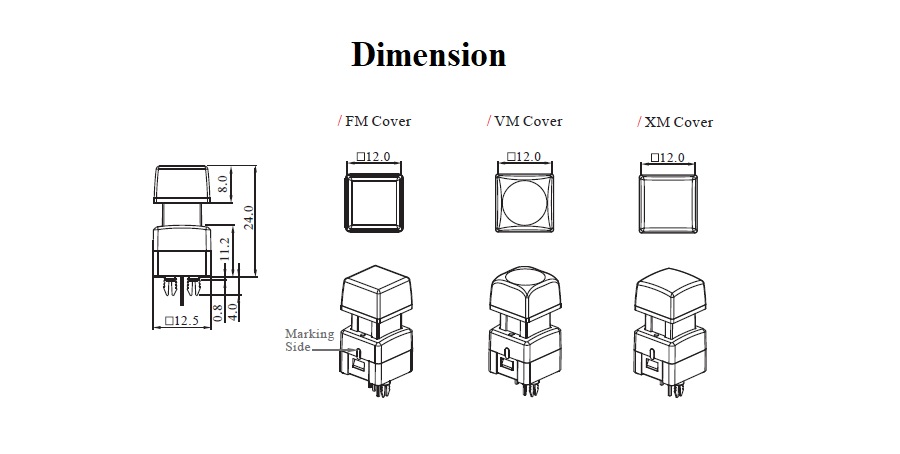

What’s SPG3 LED push button switch?
SHANPU SPG3 series, noiseless type push button switch integrated LED lighting, the operating travel is long and your fingers can clearly feel the touch of pressing.
Contact configuration & PCB layout for SPG3 LED push button switch.

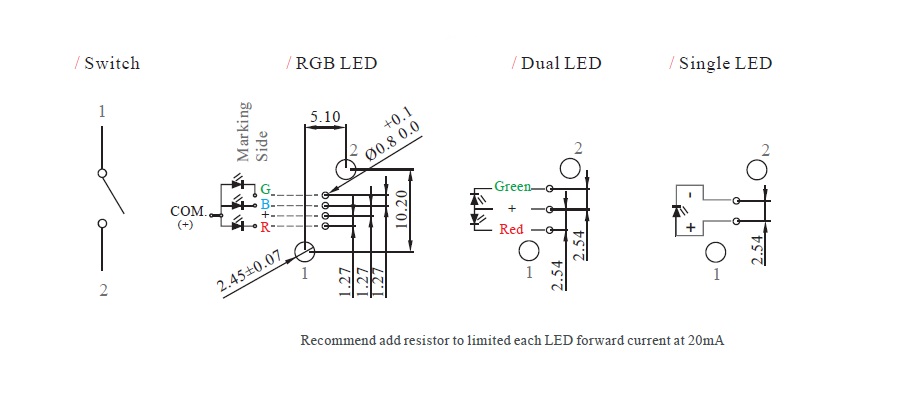

SHANPU's SPG3 silent switch is a mechanical contact and is separate from LED pins, the illuminated switch with LED, please follow below contact circuit and configuration.
Download
Sample Order
- Module
- Part No
- Description
-
- SPG3-9-4-FM
-
- LED push button switch
- 4.5mm travel
- Tri-Color (RGB) LEDs
- 12mm square white cap
- Flat matt cover
-
TWD 250
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
* All products comply with RoHs and REACH
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
