SPG1 & SPG2
- Push button, momentary operation
- Smooth and noiseless press feel
- Long-lasting durability
- RGB LED lighting option
- Application: audio devices, broadcast systems
- General Specifications
- Circuit/Contacts SPST (push ON)
- Switching rating 12V DC @ 100mA
- Terminal Through hole (TH)
- Total travel SPG1: 4.5mm ± 0.5mm; SPG2: 3.5mm ± 0.5mm
- Operating force 200gf ± 50gf
- Mechanical life 5,000,000 cycles min.
- Illumination Pure Green, Red & Pure Green, RGB LED
- Materials
- Cap/Lens PC (Polycarbonate)
- Stem/Reflector POM (Polyoxymethylene)
- Base/Housing PA (Polyamide)
- Terminal Brass with gold plating
How does SHANPU’s SPG1 & SPG2 LED push button switch support noise-sensitive areas?
The SPG1 & SPG2 button switch with noiseless pressing, RGB illumination, and strong durability, it provides precise momentary control, suitable for audio-visual and broadcasting equipment integration.

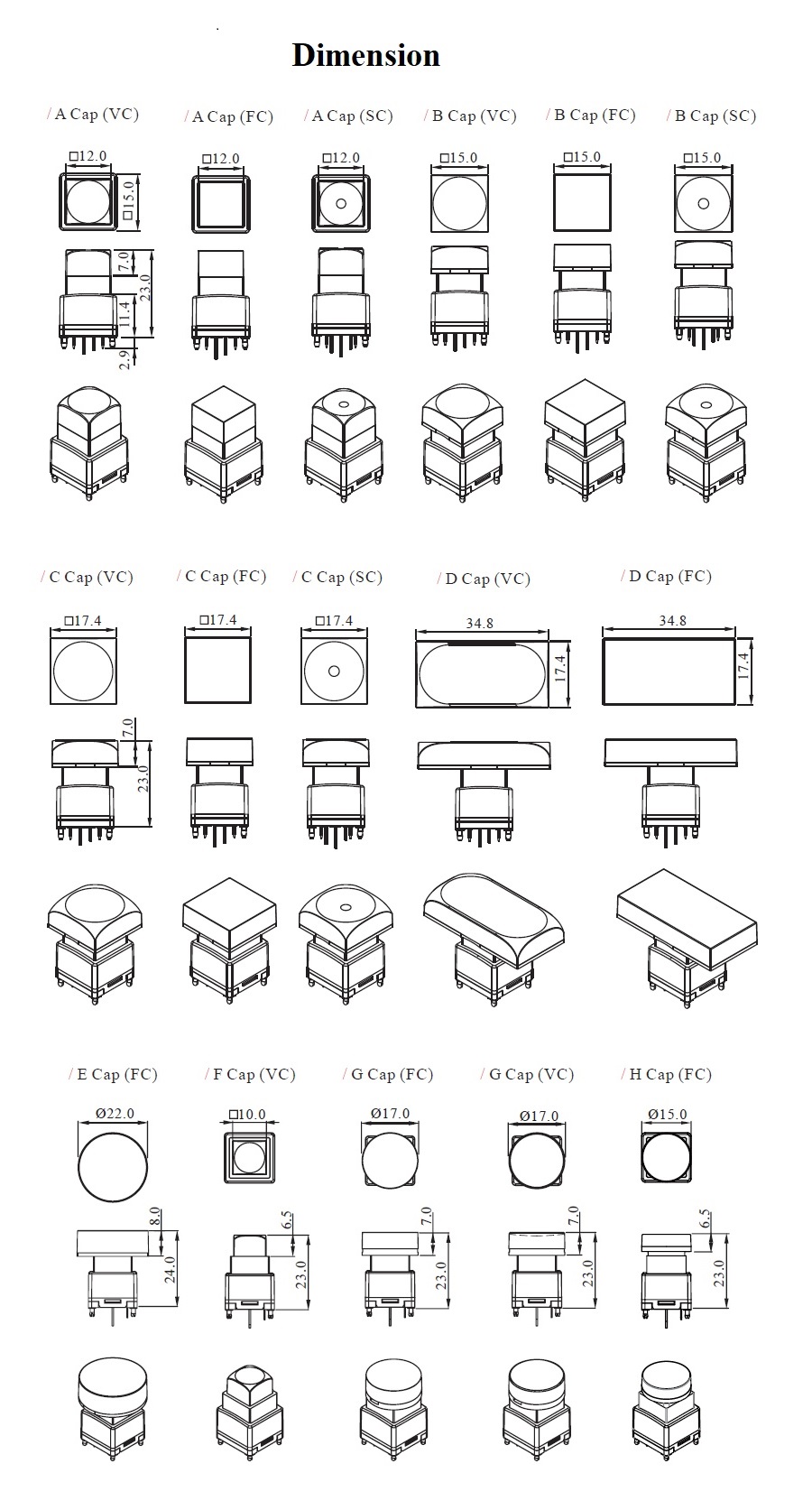

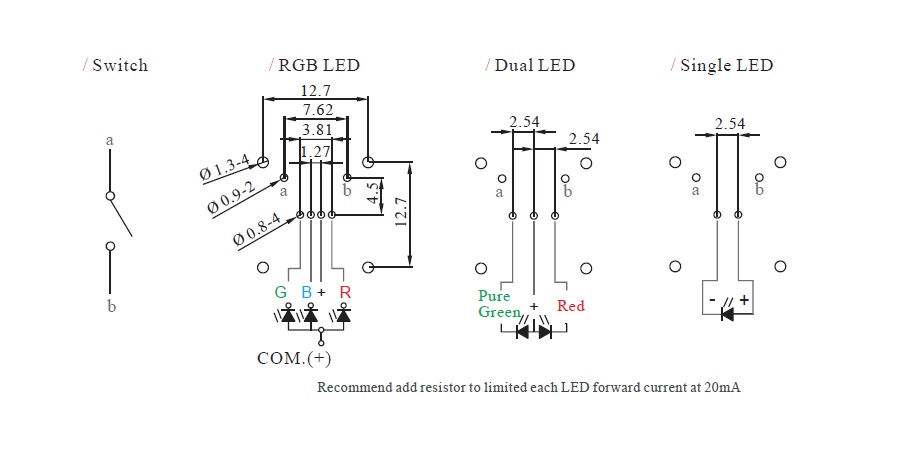

Contact configuration & PCB layout for SPG1 & SPG2 silent pushbutton switch.
SHANPU's SPG1 & SPG2 pushbotton switch is a mechanical contact and is separate from LED pins, the illuminated switch with LED, please follow below contact circuit and configuration.
Download
Sample Order
- Module
- Part No
- Description
-
- SPG1NB9B4VC
-
- Silent pushbutton switch
- 4.5mm travel and non tactile feeling
- Tri-Color (RGB) LEDs
- 15mm square white cap
- Concave clear cover
-
TWD 185
- +
-
- SPG1TB9D4VC
-
- Silent pushbutton switch
- 4.5mm travel and tactile feeling
- Tri-Color (RGB) LEDs
- 34.8*17.4mm rectangle white cap
- Concave clear cover
-
TWD 230
- +
-
- SPG2NB9E4FC
-
- Silent pushbutton switch
- 3.5mm travel and non tactile feeling
- Tri-Color (RGB) LEDs
- Diameter 22mm round white cap
- Concave clear cover
-
TWD 215
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
* All products comply with RoHs and REACH
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
