SPF Tactile Switch

Clear, crisp tactile feedback
Compact design for space-saving applications
Long operational life and durability
Ideal for consumer electronics, control panels, and more
Application: audio-visual equipment, broadcasting equipment, industrial control, automation equipment

General Specifications
Circuit/Contacts SPST (push ON)
Switching rating 12V DC @ 50mA
Terminal Through hole(TH) / SMD
Total travel 0.2mm ± 0.1mm
Operating force 200gf ± 50gf
Mechanical life 100,000 cycles min.
Front protection IP6X
Illumination illuminated

Materials
Cap/Lens PC(Polycarbonate)
Stem/Reflector PA(Polyamide)
Base/Housing PA(Polyamide) / Acrylonitrile Butadine Styrene (ABS)
Terminal Brass with gold plating

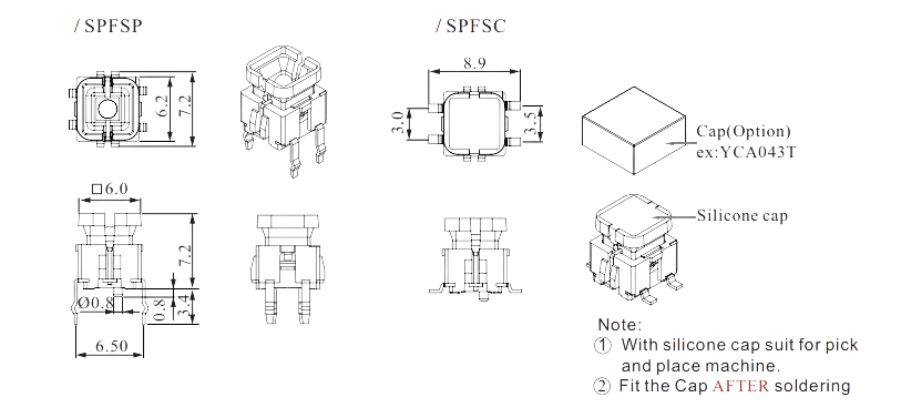

Diagram

Q: What are the key benefits of the SPF Tactile Switch?
A: The SPF Tactile Switch provides clear, tactile feedback with every press, ensuring excellent user interaction. It's compact, durable, and ideal for applications in consumer electronics, control panels, and more.

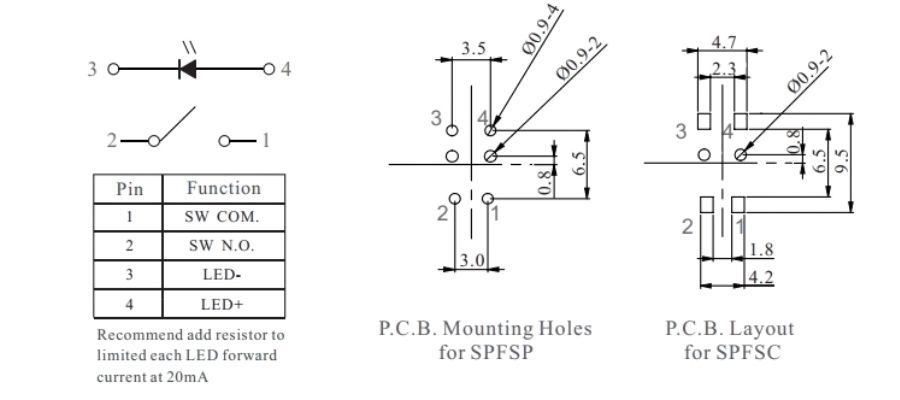

PCB layout & Circuit Diagram

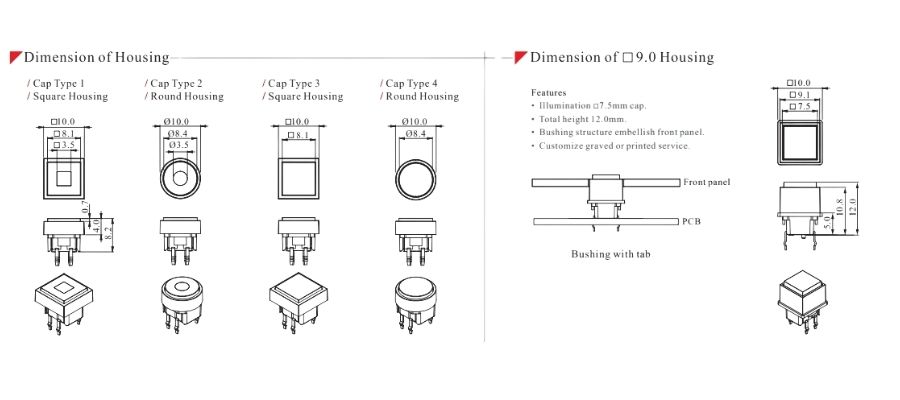

Dimension of Housing & 9.0 Housing

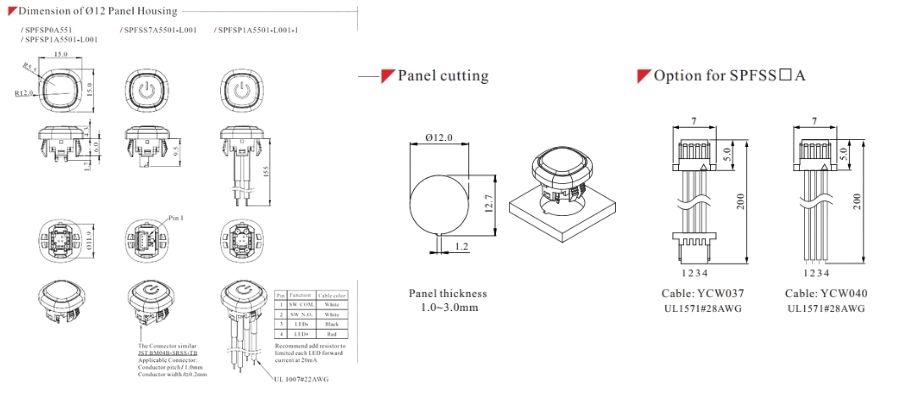

Dimension of Ø12 Panel Housing cutting Option for SPFSS□A

Download

SPF Tactile Switch 6 Smart Cap use for SPF Tactile Switch 9 Smart Cap use for Adapter + SPF Tactile Switch 12 Smart Cap use for Adapter + SPF Tactile Switch Adapter smart cap use for SPF Tactile Switch

Sample Order

Module
Part No
Description

SPFSP1541T
- Tactile Switch
- DIP terminal
- Red LED
- Black housing
- White diffuser & flat Clear cap
TWD 47

- +

SPFSP1A5501-L001-1
- Tactile Switch
- dia. 12mm Panel housing
- Red LED
- Paint Black cap with power marking
- with cable UL1007 #22AWG
TWD 120

- +

SPFSS7A5501-L001 + YCW037
- Tactile Switch
- dia. 12mm Panel housing
- Blue LED
- Paint Black cap with power marking
- Include YCW037 cable, L: 200mm
TWD 172

- +

*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
*All products comply with RoHs and REACH.
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
