SPD5K2 Multiway Push Button Switch
- Supports multi-function navigation
- Reliable long-life switch performance
- Customizable laser-engraved marking
- Switch pins and LED pins can be controlled separately
- Application: industrial equipment, test instrument
- General Specifications
- Circuit/Contacts SPST*5 Momentary
- Switching rating 50mA @ 12V DC (Max.)
- Terminal Connector
- Total travel 0.3mm ± 0.1mm
- Operating force 220gf ± 50gf
- Mechanical life 1,000,000 cycles Min.
- Front protection IP4X
- Illumination pervious to light
- Materials
- Cap/Lens Polycarbonate (PC)
- Stem/Reflector Polyamide (PA)
- Base/Housing Polyamide (PA)
- Terminal Phosphor bronze (PBS) with gold plating
What’s SPD5K2 Multiway Push Button Switch?
SPD5K2 is a multiway push button switch, module design of 5 illuminated push button switches, the cap is marked and light-transmissive, you can also customize the symbols. Just plug in the electronic wires and you can set the device functions. Suit for 1U case device.

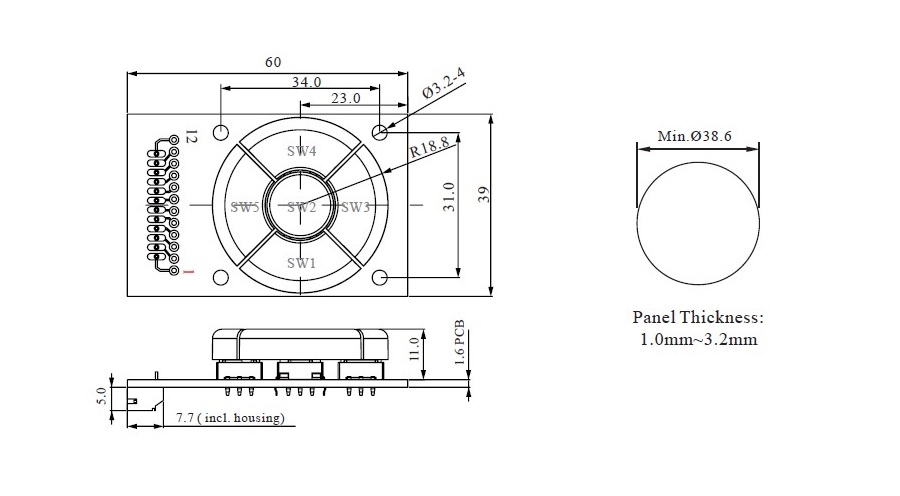

Dimension & Panel cutting for SPD5K2 Multiway Push Button Switch
How to use SPD5K2 multiway push button switch? The panel thickness of device is during 1.0mm to 3.2mm, and cutting dia. 38.6mm Min., put into and tighten the screws.

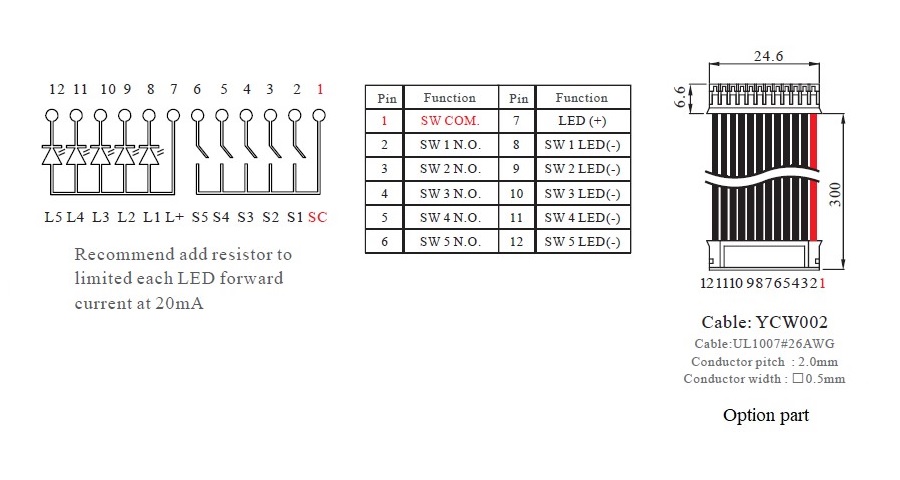

Contact configuration & option part cable for SPD5K2 Multiway Push Button Switch
The terminal pins of LEDs and switches are separated for individual setting and control, the LED and switch each have a common pin. One SPD5K2 LED multiway push button switch uses one YCW002 cable to connect device.
