SPD5K Multiway Push Button Switch

Supports multi-function navigation
Reliable long-life switch performance
Customizable laser-engraved marking
Switch pins and LED pins can be controlled separately
Application: industrial equipment, audio mixing console

General Specifications
Circuit/Contacts SPST*5 Momentary
Switching rating 50mA @ 12V DC (Max.)
Terminal Connector
Total travel 0.3mm ± 0.1mm
Operating force 220gf ± 50gf
Mechanical life 1,000,000 cycles Min.
Front protection IP4X
Illumination pervious to light

Materials
Cap/Lens Polycarbonate (PC)
Stem/Reflector Polyamide (PA)
Base/Housing Polyamide (PA)
Terminal Connector

What’s SPD5K Multiway Push Button Switch?

SPD5K is a multiway push button switch, module design of 5 illuminated push button switches, the cap is marked and light-transmissive, you can also customize the symbols. Just plug in the electronic wires and you can set the device functions.

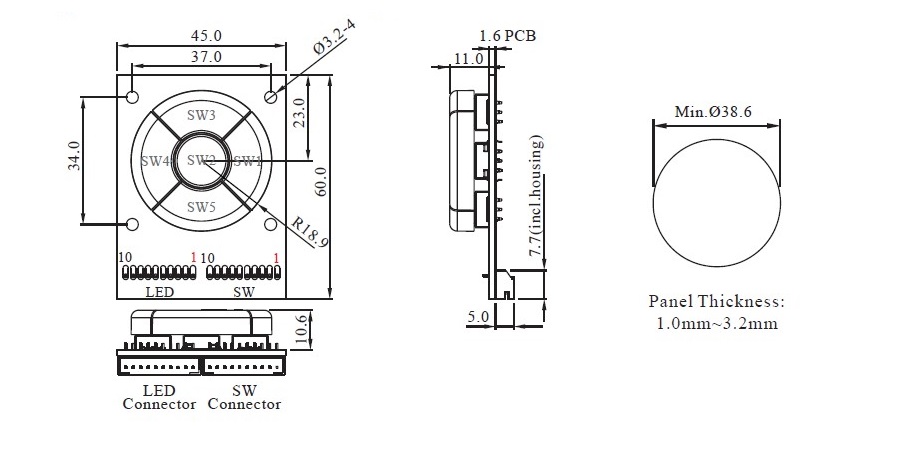

Dimension & Panel cutting for SPD5K Multiway Push Button Switch

How to use SPD5K multiway push button switch? The panel thickness of device is during 1.0mm to 3.2mm, and cutting dia. 38.6mm Min., put into and tighten the screws.

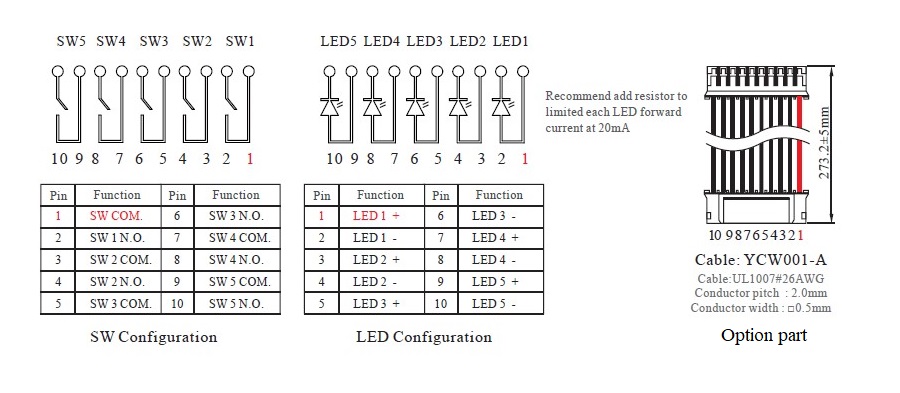

Contact configuration & option part cable for SPD5K Multiway Push Button Switch

The terminal pins of LEDs and switches are separated for individual setting and control, one SPD5K LED multiway push button switch must to connect two YCW001-A cable.

Video

Download

SPD5K Multiway Push Button Switch

Sample Order

Module
Part No
Description

SPD5K-AM006+YCW001-Ax2
- Multiway Push Button Switch
- 5 switches on the PCB board
- Black cap and Red LED
- Center button "Enter" marking and arrow around
- Include YCW001-A cable x 2, L: 273.2mm
TWD 1,080

- +

SPD5K-AM014+YCW001-Ax2
- Multiway Push Button Switch
- 5 switches on the PCB board
- White cap and Blue LED
- Center button "Enter" marking and arrow around
- Include YCW001-A cable x 2, L: 273.2mm
TWD 1,180

- +
