SPD5K
- 5-way navigation switch design
- Individual LED illumination per switch
- Easy integration into equipment
- Custom legends improve user clarity
- Application: measurement instrument, smart home
- General Specifications
- Circuit/Contacts SPST*5 Momentary
- Switching rating 50mA @ 12V DC (Max.)
- Terminal Connector
- Total travel 0.3mm ± 0.1mm
- Operating force 220gf ± 50gf
- Mechanical life 1,000,000 cycles Min.
- Front protection IP4X
- Illumination pervious to light
- Materials
- Cap/Lens Polycarbonate (PC)
- Stem/Reflector Polyamide (PA)
- Base/Housing Polyamide (PA)
- Terminal Phosphor bronze (PBS) with gold plating
What’s SPD5K 5-way Navigation Push Button Switch?

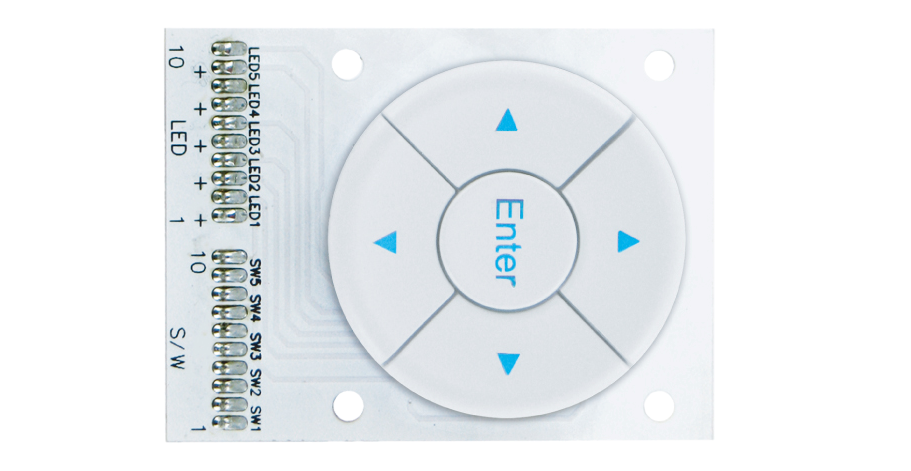

SPD5K is a 5-way navigation push button switch, module design of 5 illuminated push button switches, the cap is marked and light-transmissive, you can also customize the symbols. Just plug in the electronic wires and you can set the device functions.

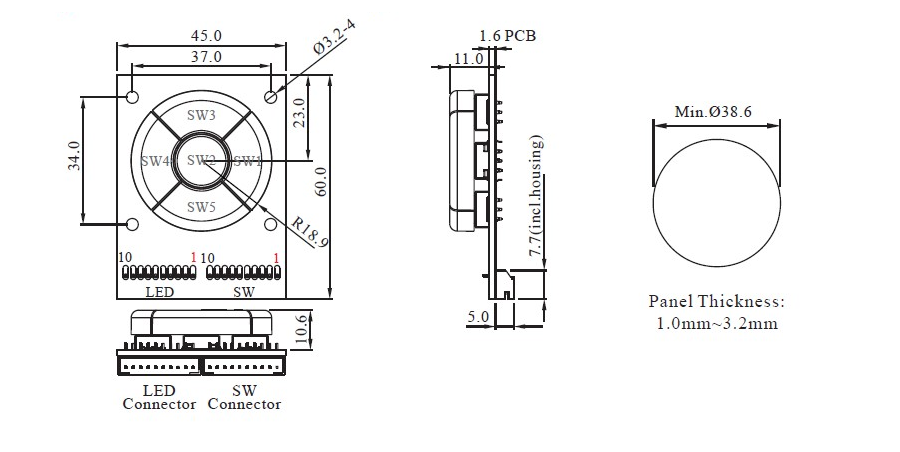

Dimension & Panel cutting for SPD5K 5-way Navigation Push Button Switch
How to use SPD5K 5-way navigation push button switch? The panel thickness of device is during 1.0mm to 3.2mm, and cutting dia. 38.6mm Min., put into and tighten the screws.

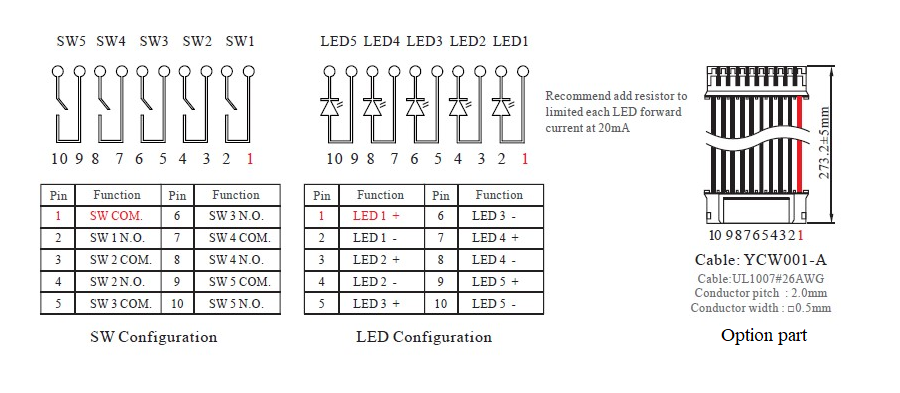

Contact configuration & option part cable for SPD5K 5-way Navigation Push Button Switch
The terminal pins of LEDs and switches are separated for individual setting and control, one SPD5K LED 5-way navigation push button switch must to connect two YCW001-A cable.
Video
Sample Order
- Module
- Part No
- Description
-
- SPD5K-AM006+YCW001-Ax2
-
- Black cap with arrow around and center button laser engrave "Enter"
- 5 individual Red LED tactile switches
- include wire cable (L: 273.2mm)*2
-
TWD 1,080
- +
-
- SPD5K-AM014+YCW001-Ax2
-
- White cap with arrow around and center button laser engrave "Enter"
- 5 individual Blue LED tactile switches
- include wire cable (L: 273.2mm)*2
-
TWD 1,180
- +
-
.png)
- SPD5K-AM006
-
- Black cap with arrow around and center button laser engrave "Enter"
- 5 individual Red LED tactile switches
- not include wire
-
TWD 760
- +
-
- SPD5K-AM014
-
- White cap with arrow around and center button laser engrave "Enter"
- 5 individual Blue LED tactile switches
- not include wire
-
TWD 860
- +
-
- YCW001-A for SPD5K wire
-
- wire for SPD5K 5-way navigation switch
- 1 SPD5K module require 2 wires
- 10 pins, length 273.2mm
- Female connector on the end
-
TWD 160
- +
