SPD0 & SPD2 & SPDG tactile switch with addressable LED
- SHANPU low profile illumination tact switch
- Switch combined with RGB + IC LED (addressable LED)
- Several cap styles can choose
- Provide customized cap marking service
- General Specifications
- Circuit/Contacts SPST (push ON)
- Switching rating 12V DC @ 50mA
- Terminal Through hole(TH) or Surface Mounting Divice(SMD)
- Total travel 0.3mm ± 0.1mm
- Operating force 220gf ± 50gf
- Mechanical life 1,000,000 cycles min.
- Front protection IP4X
- Illumination R or Y or GN or WH or BU or RGB LED
- Materials
- Cap/Lens PC(Polycarbonate)
- Stem/Reflector PA(Polyamide)
- Base/Housing LCP
- Terminal PBS (Phosphor bronze) with Gold plating
- Action dome Stainless steel with silver plating

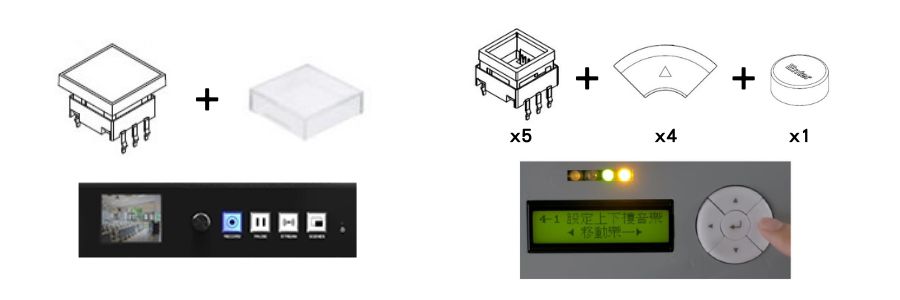

What help can SHANPU's SPD LED tactile switch bring to you?
SHANPU's SPD LED tactile switch have six body sizes and can be matched with more than 30 cap sharps, SPD0 tact switch with 9 Smart Cap, SPD2 tact switch with 12 Smart Cap, and SPDG tact switch with 11.5 Smart Cap.
The tactile switch series have Through Hole(DIP) and Surface Mount Device(SMD) terminal type, combined RGB + IC LED(addressable LED), You can use on audio or industrial control or smart home and more type device.

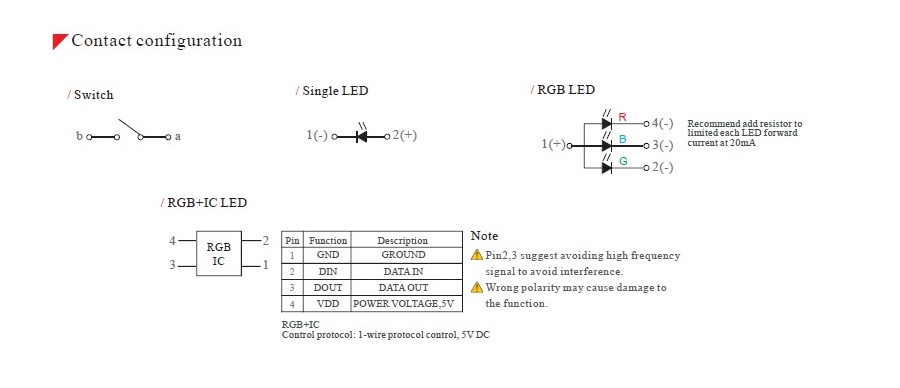

How to contact the SPD0 & SPD2 & SPDG illuminated tactile switch?
SHANPU's SPD tact switch is a mechanical contact and is separate from LED pins, the illuminated switch with single LED or RGB LED or RGB + IC LED(addressable LED), please follow below contact circuit and configuration.
