SPD

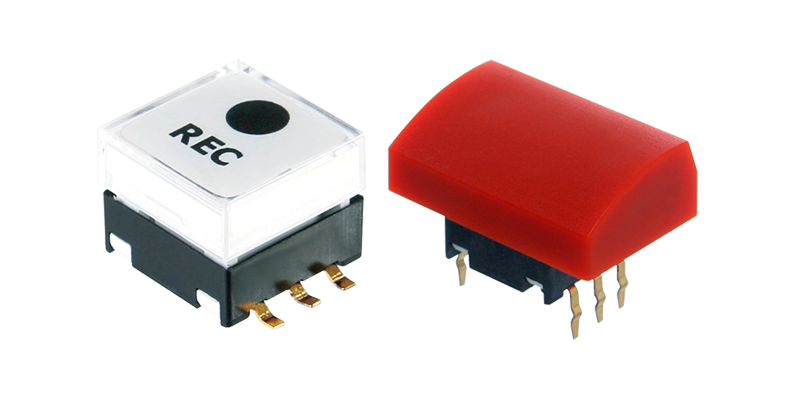

- Low profile tactile switch with RGB LED
- Switch combined with RGB + IC LED (addressable LED)
- Several cap styles can choose
- Provide various customized services
- Application: smart home, music synthesizer
- General Specifications
- Circuit/Contacts SPST (push ON)
- Switching rating 50mA @ 12V DC max
- Terminal Through hole (TH) or Surface Mounting Divice (SMD)
- Total travel 0.3mm ± 0.1mm
- Operating force 220gf ± 50gf
- Mechanical life 1,000,000 cycles Min.
- Illumination RGB LED, RGB + IC LED
- Materials
- Cap/Lens Polycarbonate (PC)
- Stem/Reflector Polyamide (PA)
- Base/Housing LCP
- Terminal Phosphor bronze (PBS) with gold plating
- Action dome Stainless steel with silver plating
What’s SPD RGB LED Tactile Switch?
SHANPU's SPD illuminated tactile switch have six body sizes and can be matched with more than 30 cap sharps, SPD0 tactile switch with 9 Smart Cap, SPD1 rounded corners tact switch with YCA1974 cap, SPD2 tactile switch with 12 Smart Cap, SPD3 rounded corners tact switch with YCA1964 cap, and SPDG tactile switch with 11.5 Smart Cap.

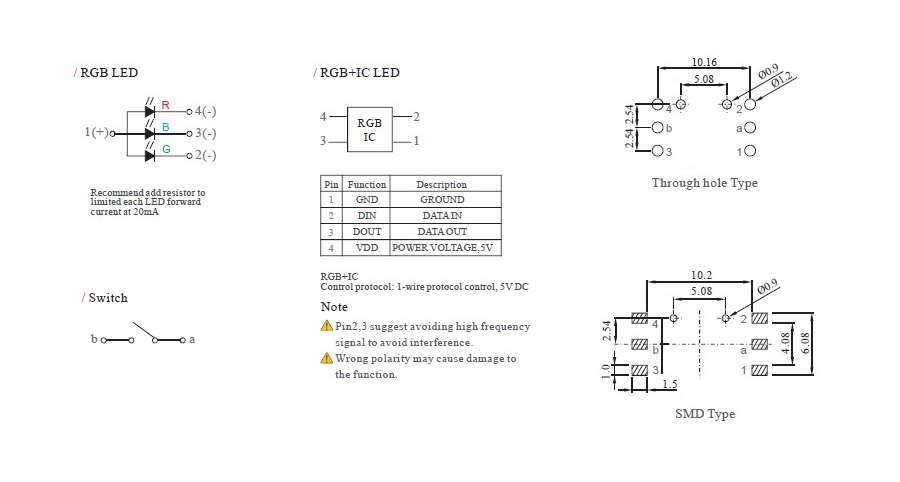

Contact configuration & PCB layout for SPD RGB LED Tactile Switch
SPD is a mechanical contact and is separate from LED pins, the illuminated switch with RGB LED or RGB + IC LED (addressable LED). And it has Through Hole (TH) and Surface Mount Device (SMD) terminal type.

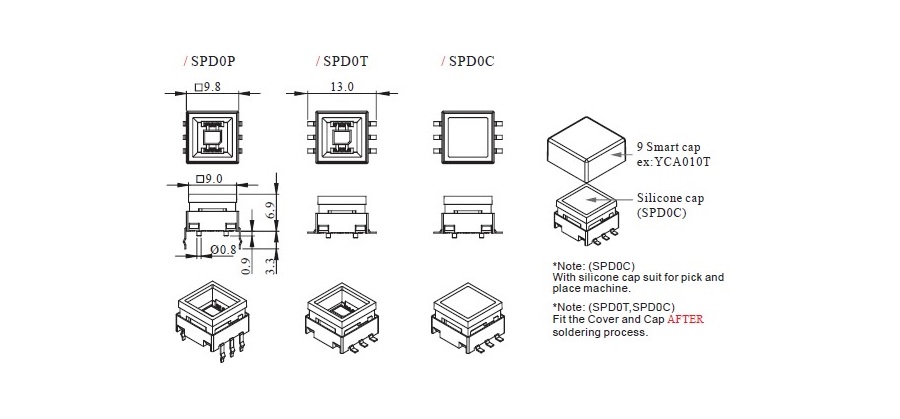

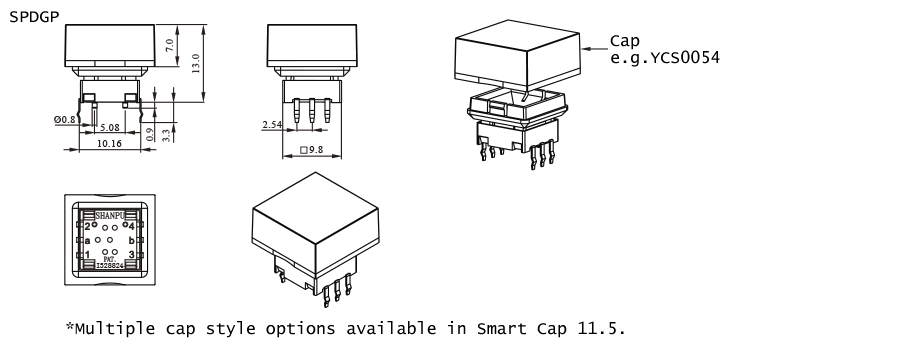

Dimension for SPD0 RGB LED Tactile Switch
SPD0 is one of SPD series, the stem (actuator) size is 9×9mm (9mm sq.), it can match SHANPU’s 9 Smart Cap. There are two terminal types, TH and SMD.

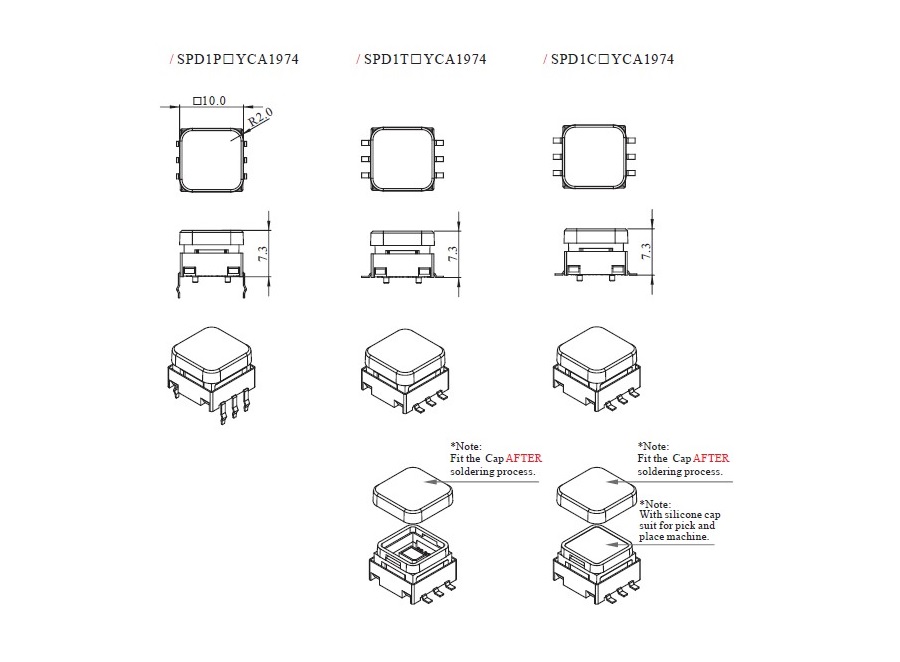

Dimension for SPD1 RGB LED Tactile Switch
SPD1 is one of SPD series, the stem (actuator) rounded square, it only can match SHANPU’s YCA1974 cap. There are two terminal types, TH and SMD.

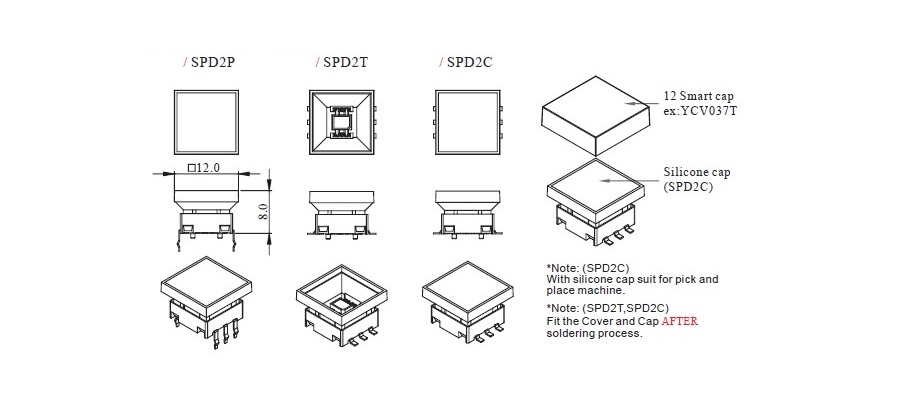

Dimension for SPD2 RGB LED Tactile Switch
SPD2 is one of SPD series, the stem (actuator) size is 12×12mm (12mm sq.), it can match SHANPU’s 12 Smart Cap. There are two terminal types, TH and SMD.

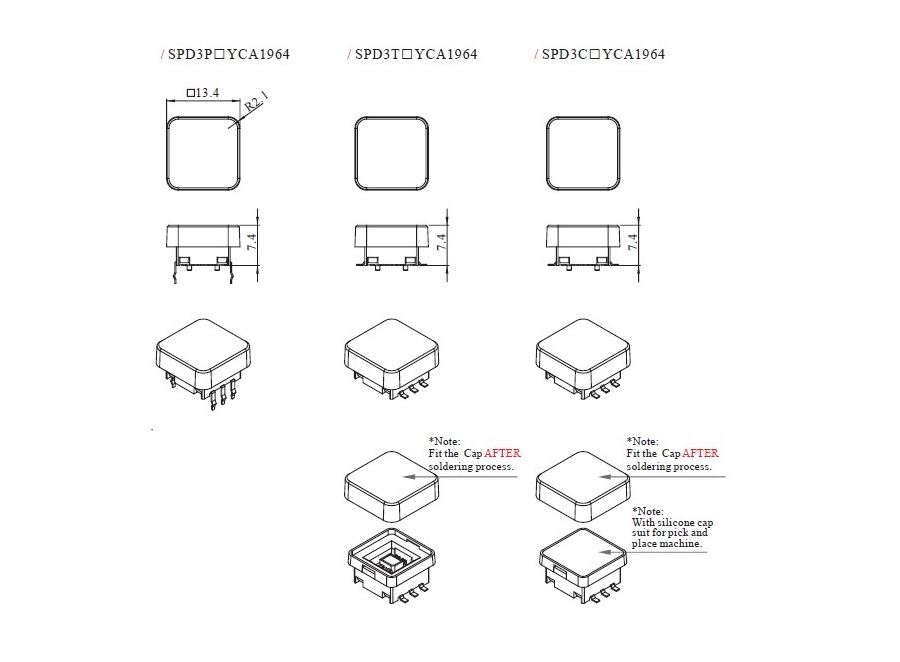

Dimension for SPD3 RGB LED Tactile Switch
SPD3 is one of SPD series, the stem (actuator) rounded square, it only can match SHANPU’s YCA1964 cap. There are two terminal types, TH and SMD.

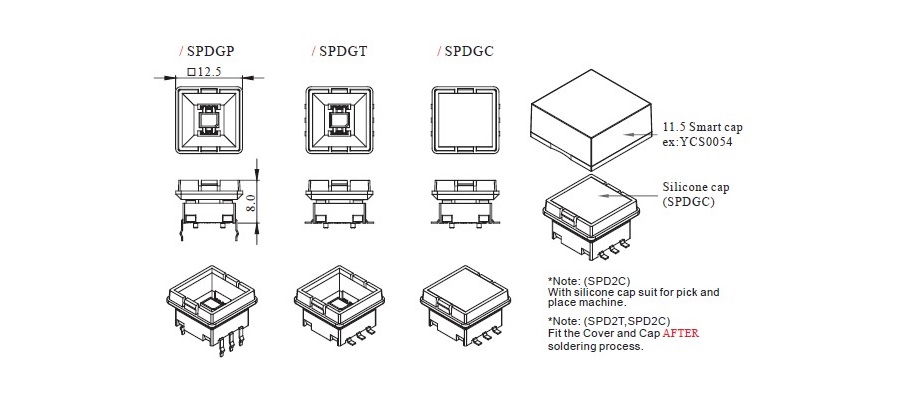

Dimension for SPDG RGB LED Tactile Switch
SPDG is one of SPD series, the stem (actuator) size is 11.5×11.5mm (11.5mm sq.), it can match SHANPU’s 11.5 Smart Cap. There are two terminal types, TH and SMD.

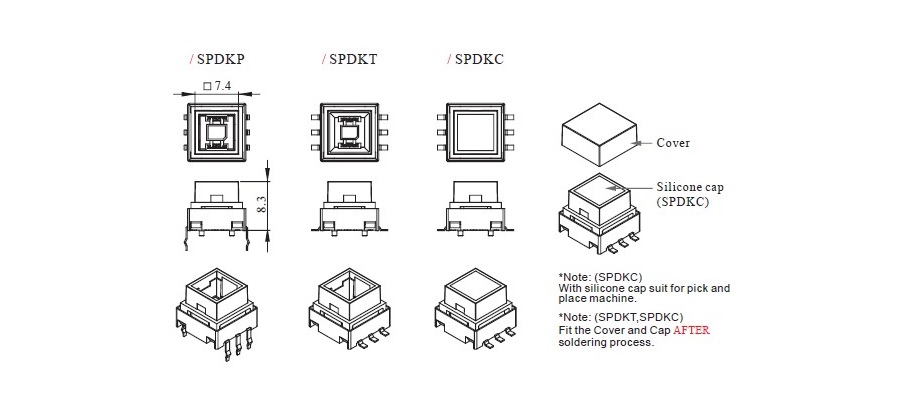

Dimension for SPDK RGB LED Tactile Switch
SPDK’s actuator size is the smallest in the SPD series, the stem (actuator) size is 7.4×7.4mm (7.4mm sq.), select the dedicated cap according to HOW TO ORDER. There are two terminal types, TH and SMD.
