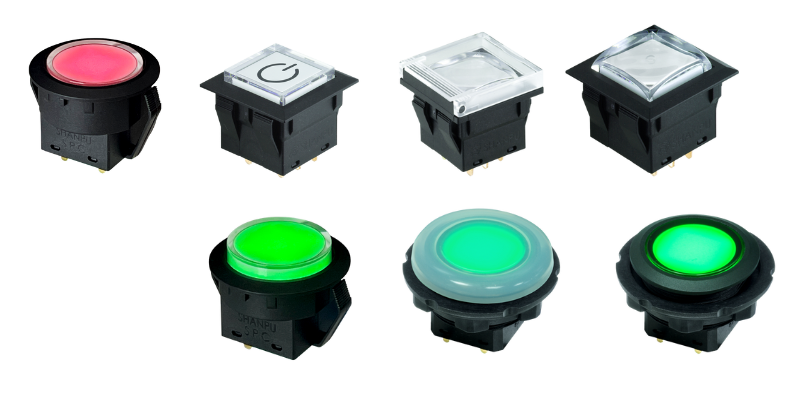

SPCGS
- Rated for 3A @ 125/250V AC or 3A @ 30V DC
- Waterproof front panel(IP4X / IPX7)
- LED illumination options (Red, Green, Blue, RGB)
- Applications: Used in industrial control, consumer electronics, and outdoor panels
- General Specifications
- Circuit/Contacts SPDT(1C) or DPDT(2C)
- Switching rating 3A 125/250V AC or 3A 30VDC
- Terminal Soldering pin
- Total travel 2.3mm ± 0.5mm
- Operating force Single pole: 190gf ± 50gf / Double pole: 200gf ± 50gf
- Mechanical life Momentary: 1,000,000 cycles min. / Alternate: 200,000 cycles min.
- Front protection IP4X,IPX7
- Illumination illuminated
- Materials
- Cap/Lens PC(Polycarbonate)
- Stem/Reflector PA(Polyamide)
- Base/Housing PA(Polyamide)
- Terminal Brass with gold plating
SPCGS-Contact configuration
Q: What makes the SPCGS series suitable for outdoor or industrial use?
A: Its waterproof front panel, high current rating, and LED options make it ideal for demanding environments.

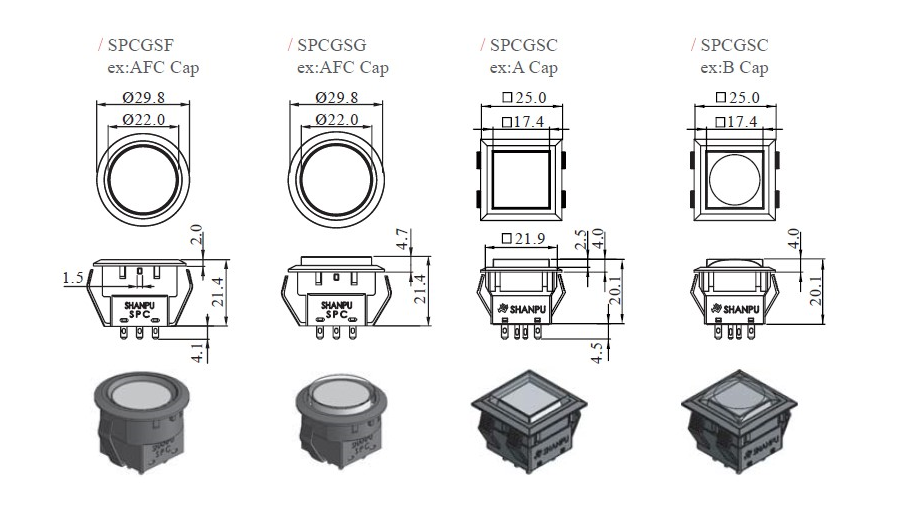

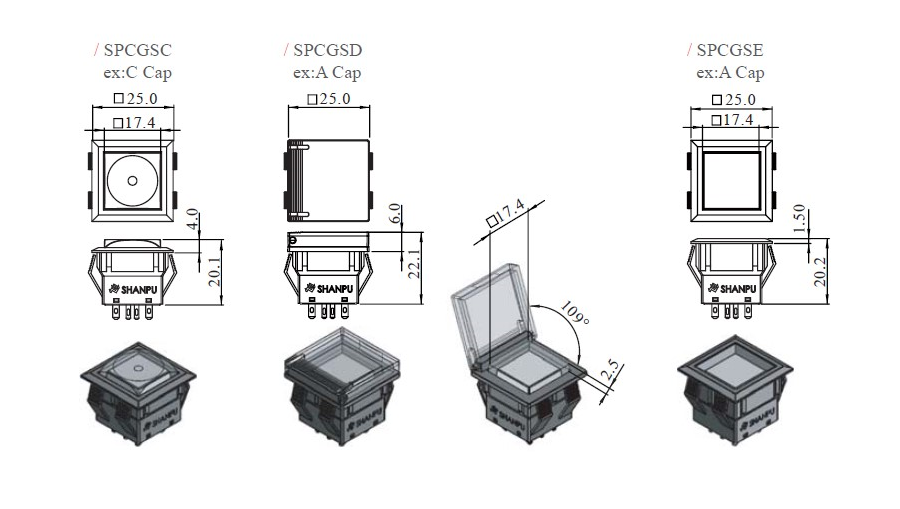

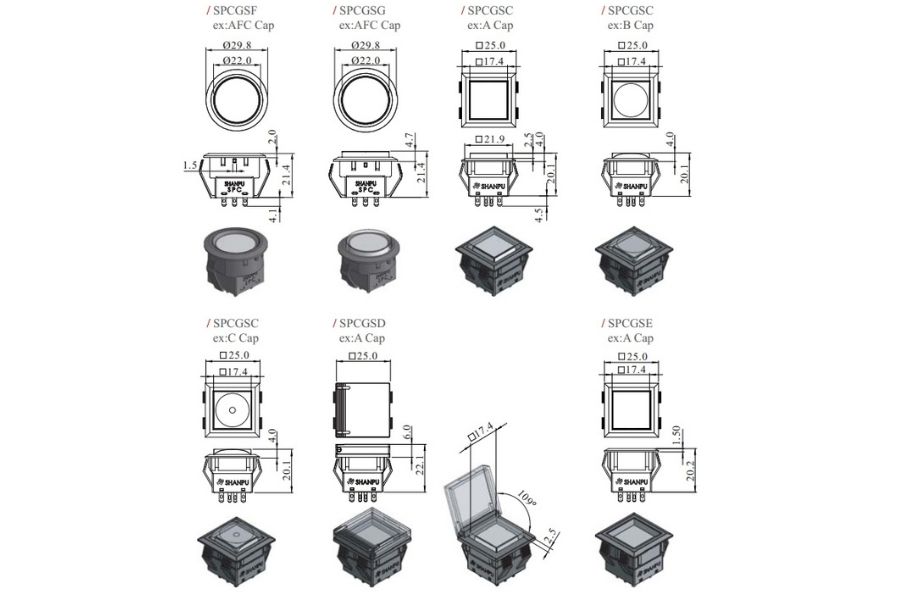

SPCGSC、SPCGSD、SPCGSE、SPCGSF、SPCGSG -Diagram
SPCGS series features waterproof, panel-mount push button switches with high current capacity, RGB LED illumination options.
SHANPU’s SPC Waterproof Push Button Switch, push button switch manufacturer made in taiwan.

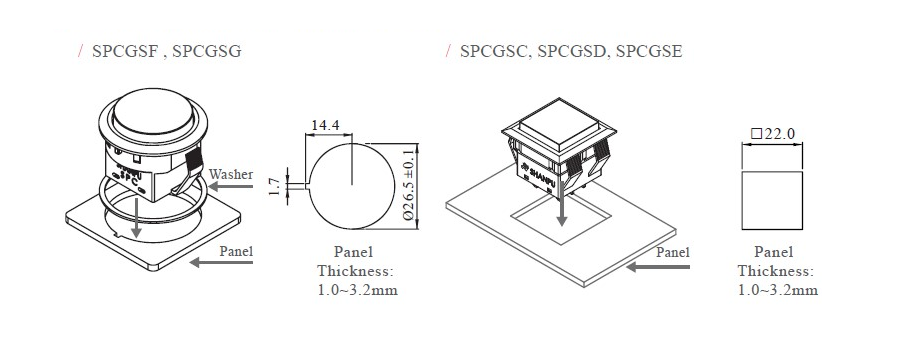

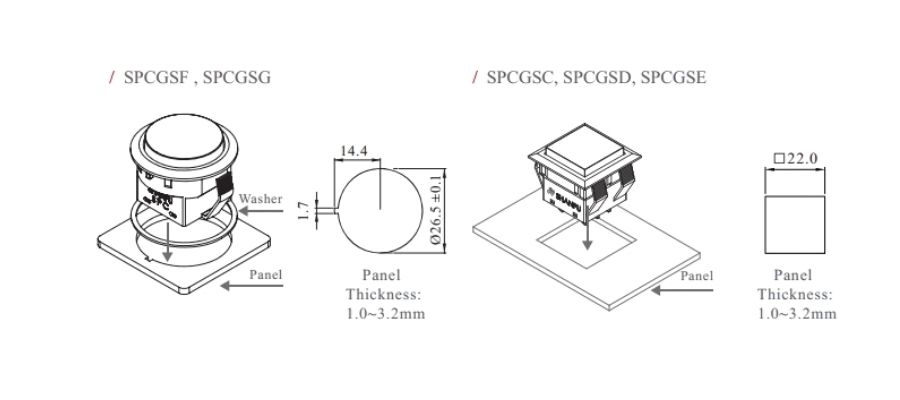

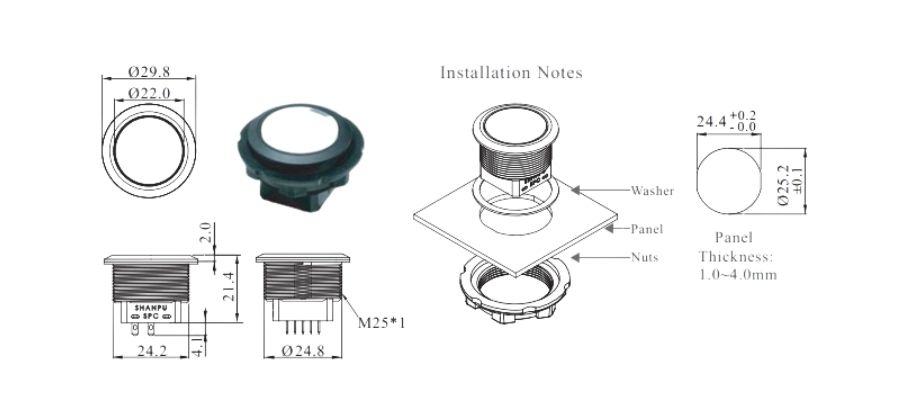

SPCGSC、SPCGSD、SPCGSE、SPCGSF、SPCGSG Panel Cutting & Installation Notes
SPCGSC、SPCGSD、SPCGSE、SPCGSF、SPCGSG Panel Mount Push Button Switch factory-Taiwan-SHANPU
SPCGSH-Diagram&Panel cutting
Panel Mount Push Button Switch factory-Taiwan-SHANPU

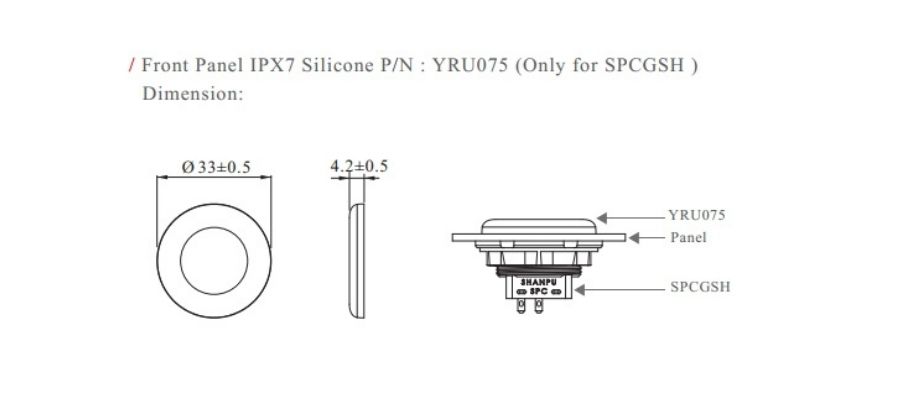

SPCGSH- Option
Easily installed round panel lock IPX7.

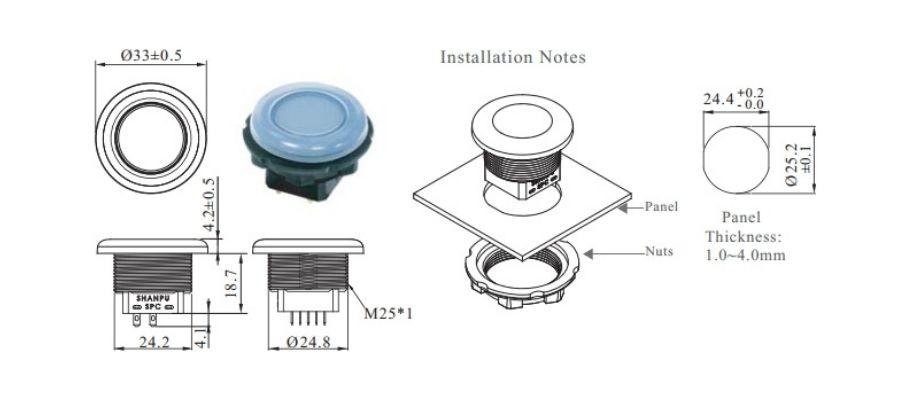

SPCGSJ-Diagram&Panel cutting
Waterproof Push Button Switch IPX7.
