SPCG LED Push Button Switch
- Full-surface LED illumination (Red, Green, Blue, RGB)
- Enhances visibility and user interaction
- Suitable for dark environments or visual signaling
- Applications: Used in audio systems, dashboards, and smart devices
- General Specifications
- Circuit/Contacts SPDT(1C) or DPDT(2C)
- Switching rating 3A 125/250V AC or 3A 30VDC
- Terminal Through hole(TH)
- Total travel 2.3mm ± 0.5mm
- Operating force Single pole: 190gf ± 50gf / Double pole: 200gf ± 50gf
- Mechanical life Momentary 1,000,000 cycles min./ Alternate 200,000 cycles min.
- Front protection IP4X
- Illumination illuminated
- Materials
- Cap/Lens PC(Polycarbonate)
- Stem/Reflector PA(Polyamide)
- Base/Housing PA(Polyamide)
- Terminal Brass with gold plating
SPCG-Contact configuration
Q: Can I use RGB lighting with the SPCG LED switch?
A: Yes, the SPCG LED version supports RGB and single-color LEDs for full-surface illumination.

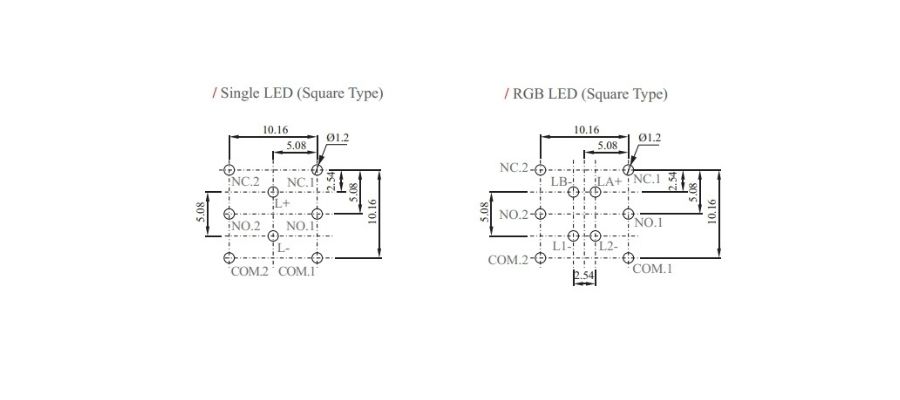

SPCG- PCB Layout
SPDT/DPDT Through Hole Lead Push Button Switch

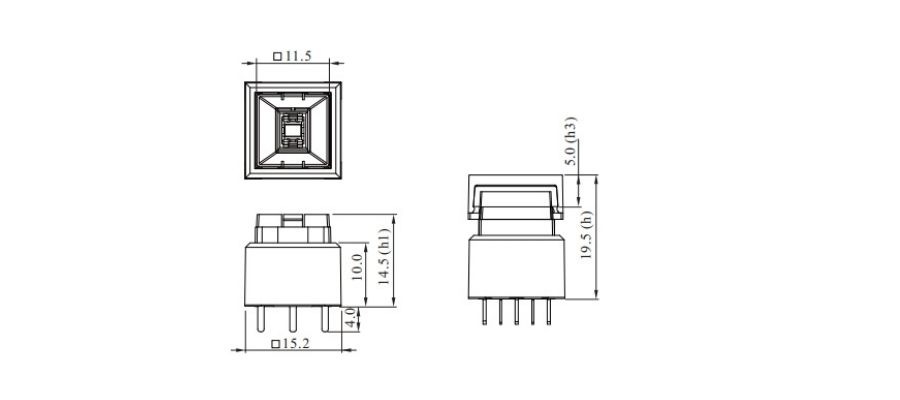

SPCG-Dimension
Choose from multiple cap styles to seamlessly pair with the 11.5 Smart Cap for versatile applications.
