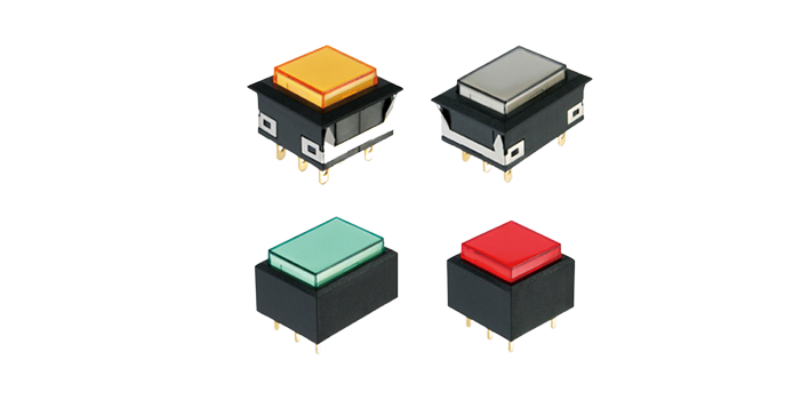

- Rated for 3A @ 125/250V AC
- Available in SPDT and DPDT configurations
- Multiple mounting options (PCB, panel)
- Applications: Ideal for industrial control, appliances, instrumentation
- General Specifications
- Circuit/Contacts SPDT(1C) or DPDT(2C)
- Switching rating 3A 125/250V AC or 3A 30VDC
- Terminal Through hole(TH) or soldering pin
- Total travel 2.3mm ± 0.5mm
- Operating force Single pole: 190gf ± 50gf / Double pole: 200gf ± 50gf
- Mechanical life Momentary 1,000,000 cycles min./ Alternate 200,000 cycles min.
- Front protection IP4X
- Illumination illuminated
- Materials
- Cap/Lens PC(Polycarbonate)
- Stem/Reflector PA(Polyamide)
- Base/Housing PA(Polyamide)
- Terminal Brass with gold plating

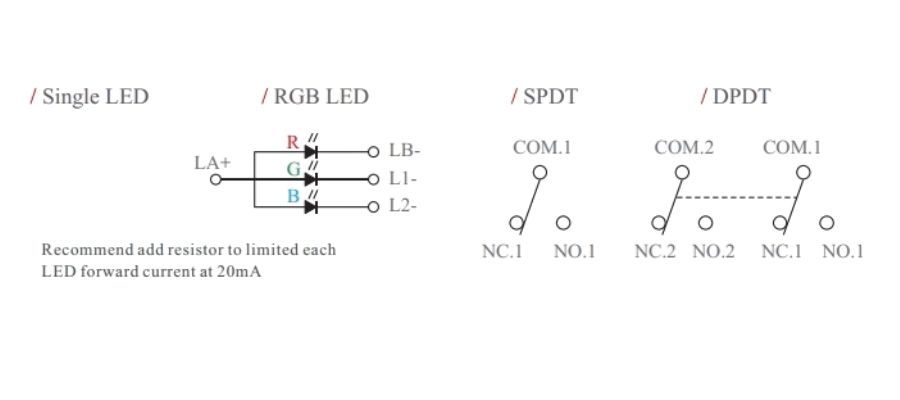

SPC-Contact configuration
Q: What makes the SPC Series suitable for a wide range of applications?
A: The SPC Series offers high current capacity, multiple mounting options, and both momentary and latching functions, making it ideal for industrial, consumer, and commercial uses.

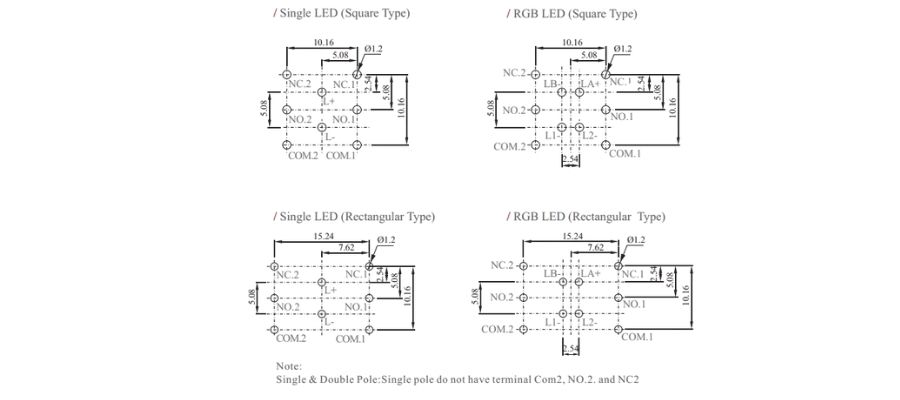

SPC- PCB Layout
SPDT/DPDT Through Hole Lead Push Button Switch

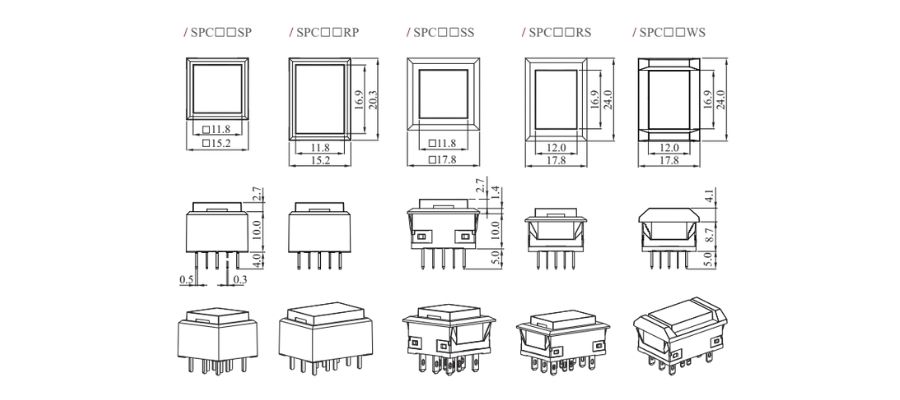

SPC-Dimension
SPDT/DPDT Through Hole Lead Push Button Switch, Panel Mount Push Button Switch.

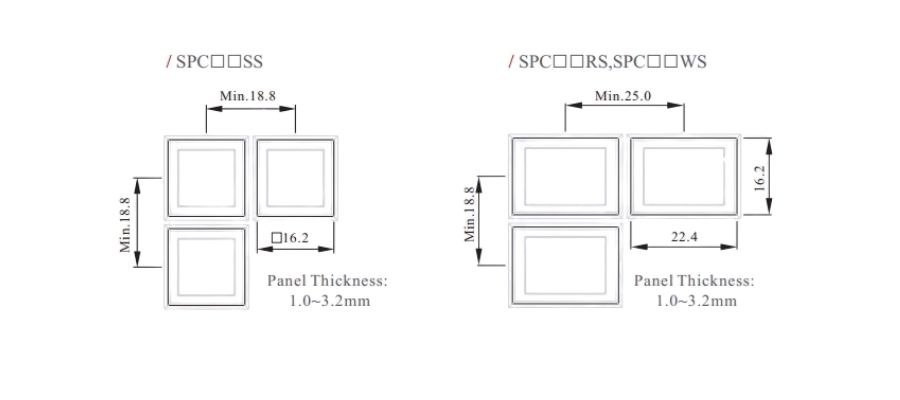

SPC-Panel cutting
SPDT/DPDT Panel Mount Push Button Switch manufacturer made in Taiwan-SHANPU

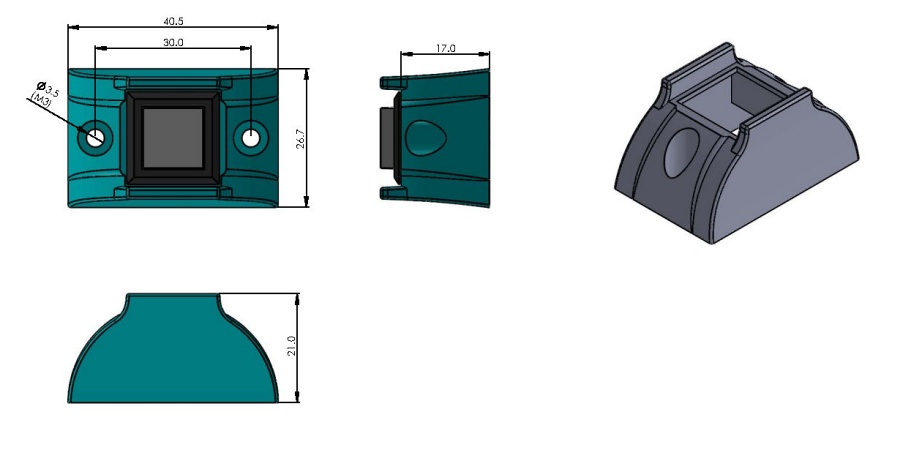

3D print enclosure box for SPC panel mounting square version
Download the STL file at https://shanpu.page.link/Eit5
.jpg)

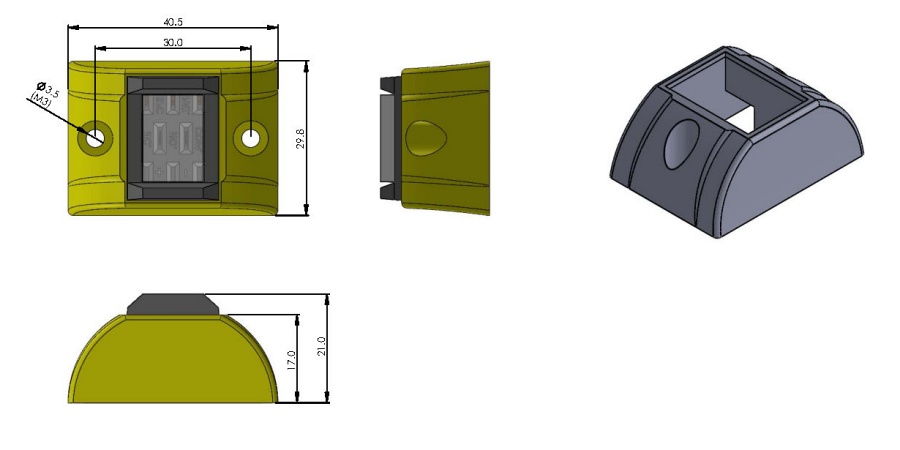

3D print enclosure box for SPC panel mounting Rectangular version
Download STL file at https://shanpu.page.link/bjYi
.jpg)
