SPA Tactile Switch
- 2 viewing window
- Available in various LED colors
- Tactile feel SPST contact

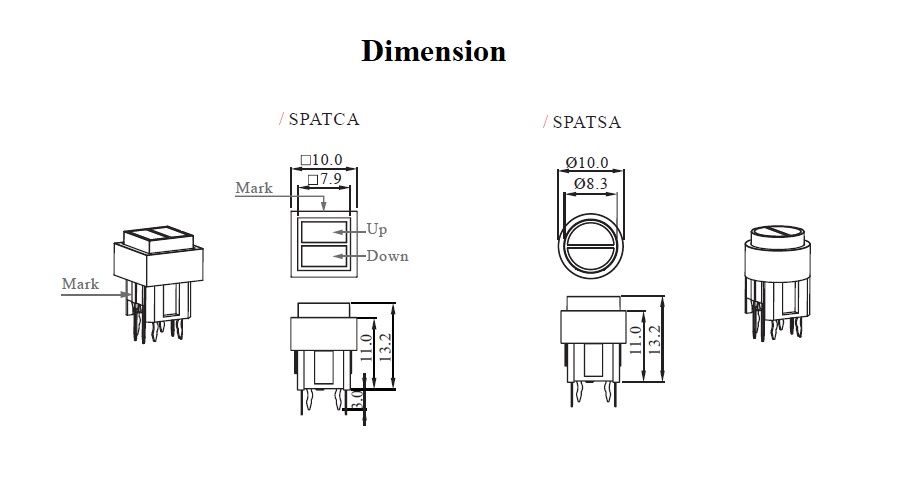

- Round or square version
- Application: audio-visual equipment, media
- General Specifications
- Circuit/Contacts SPST
- Switching rating 12V DC @ 50mA
- Terminal Through hole (TH)
- Total travel 0.3mm ± 0.2mm
- Operating force 180gf ± 80gf
- Mechanical life 800,000 cycles min.
- Illumination Red LED, Yellow LED, Green LED, White LED, Blue LED
- Materials
- Cap/Lens PC (Polycarbonate)
- Stem/Reflector POM (Polyoxymethylene)
- Base/Housing PA (Polyamide)
- Terminal Brass with Silver plating
Does SHANPU SPA switch provide tactile feedback for operators?
SPA tact switches feature SPST contact with precise tactile feedback, dual LED windows, and shape options, ensuring reliable performance across AV, media, broadcasting, automation, and smart home systems.

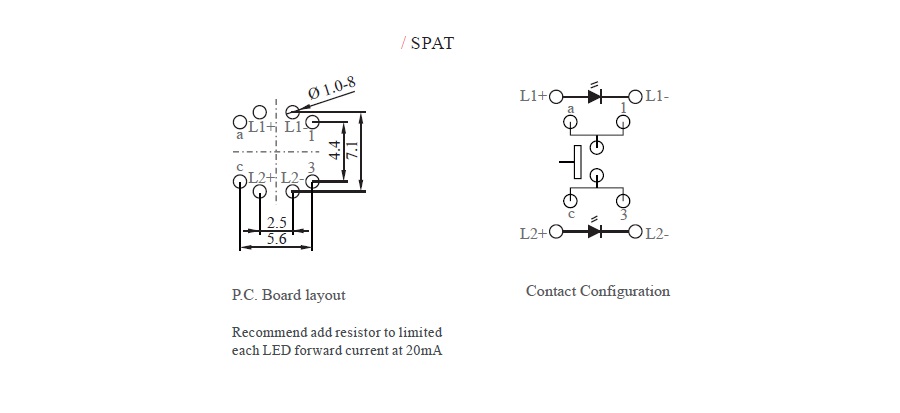

Contact configuration & PCB layout for SPA tactile switch.
SHANPU's SPA tact switch is a mechanical contact, illuminated switch with LED, please follow the contact circuit and configuration below.
Download
Sample Order
- Module
- Part No
- Description
-
- SPATCA2V4413
-
- Illuminated tactile switch
- SPST
- Square housing
- White (up) and white (down) cap
- Red LED (up) and Green LED (down)
-
TWD 62
- +
-
- SPATSA2V1212
-
- Illuminated tactile switch
- SPST
- Round housing
- Red (up) and yellow (down) cap
- Red LED (up) and yellow LED (down)
-
TWD 62
- +
