SPA LED Push Button Switch

  • Two separate viewing areas with multi-color LED lights
  • Operates in latching or momentary modes
  • Housing design
  • Round body or square frame available
  • Application: broadcasting, smart home and audio equipment
  • General Specifications
  • Circuit/Contacts DPDT
  • Switching rating 30V DC @ 100mA
  • Terminal Through hole (TH)
  • Total travel 2.5mm ± 0.5mm
  • Operating force 200gf ± 50gf
  • Mechanical life 10,000 cycles min.
  • Illumination Red LED, Yellow LED, Green LED, White LED, Blue LED
  • Materials
  • Cap/Lens PC (Polycarbonate)
  • Stem/Reflector POM (Polyoxymethylene)
  • Base/Housing PA (Polyamide)
  • Terminal Brass with Silver plating

Are SHANPU SPA switches available in different LED colors?

The SPA come with dual viewing windows, each supporting distinct LED colors, providing clear operation feedback in media and broadcasting equipment.

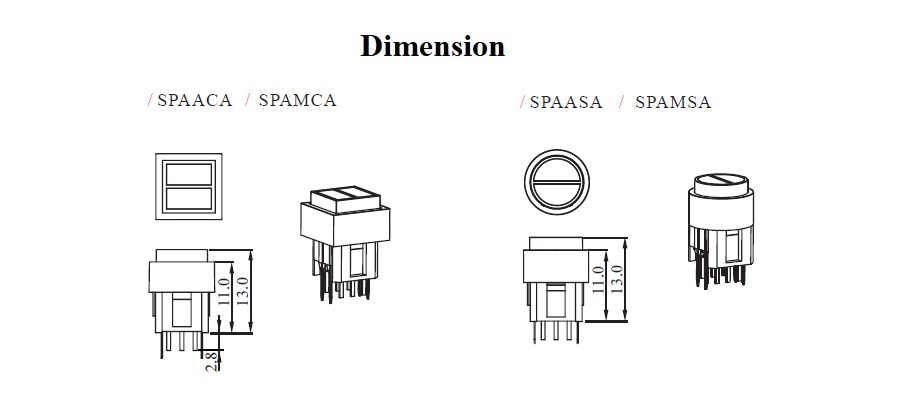

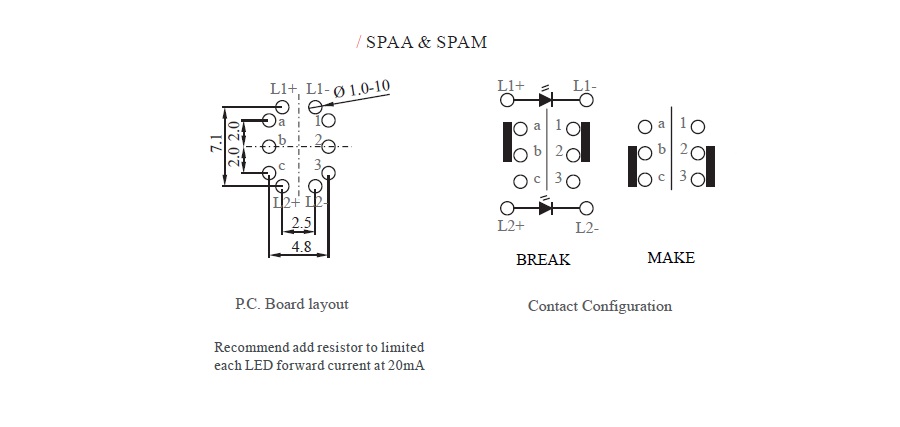

Contact configuration & PCB layout for SPA LED push button switch.

SHANPU's SPA push button switch is a mechanical contact, illuminated switch with LED, please follow the contact circuit and configuration below.

Download

Sample Order

  • Module
  • Part No
  • Description
  • SPAACA2V1313
    • LED Push Button Switch
    • Alternate type, DPDT
    • Square housing
    • Red (up) and green (down) cap
    • Red LED (up) and Green LED (down)
  • TWD 62
    - +
  • SPAMCA2V1313
    • LED Push Button Switch
    • Momentary type, DPDT
    • Square housing
    • Red (up) and green (down) cap
    • Red LED (up) and Green LED (down)
  • TWD 62
    - +
  • SPAASA2V1313
    • LED Push Button Switch
    • Alternate type, DPDT
    • Round housing
    • Red (up) and green (down) cap
    • Red LED (up) and Green LED (down)
  • TWD 62
    - +
  • SPAMSA2V1313
    • LED Push Button Switch
    • Momentary type, DPDT
    • Round housing
    • Red (up) and green (down) cap
    • Red LED (up) and Green LED (down)
  • TWD 62
    - +

*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
*All products comply with RoHs and REACH.
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
